SICK BEF Series Measuring Measuring Wheel, Solid Shaft Type, 8 mm Shaft
- RS Stock No.:
- 285-0896
- Mfr. Part No.:
- BEF-MR08200AK / 4084741
- Brand:
- SICK
Subtotal (1 unit)*
£51.59
(exc. VAT)
£61.91
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £51.59 |
*price indicative
- RS Stock No.:
- 285-0896
- Mfr. Part No.:
- BEF-MR08200AK / 4084741
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Measuring Wheel | |
| Encoder Technology | Measuring | |
| Series | BEF | |
| Shaft Type | Solid Shaft | |
| Shaft Diameter | 8mm | |
| Minimum Operating Temperature | -30°C | |
| Overall Depth | 17mm | |
| Standards/Approvals | RoHS | |
| Overall Height | 63.7mm | |
| Overall Width | 63.7mm | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Measuring Wheel | ||
Encoder Technology Measuring | ||
Series BEF | ||
Shaft Type Solid Shaft | ||
Shaft Diameter 8mm | ||
Minimum Operating Temperature -30°C | ||
Overall Depth 17mm | ||
Standards/Approvals RoHS | ||
Overall Height 63.7mm | ||
Overall Width 63.7mm | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- DE
Overview

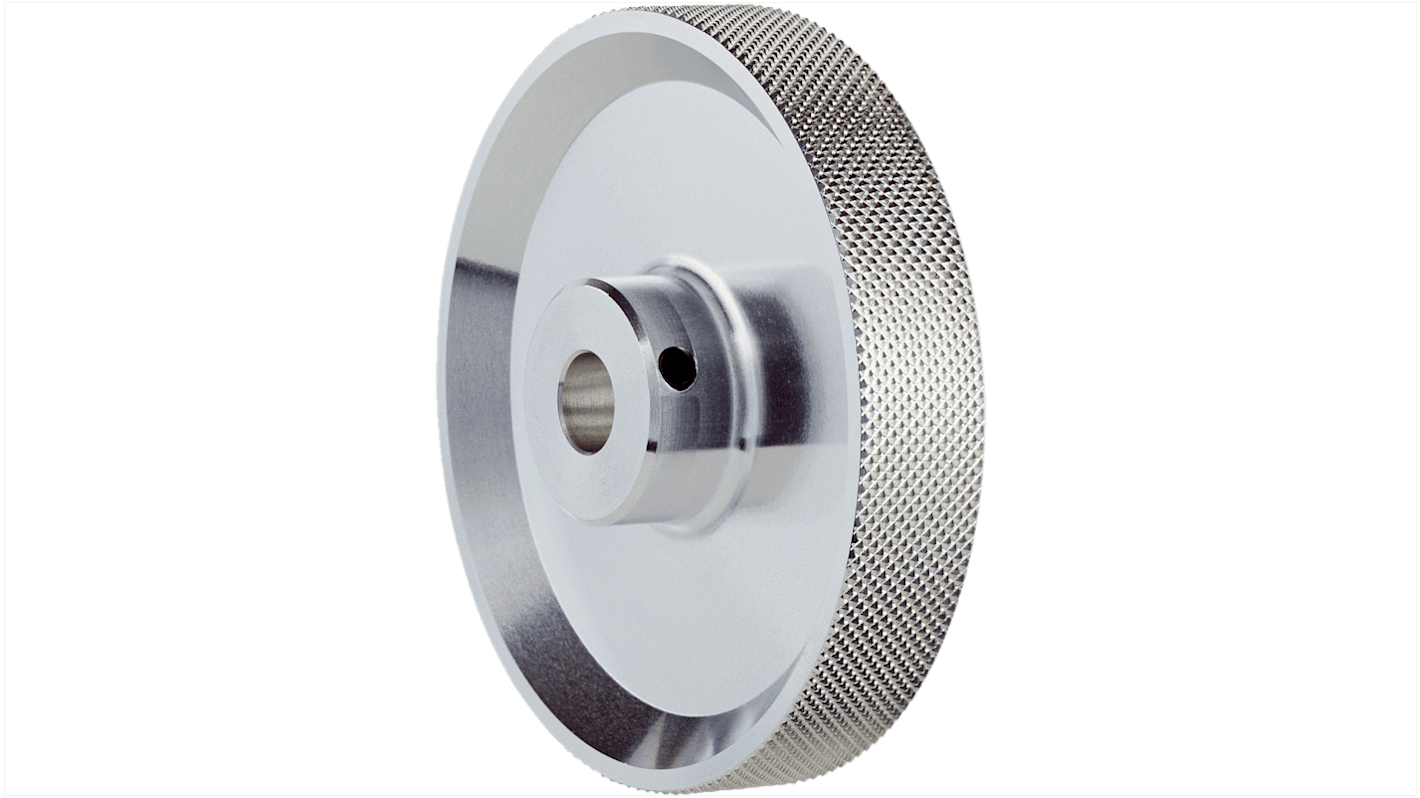

The Aluminium measuring wheel is designed for use with a 8 mm solid shaft and features a cross knurled aluminium surface. With a circumference of 200 mm, this measuring wheel is suitable for various applications, providing accurate measurements across different surfaces.
The measuring surface is compatible with cardboard, wood, textiles, vulcanized rubber and soft plastic. The moment of inertia for this measuring wheel is specified as 310 gcm².
