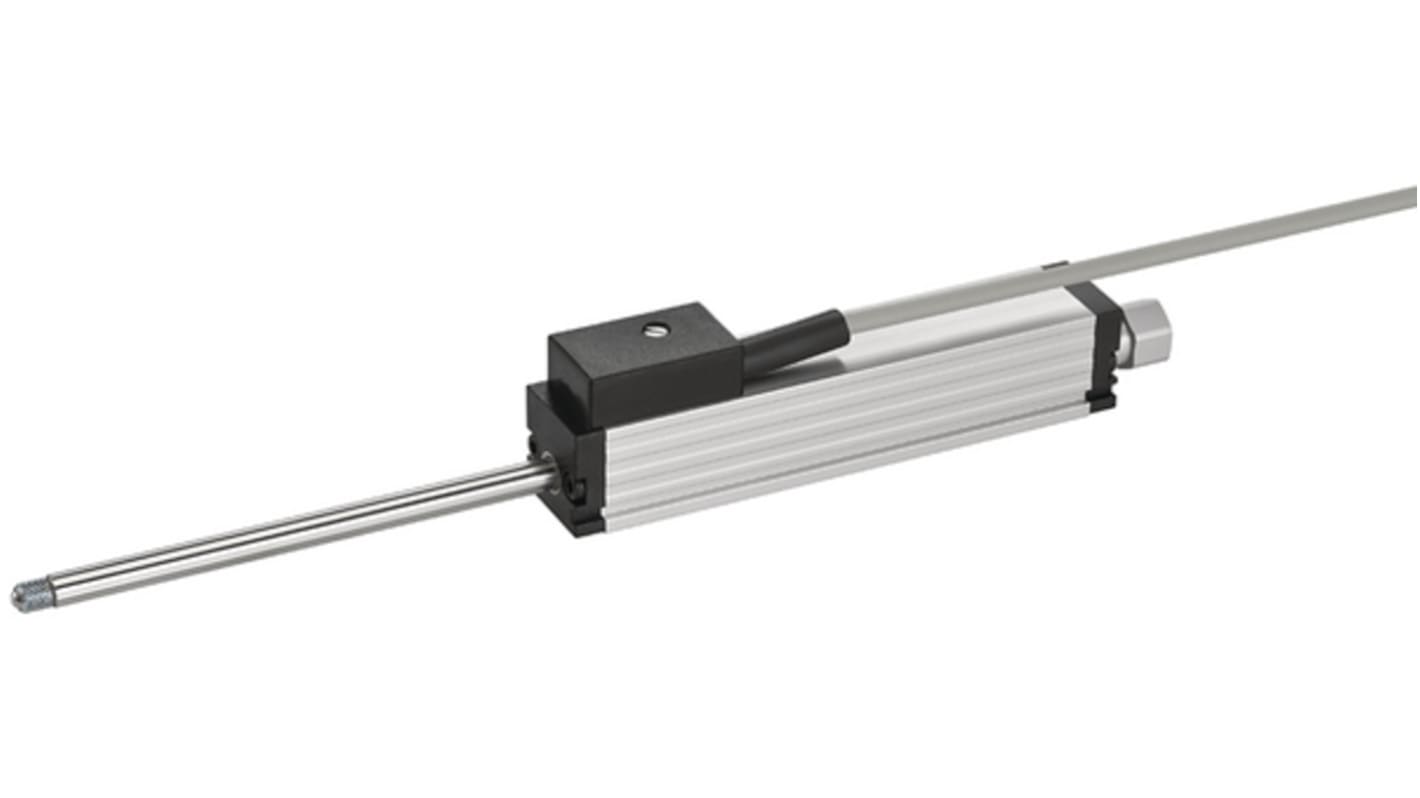

Novotechnik TR Series Linear Potentiometer Position Sensor 24V, Voltage Signal, Round Type
- RS Stock No.:
- 283-6111
- Distrelec Article No.:
- 164-90-428
- Mfr. Part No.:
- TR-0010
- Brand:
- Novotechnik
Subtotal (1 unit)*
£166.27
(exc. VAT)
£199.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 17 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £166.27 |
*price indicative
- RS Stock No.:
- 283-6111
- Distrelec Article No.:
- 164-90-428
- Mfr. Part No.:
- TR-0010
- Brand:
- Novotechnik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Novotechnik | |
| Encoder Technology | Linear Potentiometer | |
| Product Type | Position Sensor | |
| Series | TR | |
| Output Signal Type | Voltage | |
| Shaft Type | Round | |
| Stroke | 15 mm | |
| Terminal Type | Cable Terminal | |
| IP Rating | IP40 | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Overall Depth | 25mm | |
| Overall Height | 215mm | |
| Standards/Approvals | RoHS | |
| Overall Width | 100mm | |
| Maximum Operating Temperature | 100°C | |
| Mount Type | Clamp | |
| Switching Frequency | 20Hz | |
| Select all | ||
|---|---|---|
Brand Novotechnik | ||
Encoder Technology Linear Potentiometer | ||
Product Type Position Sensor | ||
Series TR | ||
Output Signal Type Voltage | ||
Shaft Type Round | ||
Stroke 15 mm | ||
Terminal Type Cable Terminal | ||
IP Rating IP40 | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Overall Depth 25mm | ||
Overall Height 215mm | ||
Standards/Approvals RoHS | ||
Overall Width 100mm | ||
Maximum Operating Temperature 100°C | ||
Mount Type Clamp | ||
Switching Frequency 20Hz | ||
- COO (Country of Origin):
- DE
The compact spring-loaded transducer is a potentiometric transducer with short stroke and internal return spring. It features an extremely compact design measuring 18 x 18 mm and has a long life of up to 100 million movements. With outstanding linearity up to ±0.05% and repeatability to ±0.002 mm, this transducer offers precise and reliable measurements. Its actuating shaft is supported on both sides, making it resistant to lateral forces during scanning. The transducer is compatible with standard probe tips and is insensitive to shock and vibration. It can be conveniently connected with either a cable or plug connection.
Extremely compact design measuring 18 x 18 mm
Long life up to 100 million movements
Outstanding linearity up to ±0.05%
Repeatability to ±0.002 mm
Actuating shaft with double-sided support
Compatible with standard probe tips
Insensitive to shock and vibration
Optionally available with cable or plug connection
