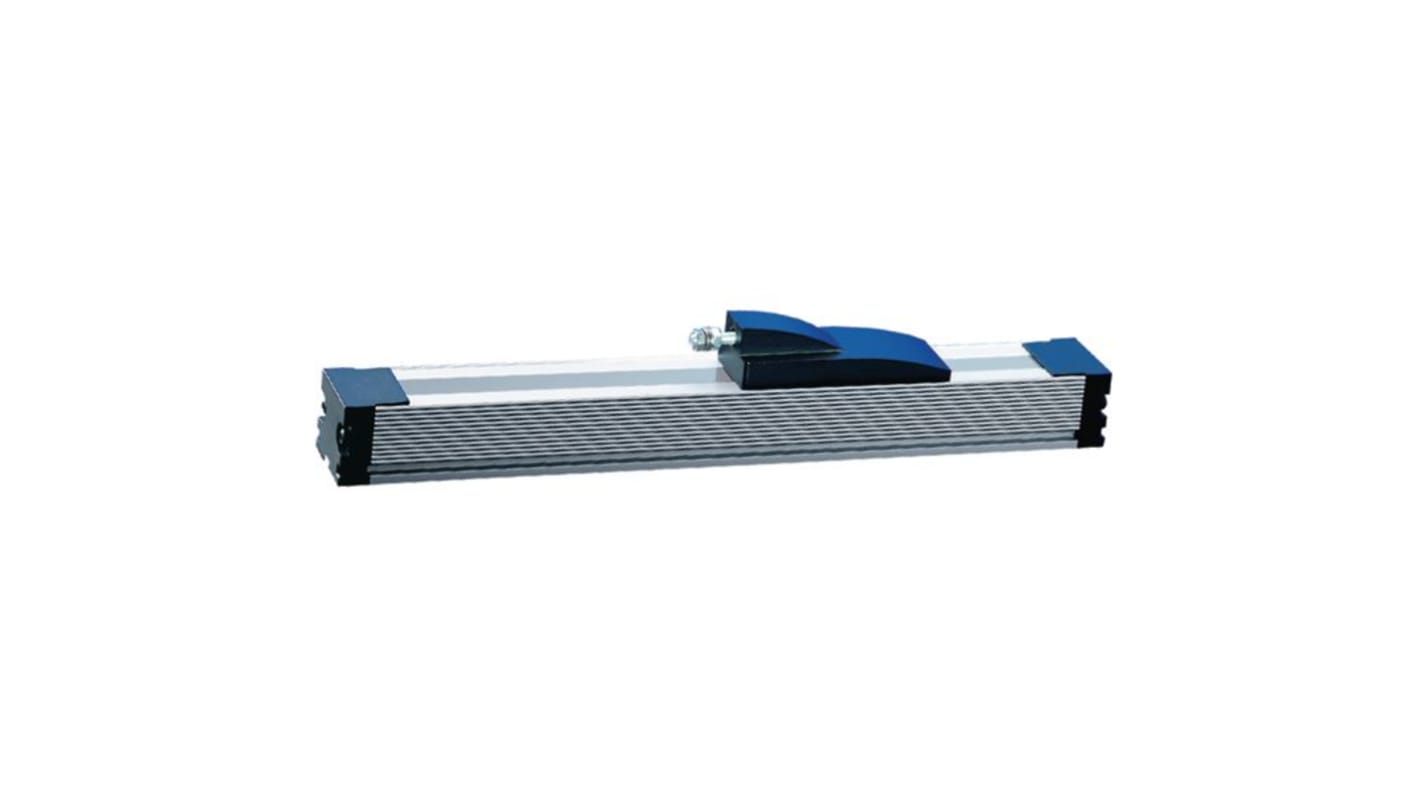

Novotechnik TLH Series Linear Potentiometer Position Sensor 42V, Voltage Signal
- RS Stock No.:
- 283-6094
- Distrelec Article No.:
- 164-90-457
- Mfr. Part No.:
- TLH-0130
- Brand:
- Novotechnik
Subtotal (1 unit)*
£273.46
(exc. VAT)
£328.15
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £273.46 |
*price indicative
- RS Stock No.:
- 283-6094
- Distrelec Article No.:
- 164-90-457
- Mfr. Part No.:
- TLH-0130
- Brand:
- Novotechnik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Novotechnik | |
| Product Type | Position Sensor | |
| Encoder Technology | Linear Potentiometer | |
| Series | TLH | |
| Output Signal Type | Voltage | |
| Stroke | 138 | |
| IP Rating | IP40 | |
| Maximum Supply Voltage | 42V | |
| Minimum Operating Temperature | -30°C | |
| Overall Depth | 85mm | |
| Standards/Approvals | RoHS | |
| Overall Width | 91mm | |
| Overall Height | 346mm | |
| Maximum Operating Temperature | 100°C | |
| Mount Type | Clamp | |
| Switching Frequency | 2000Hz | |
| Select all | ||
|---|---|---|
Brand Novotechnik | ||
Product Type Position Sensor | ||
Encoder Technology Linear Potentiometer | ||
Series TLH | ||
Output Signal Type Voltage | ||
Stroke 138 | ||
IP Rating IP40 | ||
Maximum Supply Voltage 42V | ||
Minimum Operating Temperature -30°C | ||
Overall Depth 85mm | ||
Standards/Approvals RoHS | ||
Overall Width 91mm | ||
Overall Height 346mm | ||
Maximum Operating Temperature 100°C | ||
Mount Type Clamp | ||
Switching Frequency 2000Hz | ||
- COO (Country of Origin):
- DE
The position transducer is designed for accurate measurement of displacement or length in various applications. With a robust design and selected materials, it offers extremely low drift and reliable operation even in harsh environmental conditions.
Rod less design for compact size and stroke lengths up to 3000 mm
Ball coupling to avoid side loads and ensure outstanding linearity up to ±0.02%
Passive and absolute measuring technology for real-time output
High resolution better than 0.01 mm and long life of >100 x 10^6 movements
Immune to external electrical interference and retains positional information in power failure
Connector to DIN 43650 for easy installation and adjustment
