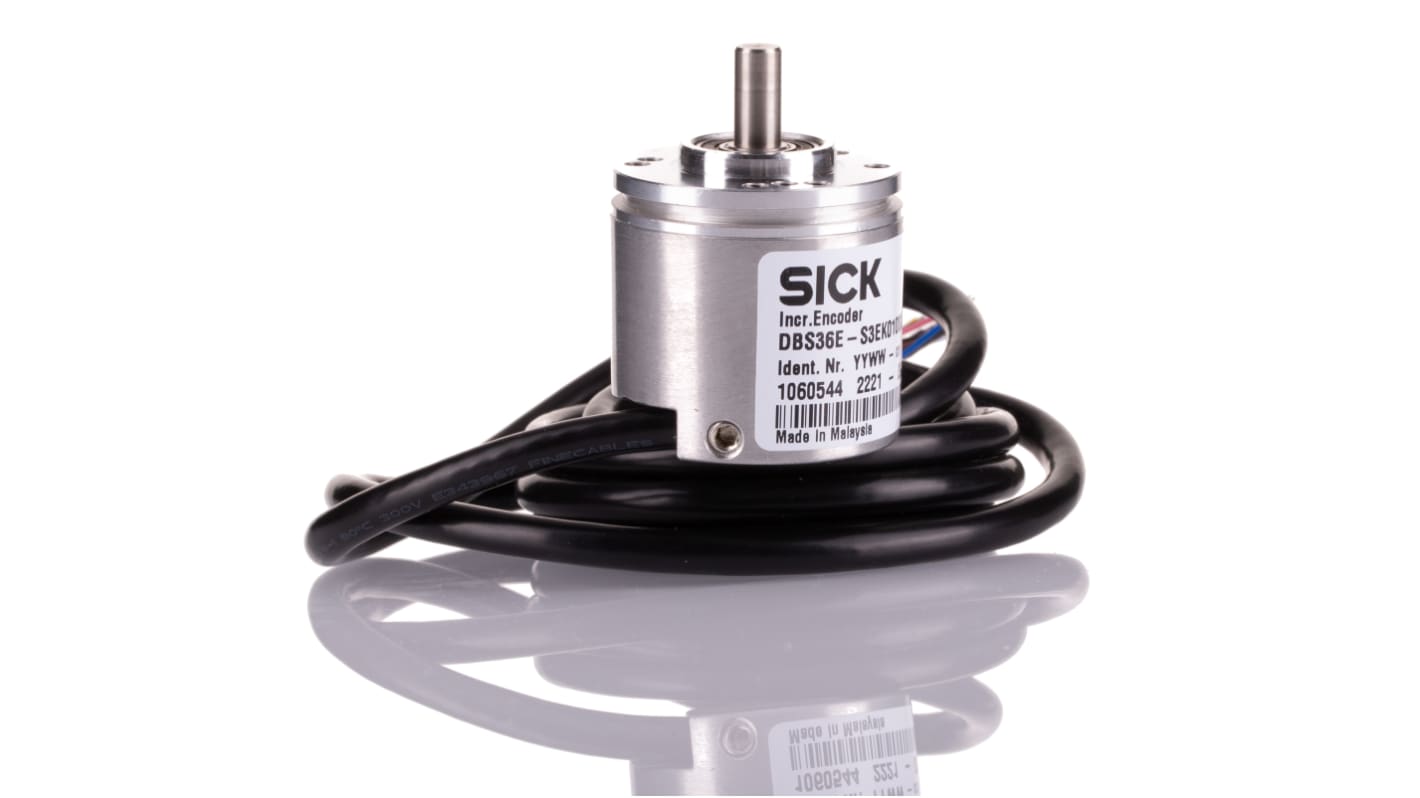

SICK DBS36 Core Series Incremental Incremental Encoder 30V, 1000 ppr ppr, HTL Signal, Solid Type, 6 mm Shaft

RS Stock No.:: 212-5595
Distrelec Article No.:: 301-40-061
Mfr. Part No.:: DBS36E-S3EK01000 / 1060544
Brand:: SICK

Subtotal (1 unit)*

£109.88

(exc. VAT)

£131.86

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

5 unit(s) ready to ship
Plus 8 unit(s) ready to ship from another location
Plus 5 unit(s) shipping from 09 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£109.88

*price indicative

Complete your solution with compatible products for this specific encoder

Explore curated SICK products that seamlessly integrate with this product. Ensure efficiency and reliability to enhance your sensing systems

Shop Now

RS Stock No.:: 212-5595
Distrelec Article No.:: 301-40-061
Mfr. Part No.:: DBS36E-S3EK01000 / 1060544
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Encoder Technology	Incremental
	Product Type	Incremental Encoder
	Series	DBS36 Core
	Pulses Per Revolution	1000ppr
	Maximum Revolutions	8000rpm
	Output Signal Type	HTL
	Shaft Type	Solid
	Shaft Diameter	6mm
	Terminal Type	Cable
	IP Rating	IP65
	Maximum Supply Voltage	30V
	Minimum Operating Temperature	-20°C
	Overall Depth	35.5mm
	Standards/Approvals	EN 61000-6-2 and EN 61000-6-3 (class A)
	Overall Height	37mm
	Overall Width	37mm
	Maximum Operating Temperature	85°C
	Mount Type	Full Shaft
	Switching Frequency	300kHz

	Select all
	Brand SICK
	Encoder Technology Incremental
	Product Type Incremental Encoder
	Series DBS36 Core
	Pulses Per Revolution 1000ppr
	Maximum Revolutions 8000rpm
	Output Signal Type HTL
	Shaft Type Solid
	Shaft Diameter 6mm
	Terminal Type Cable
	IP Rating IP65
	Maximum Supply Voltage 30V
	Minimum Operating Temperature -20°C
	Overall Depth 35.5mm
	Standards/Approvals EN 61000-6-2 and EN 61000-6-3 (class A)
	Overall Height 37mm
	Overall Width 37mm
	Maximum Operating Temperature 85°C
	Mount Type Full Shaft
	Switching Frequency 300kHz

Datasheet - DBS36E-S3EK01000

Overview

At a glance

Universal cable connection

Types with blind hollow shaft or face mount flange with solid shaft

Face mount flange with 6 mounting hole patterns and servo groove

Communication interfaces: TTL/RS-422, HTL/push pull, Open Collector

Number of lines from 10 to 2,500 possible

Temperature range: –20 °C ... +85 °C

Enclosure rating: IP65

Your Benefit

The universal cable connection enables the device to be used in tight spaces and provides cable routing flexibility

Different flanges and the universal stator coupling make it possible to mount the device without changing the application

Shafts in metric and US type enable worldwide use

The high flexibility of the mechanical interface of the encoders and the available accessories allow a single type to be used in many applications

The compact housing diameter saves valuable space

Long-term and reliable operation thanks to a high enclosure rating, temperature resistance and bearing lifetime

The DBS36 Core incremental encoder features impressively high mechanical flexibility, excellent technical properties, and a number of variations. A blind hollow shaft with a shaft diameter of up to 8 mm and a face mount flange with 6 mm and 1/4" solid shaft are available. The type with face mount flange offers 2 different flanges with 6 different mounting hole patterns and a servo groove for mounting with servo clamps. The hollow shaft type has a universal stator coupling that can be used for multiple typical mounting hole circles. All models have compact dimensions and a universal cable connection that allows for cables to run in an axial or radial direction.

Applications

There are numerous application possibilities for positioning and speed measurement, such as in the textile industry, propulsion technology, storage and conveyor, packaging machines, printing presses, glass industry, and elevators

Saw-blade positioning

Determining position in modular transfer systems

Glass plate measurement

Position determination and monitoring on transfer systems

Positioning of the pallet shuttle

Length monitoring of deflectors with Smart Sensors

Spliceband detection

Positioning and speed measurement on the shuttle

Monitoring the roll-down gate to the baggage hall

Speed detection of an automated guided vehicle (AGV)

Speed monitoring in escalators with incremental encoders

Position determination of high speed gates

Monitoring belt operation in carbon and sinter supply

Speed measurement of ingot casting belt
