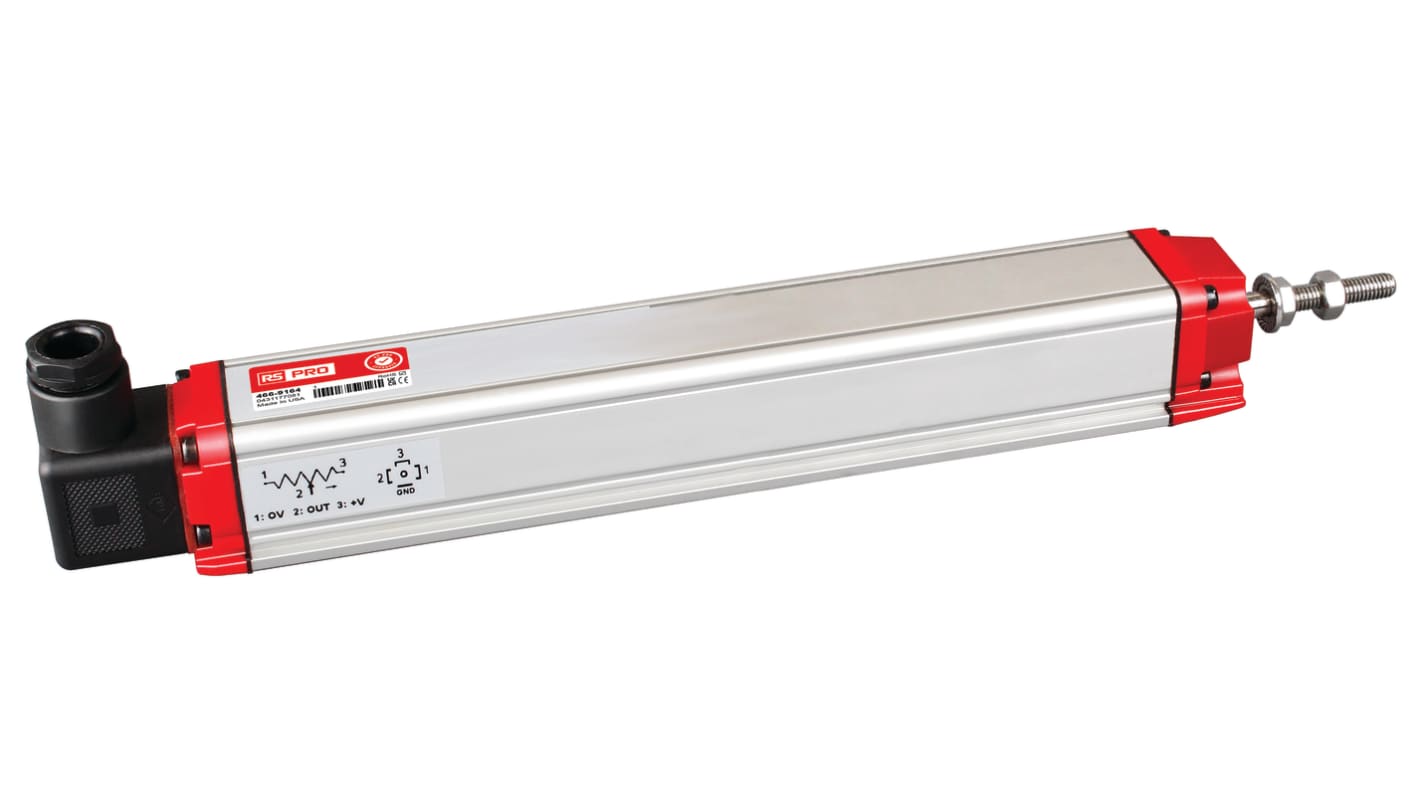

RS PRO RTL Series Position Sensor 4-Pin Connector 28V dc
- RS Stock No.:
- 358-995
- Brand:
- RS PRO
Subtotal (1 unit)*
£141.60
(exc. VAT)
£169.92
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £141.60 |
*price indicative
- RS Stock No.:
- 358-995
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Position Sensor | |
| Series | RTL | |
| Resistance | 5kΩ | |
| Housing Material | Anodised Aluminium | |
| Interface Type | 4-Pin Connector | |
| IP Rating | IP65 | |
| Maximum Supply Voltage | 28V dc | |
| Overall Depth | 392mm | |
| Overall Height | 54mm | |
| Overall Width | 56mm | |
| Standards/Approvals | CE, RoHS, UKCA, REACH | |
| Resistance Tolerance | ±20 % | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Position Sensor | ||
Series RTL | ||
Resistance 5kΩ | ||
Housing Material Anodised Aluminium | ||
Interface Type 4-Pin Connector | ||
IP Rating IP65 | ||
Maximum Supply Voltage 28V dc | ||
Overall Depth 392mm | ||
Overall Height 54mm | ||
Overall Width 56mm | ||
Standards/Approvals CE, RoHS, UKCA, REACH | ||
Resistance Tolerance ±20 % | ||
Maximum Operating Temperature 80°C | ||
RS PRO Linear Potentiometer, 30 - 1000 mm Measuring Range
The RS PRO Linear Potentiometer is designed for precise motion control applications, offering a measuring range of 30 to 1000 mm. Ideal for environments requiring accurate position feedback, this potentiometer ensures reliable performance with its robust construction and high repeatability.
Features and Benefits
Measuring Range 30 - 1000 mm: Suitable for a wide range of applications
Long Mechanical Life 100 Million Movements: Ensures durability and longevity
Excellent Repeatability >0.01 mm: Provides precise and consistent measurements
Infinite Resolution: Allows for smooth and continuous position feedback
5 kOhm: 30 ... 600 mm, 10 kOhm: 650 ... 1000 mm: Offers flexibility in resistance options
Applications
Industrial automation
Robotics
Material handling systems
Additional Information
IP65 Rating: Provides protection against dust and water ingress
Mounting Type: Bracket Mount for secure installation
Connection Type: Hydraulic 4-Pin Connector for reliable connectivity
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
