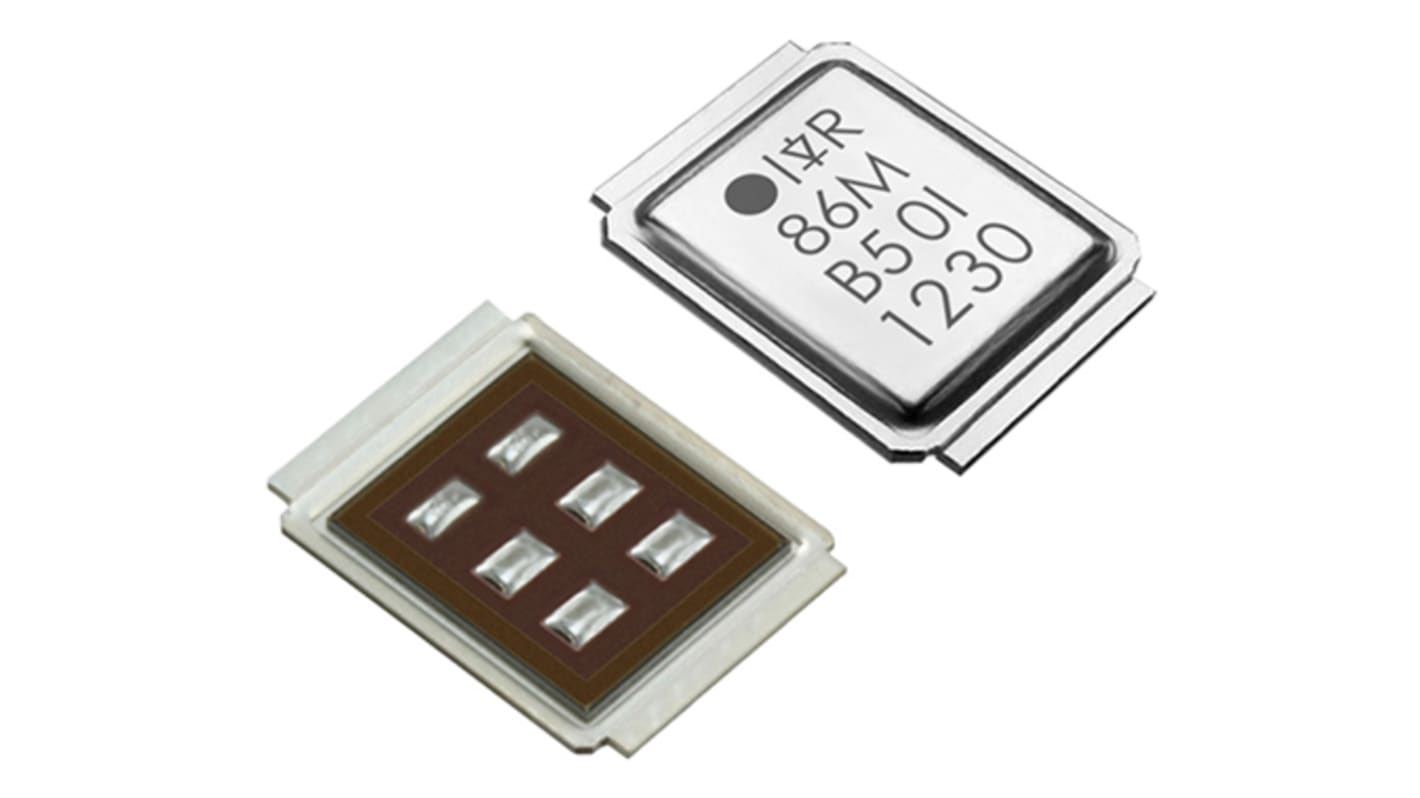

N-Channel MOSFET, 209 A, 40 V, 7-Pin DirectFET Infineon IRL7486MTRPbF
- RS Stock No.:
- 896-7330
- Mfr. Part No.:
- IRL7486MTRPbF
- Brand:
- Infineon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 896-7330
- Mfr. Part No.:
- IRL7486MTRPbF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 209 A | |
| Maximum Drain Source Voltage | 40 V | |
| Package Type | DirectFET | |
| Mounting Type | Surface Mount | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance | 2 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.5V | |
| Minimum Gate Threshold Voltage | 1V | |
| Maximum Power Dissipation | 104 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | -20 V, +20 V | |
| Maximum Operating Temperature | +150 °C | |
| Number of Elements per Chip | 1 | |
| Length | 6.35mm | |
| Width | 5.05mm | |
| Typical Gate Charge @ Vgs | 76 nC | |
| Transistor Material | Si | |
| Series | StrongIRFET | |
| Minimum Operating Temperature | -55 °C | |
| Height | 0.7mm | |
| Forward Diode Voltage | 1.2V | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 209 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type DirectFET | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
Maximum Drain Source Resistance 2 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Minimum Gate Threshold Voltage 1V | ||
Maximum Power Dissipation 104 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -20 V, +20 V | ||
Maximum Operating Temperature +150 °C | ||
Number of Elements per Chip 1 | ||
Length 6.35mm | ||
Width 5.05mm | ||
Typical Gate Charge @ Vgs 76 nC | ||
Transistor Material Si | ||
Series StrongIRFET | ||
Minimum Operating Temperature -55 °C | ||
Height 0.7mm | ||
Forward Diode Voltage 1.2V | ||
StrongIRFET™ Logic-Level Power MOSFET, Infineon
An extension to the Infineon StrongIRFET family optimised for +5V logic-level gate drive. They share the same characteristics as the existing StrongIRFET family, such as low RDS(on) for greater efficiency, and high current carrying capacity for improved ruggedness and operational reliability.
Optimal RDS(on) @ VGS = +4.5V
Suitable for battery-powered systems
Applications: Motor drivers, synchronous rectifier systems, OR-ing & Redundant power switches, DC-DC converters
Suitable for battery-powered systems
Applications: Motor drivers, synchronous rectifier systems, OR-ing & Redundant power switches, DC-DC converters
The Infineon IRL7486M is the 40V single N-channel logic level strongIRFET power MOSFET in a directFET ME package. The StrongIRFET power MOSFET family is optimized for low RDS(on) and high current capability. The device are ideal for low frequency applications requiring performance and ruggedness.
Fully characterized capacitance and avalanche SOA
Enhanced body diode dv/dt and di/dt capability
Enhanced body diode dv/dt and di/dt capability
MOSFET Transistors, Infineon
Infineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families. They deliver best-in-class performance to bring more efficiency, power density and cost effectiveness. Designs requiring high quality and enhanced protection features benefit from AEC-Q101 industry standards Automotive qualified MOSFETs.
