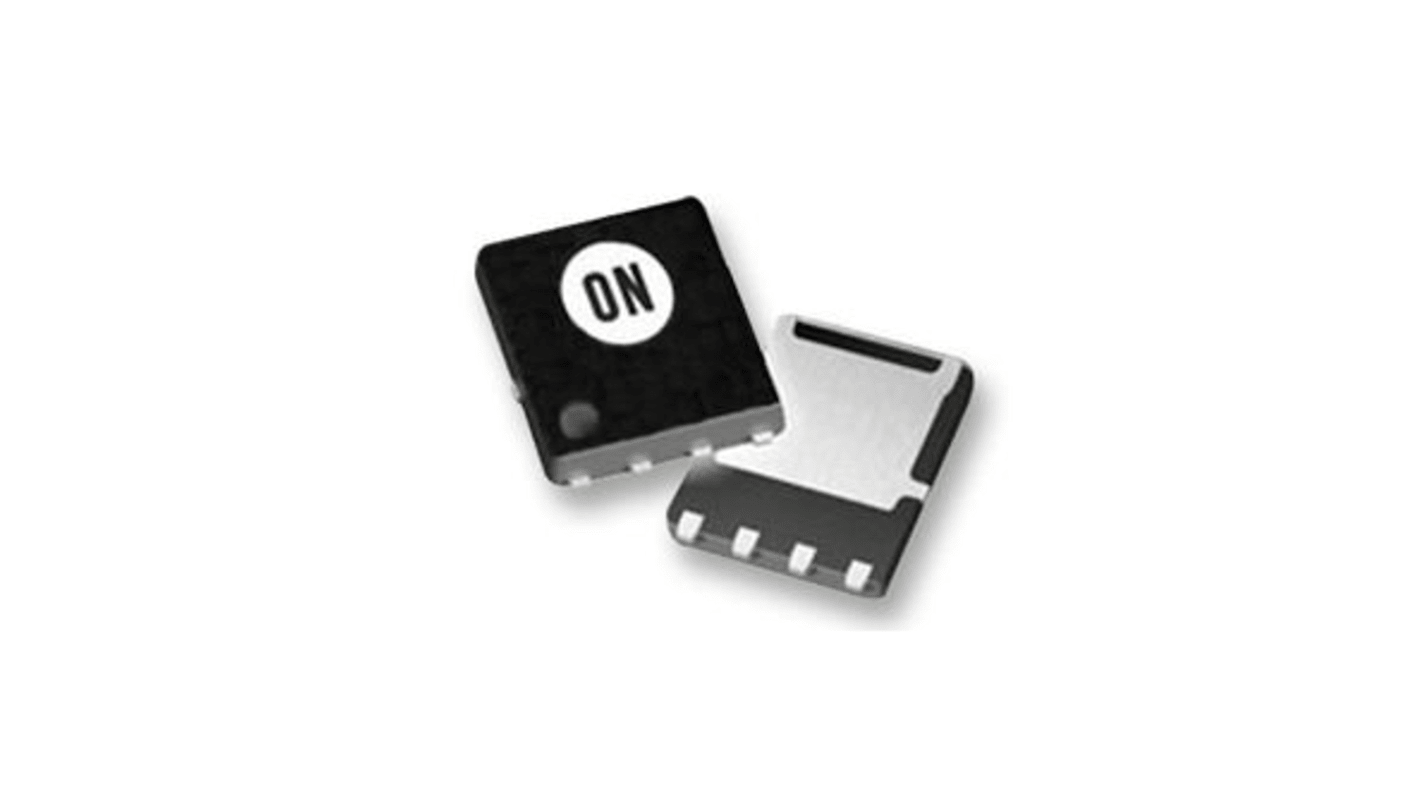

onsemi NTMFS1D7N N-Channel MOSFET, 170 A, 30 V, 5-Pin DFN NTMFS1D7N03CGT1G
- RS Stock No.:
- 221-6730P
- Mfr. Part No.:
- NTMFS1D7N03CGT1G
- Brand:
- onsemi
Bulk discount available
Subtotal 100 units (supplied on a continuous strip)*
£58.00
(exc. VAT)
£70.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,930 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 240 | £0.58 |
| 250 - 490 | £0.503 |
| 500 - 990 | £0.442 |
| 1000 + | £0.402 |
*price indicative
- RS Stock No.:
- 221-6730P
- Mfr. Part No.:
- NTMFS1D7N03CGT1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 170 A | |
| Maximum Drain Source Voltage | 30 V | |
| Package Type | DFN | |
| Series | NTMFS1D7N | |
| Mounting Type | Surface Mount | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance | 0.00174 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.2V | |
| Transistor Material | Si | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 170 A | ||
Maximum Drain Source Voltage 30 V | ||
Package Type DFN | ||
Series NTMFS1D7N | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Maximum Drain Source Resistance 0.00174 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.2V | ||
Transistor Material Si | ||
Number of Elements per Chip 1 | ||
The ON Semiconductor 30V of power MOSFET used 170 A of drain current with single N−channel. It improve inrush current management and improve system efficiency.
Low RDS(on) to minimize conduction losses
Low capacitance to minimize driver losses
Low capacitance to minimize driver losses
