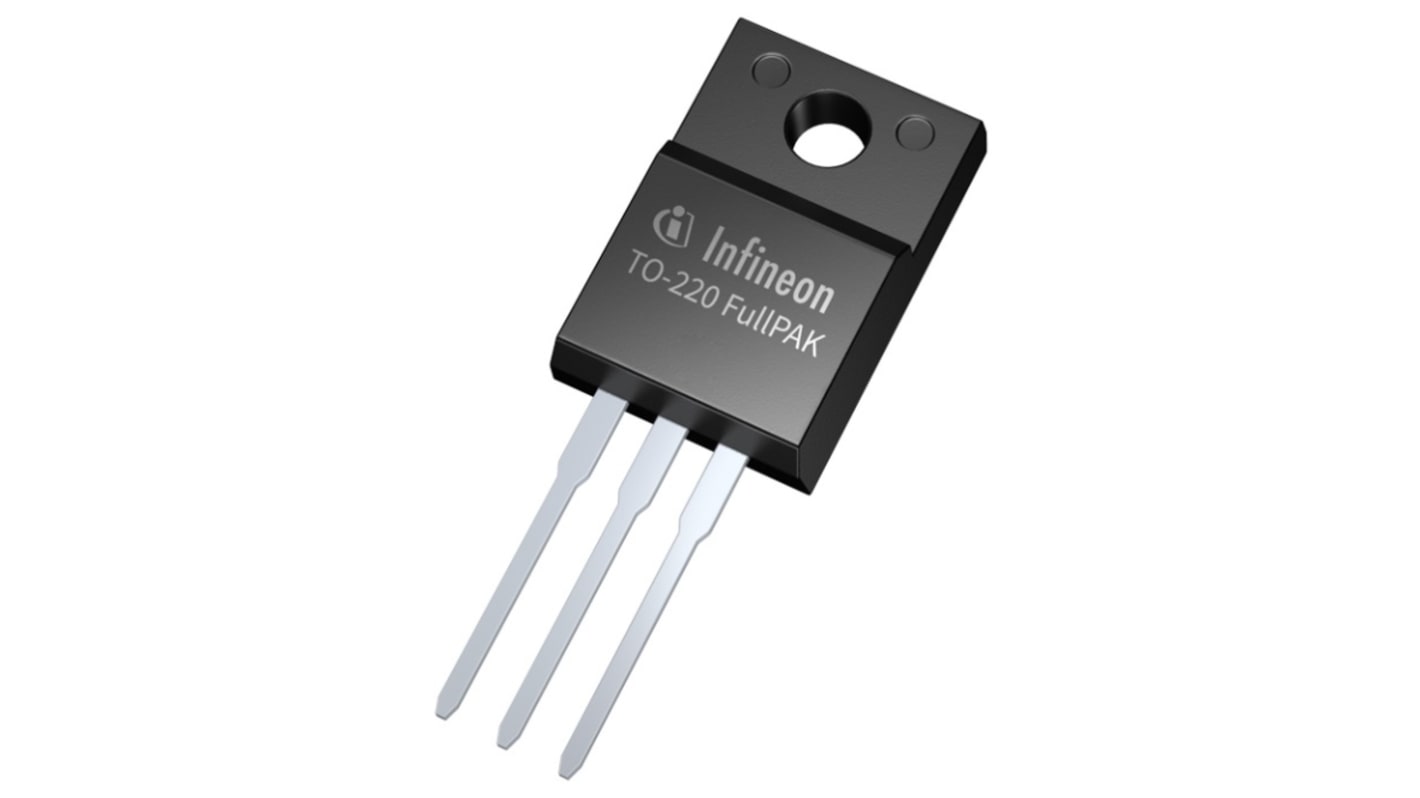

Infineon CoolMOS CE Type N-Channel MOSFET, 5.4 A, 500 V Enhancement, 3-Pin TO-220
- RS Stock No.:
- 215-2475P
- Mfr. Part No.:
- IPA50R500CEXKSA2
- Brand:
- Infineon
Bulk discount available
Subtotal 100 units (supplied in a tube)*
£54.30
(exc. VAT)
£65.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 580 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 180 | £0.543 |
| 200 - 480 | £0.508 |
| 500 - 980 | £0.474 |
| 1000 + | £0.439 |
*price indicative
- RS Stock No.:
- 215-2475P
- Mfr. Part No.:
- IPA50R500CEXKSA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 5.4A | |
| Maximum Drain Source Voltage Vds | 500V | |
| Package Type | TO-220 | |
| Series | CoolMOS CE | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 500mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 0.85V | |
| Typical Gate Charge Qg @ Vgs | 18.7nC | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 28W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 5.4A | ||
Maximum Drain Source Voltage Vds 500V | ||
Package Type TO-220 | ||
Series CoolMOS CE | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 500mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 0.85V | ||
Typical Gate Charge Qg @ Vgs 18.7nC | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 28W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Infineon 500V Cool MOS™ CE series MOSFET is a price-performance optimized platform enabling to target cost sensitive applications in consumer and lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching super junction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market. It has applications as PFC stages, hard switching PWM stages and resonant switching stages fore .g. PC Silver box, Adapter, LCD & PDPTV and indoor lighting.
Extremely low losses due to very low FOM Rdson*Qg and Eoss
Very high commutation ruggedness
Easy to use/drive
Pb-free plating, Halogen free mold compound
Qualified for standard grade applications
