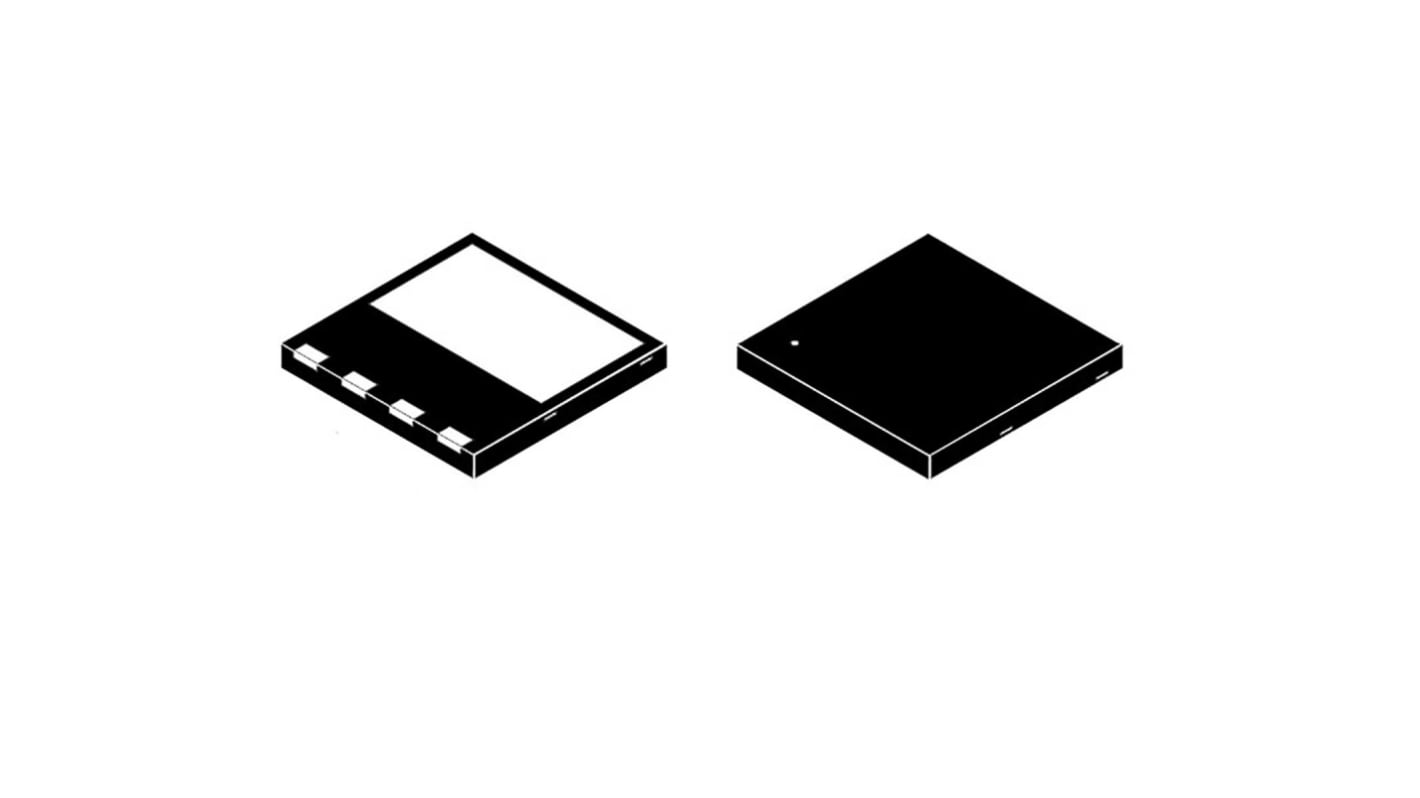

STMicroelectronics M6 N-Channel MOSFET, 15 A, 600 V, 5-Pin PowerFLAT 8 x 8 HV STL24N60M6
- RS Stock No.:
- 203-3441P
- Mfr. Part No.:
- STL24N60M6
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 203-3441P
- Mfr. Part No.:
- STL24N60M6
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 15 A | |
| Maximum Drain Source Voltage | 600 V | |
| Package Type | PowerFLAT 8 x 8 HV | |
| Series | M6 | |
| Mounting Type | Surface Mount | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance | 0.209 Ω | |
| Maximum Gate Threshold Voltage | 4.75V | |
| Transistor Material | Si | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 15 A | ||
Maximum Drain Source Voltage 600 V | ||
Package Type PowerFLAT 8 x 8 HV | ||
Series M6 | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Maximum Drain Source Resistance 0.209 Ω | ||
Maximum Gate Threshold Voltage 4.75V | ||
Transistor Material Si | ||
Number of Elements per Chip 1 | ||
The STMicroelectronics N-channel MDmesh M6 Power MOSFET incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. Previous generation of MDmesh devices through its new M6 technology, is built by STMicroelectronics. This combines excellent RDS(on) per area improvement with one of the most effective switching behaviours available, as well as a user-friendly experience for maximum end-application efficiency.
Reduced switching losses
Low gate input resistance
100% avalanche tested
Zener-protected
Low gate input resistance
100% avalanche tested
Zener-protected
