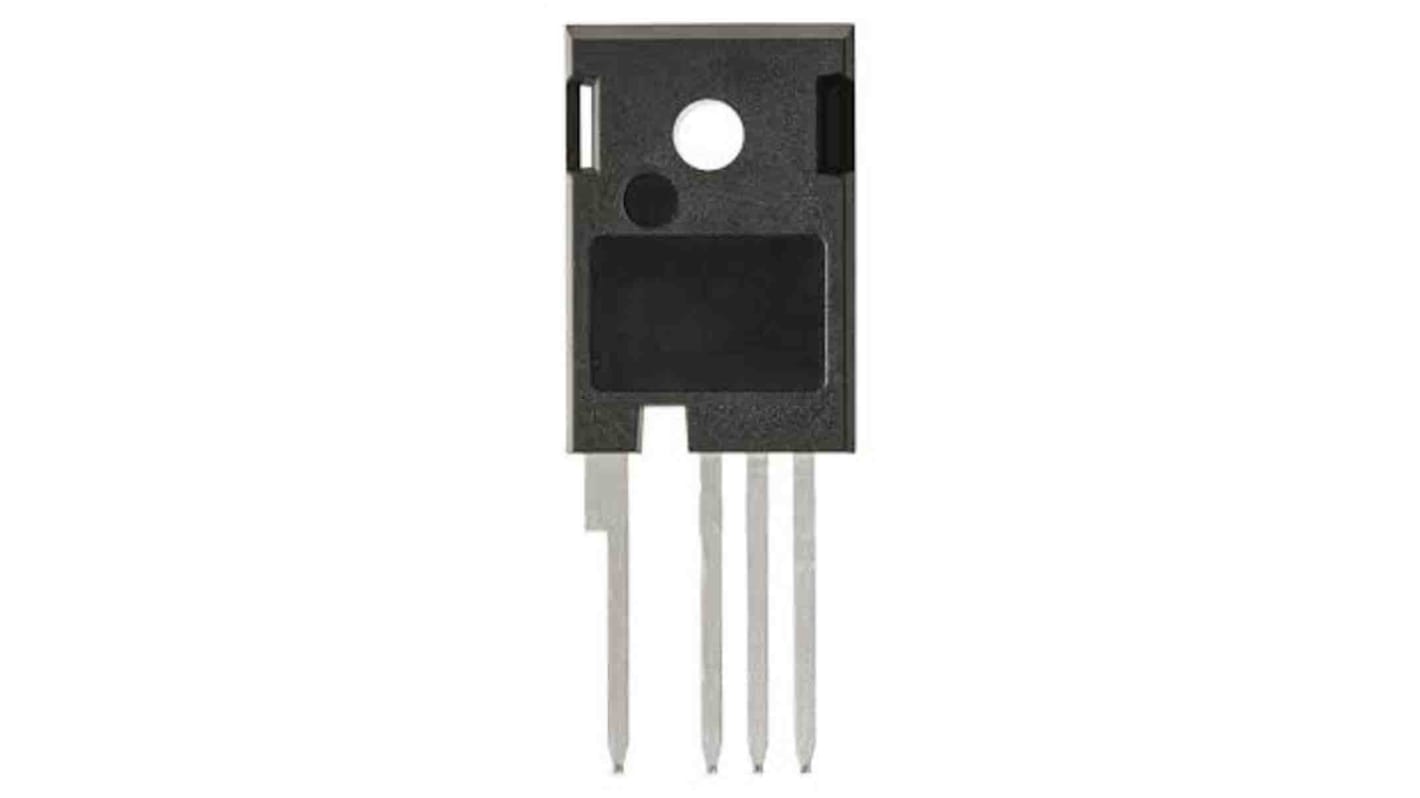

onsemi NVH Type N-Channel MOSFET, 102 A, 1200 V Enhancement, 4-Pin TO-247
- RS Stock No.:
- 202-5735P
- Mfr. Part No.:
- NVH4L020N120SC1
- Brand:
- onsemi
Subtotal 1 unit (supplied in a tube)*
£28.21
(exc. VAT)
£33.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 32 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.21 |
*price indicative
- RS Stock No.:
- 202-5735P
- Mfr. Part No.:
- NVH4L020N120SC1
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 102A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Package Type | TO-247 | |
| Series | NVH | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 28mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 510W | |
| Typical Gate Charge Qg @ Vgs | 220nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Height | 22.74mm | |
| Length | 15.8mm | |
| Standards/Approvals | AEC-Q101 and PPAP Capable | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 102A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Package Type TO-247 | ||
Series NVH | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 28mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 510W | ||
Typical Gate Charge Qg @ Vgs 220nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Height 22.74mm | ||
Length 15.8mm | ||
Standards/Approvals AEC-Q101 and PPAP Capable | ||
Automotive Standard No | ||
Silicon Carbide (SiC) MOSFET, N‐Channel - EliteSiC, 20 mohm, 1200 V, M1, TO247−4L Silicon Carbide MOSFET, N-Channel, 1200 V, 20 mΩ, TO247-4L
The ON Semiconductor Silicon Carbide Power MOSFET runs with 102 Ampere and 1200 Volts. It can be used in Automotive on board charger, DC or DC Converter applications.
AEC Q101 qualified
Production part approval process Capable
100% avalanche tested
Low effective output capacitance
