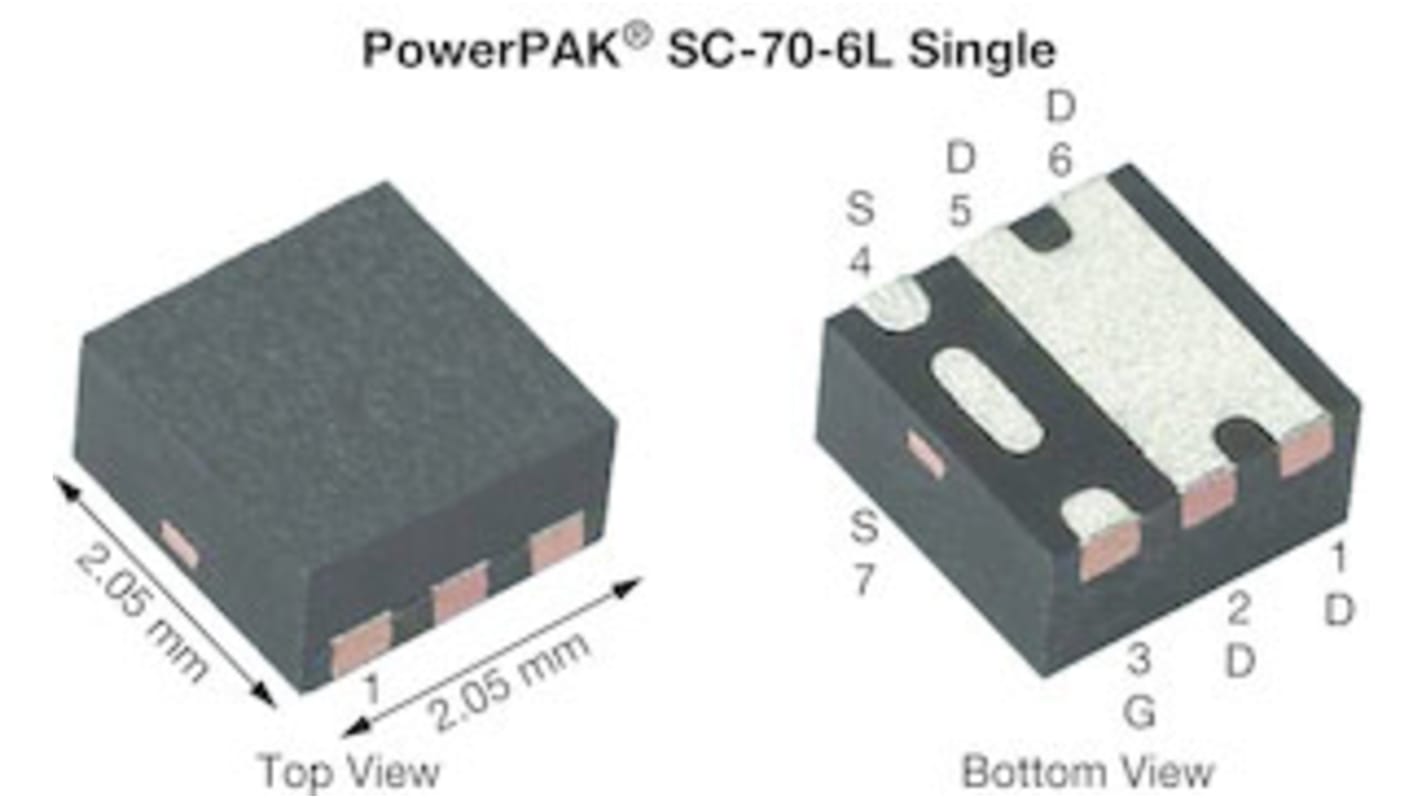

Vishay Siliconix TrenchFET P-Channel MOSFET, 10 A, 30 V, 6-Pin SC-70-6L SQA403EJ-T1_GE3
- RS Stock No.:
- 178-3897P
- Mfr. Part No.:
- SQA403EJ-T1_GE3
- Brand:
- Vishay Siliconix
Subtotal 25 units (supplied on a reel)*. Quantities below 150 on continuous strip
£8.775
(exc. VAT)
£10.525
(inc. VAT)
FREE delivery for orders over £50.00
- 3,000 unit(s) ready to ship
Units | Per unit |
|---|---|
| 25 + | £0.351 |
*price indicative
- RS Stock No.:
- 178-3897P
- Mfr. Part No.:
- SQA403EJ-T1_GE3
- Brand:
- Vishay Siliconix
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay Siliconix | |
| Channel Type | P | |
| Maximum Continuous Drain Current | 10 A | |
| Maximum Drain Source Voltage | 30 V | |
| Package Type | SC-70-6L | |
| Series | TrenchFET | |
| Mounting Type | Surface Mount | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance | 30 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.5V | |
| Minimum Gate Threshold Voltage | 1.5V | |
| Maximum Power Dissipation | 13.6 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | ±20 V | |
| Transistor Material | Si | |
| Width | 1.35mm | |
| Maximum Operating Temperature | +175 °C | |
| Typical Gate Charge @ Vgs | 26 nC @ 10 V | |
| Length | 2.2mm | |
| Number of Elements per Chip | 1 | |
| Forward Diode Voltage | 1.2V | |
| Automotive Standard | AEC-Q101 | |
| Height | 1mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand Vishay Siliconix | ||
Channel Type P | ||
Maximum Continuous Drain Current 10 A | ||
Maximum Drain Source Voltage 30 V | ||
Package Type SC-70-6L | ||
Series TrenchFET | ||
Mounting Type Surface Mount | ||
Pin Count 6 | ||
Maximum Drain Source Resistance 30 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Minimum Gate Threshold Voltage 1.5V | ||
Maximum Power Dissipation 13.6 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±20 V | ||
Transistor Material Si | ||
Width 1.35mm | ||
Maximum Operating Temperature +175 °C | ||
Typical Gate Charge @ Vgs 26 nC @ 10 V | ||
Length 2.2mm | ||
Number of Elements per Chip 1 | ||
Forward Diode Voltage 1.2V | ||
Automotive Standard AEC-Q101 | ||
Height 1mm | ||
Minimum Operating Temperature -55 °C | ||
