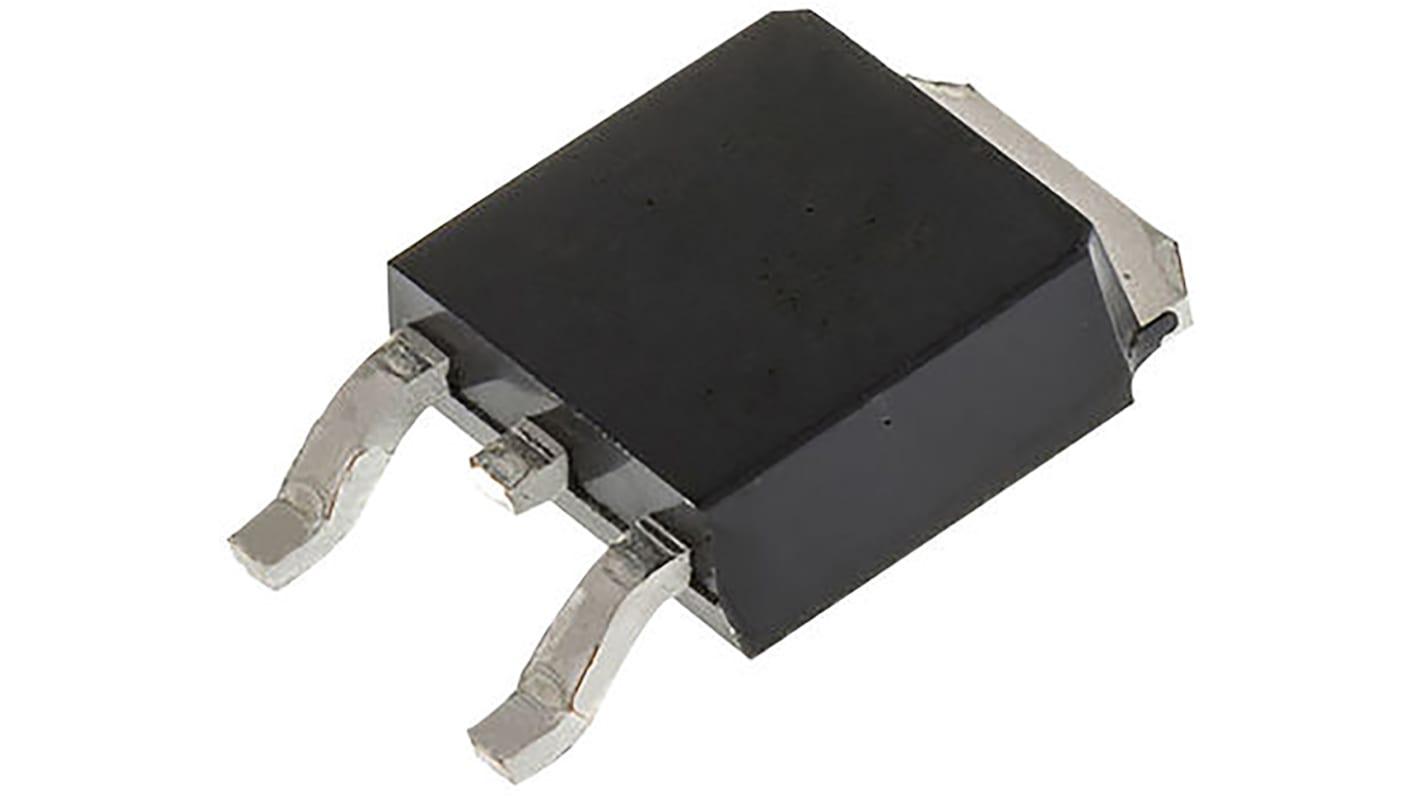

N-Channel MOSFET, 5.5 A, 650 V, 3-Pin DPAK STMicroelectronics STD9N60M2
- RS Stock No.:
- 168-6983
- Mfr. Part No.:
- STD9N60M2
- Brand:
- STMicroelectronics
Available to back order for despatch 02/10/2024
Added
Price Each (On a Reel of 2500)
£0.459
(exc. VAT)
£0.551
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.459 | £1,147.50 |
| *price indicative | ||
- RS Stock No.:
- 168-6983
- Mfr. Part No.:
- STD9N60M2
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
N-channel MDmesh™ M2 Series, STMicroelectronics
A range of high-voltage power MOSFETs from STMicroelecronics. With their low gate charge and excellent output capacitance characteristics, the MDmesh M2 series are perfect for use in resonant-type switching supplies (LLC converters).
MOSFET Transistors, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 5.5 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | DPAK (TO-252) |
| Series | MDmesh M2 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 780 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 60 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 10 nC @ 10 V |
| Number of Elements per Chip | 1 |
| Width | 6.2mm |
| Length | 6.6mm |
| Height | 2.4mm |
| Minimum Operating Temperature | -55 °C |
