Infineon OptiMOS SiC N-Channel MOSFET, 56 A, 150 V, 8-Pin PG-WSON-8 BSC160N15NS5SCATMA1
- RS Stock No.:
- 284-651P
- Mfr. Part No.:
- BSC160N15NS5SCATMA1
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 284-651P
- Mfr. Part No.:
- BSC160N15NS5SCATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 56 A | |
| Maximum Drain Source Voltage | 150 V | |
| Series | OptiMOS | |
| Package Type | PG-WSON-8 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Channel Mode | Enhancement | |
| Transistor Material | SiC | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 56 A | ||
Maximum Drain Source Voltage 150 V | ||
Series OptiMOS | ||
Package Type PG-WSON-8 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Channel Mode Enhancement | ||
Transistor Material SiC | ||
Number of Elements per Chip 1 | ||

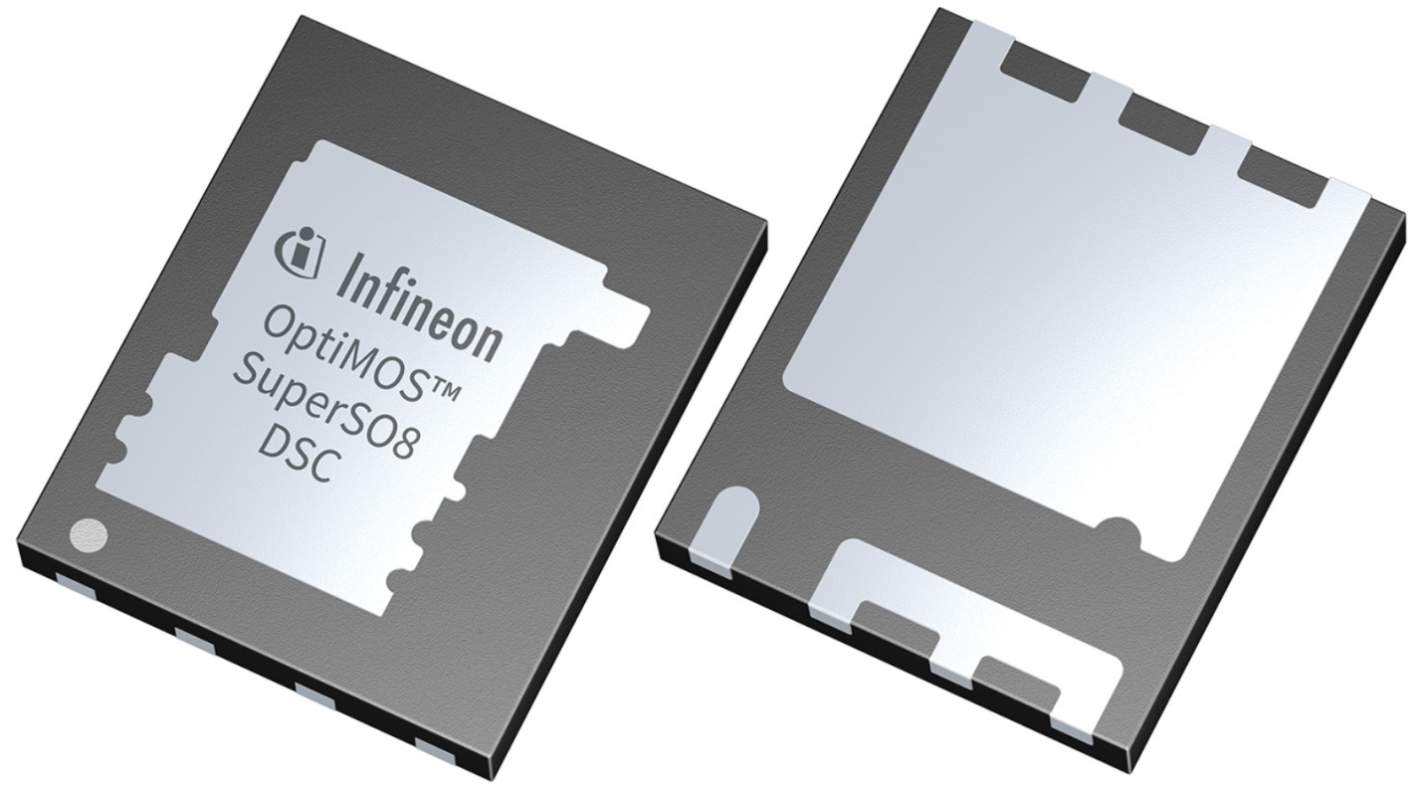

The Infineon OptiMOS Power MOSFET is engineered to deliver exceptional performance in high frequency switching applications. With a robust 150V rating, it serves as a reliable solution for industrial and automotive electronics. The dual side cooled PG WSON 8 package ensures minimal thermal resistance, allowing for efficient heat dissipation even under heavy load conditions. Designed for N channel operation, this MOSFET excels in synchronous rectification, making it ideal for power management tasks where efficiency and reliability are paramount. Manufacturers can trust this component to meet stringent requirements, delivering effective and stable performance in demanding environments.
Optimised for high frequency operation
Dual side cooling lowers thermal resistance
Pb free lead plating for RoHS compliance
Excellent gate charge performance boosts efficiency
Ideal for synchronous rectification applications
Operates at high temperatures without efficiency loss
Qualified to JEDEC standards for industry
Dual side cooling lowers thermal resistance
Pb free lead plating for RoHS compliance
Excellent gate charge performance boosts efficiency
Ideal for synchronous rectification applications
Operates at high temperatures without efficiency loss
Qualified to JEDEC standards for industry
