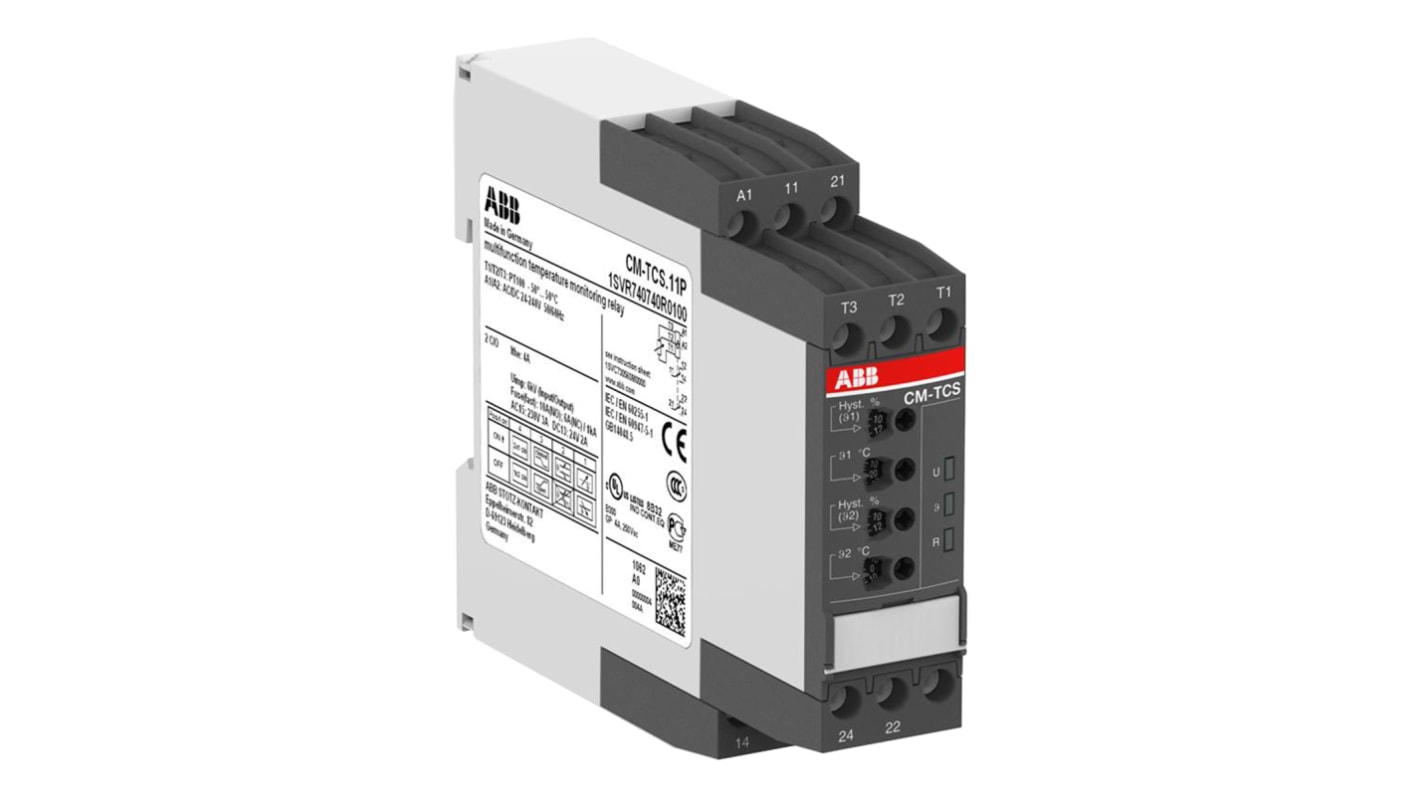

ABB Temperature Monitoring Relay, 3 Phase, SPDT, DIN Rail
- RS Stock No.:
- 876-5752
- Mfr. Part No.:
- 1SVR740740R0100 CM-TCS.11P
- Brand:
- ABB
Subtotal (1 unit)*
£234.02
(exc. VAT)
£280.82
(inc. VAT)
FREE delivery for orders over £50.00
- 3 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £234.02 |
| 5 - 9 | £222.31 |
| 10 - 24 | £210.62 |
| 25 - 49 | £198.91 |
| 50 + | £187.21 |
*price indicative
- RS Stock No.:
- 876-5752
- Mfr. Part No.:
- 1SVR740740R0100 CM-TCS.11P
- Brand:
- ABB
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Monitoring Application | Temperature | |
| Electrical Phase | 3 | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Time Delay | 20ms | |
| Frequency Sensing Range | 13.5 → 440Hz | |
| Temperature Sensitivity | Overtemperature, Temperature Window Monitoring, Undertemperature | |
| Temperature Sensing Range | -50 → +50°C | |
| Series | CM-TCS | |
| Special Features | 3 LEDs for the Indication of Operational States, All Configurations and Adjustments by Front-Face Operating Elements, Hysteresis 2-20 % Adjustable, One or Two Threshold Values, Precise Adjustment With Direct Reading Scales | |
| Number of Poles | 1 | |
| Minimum Operating Temperature | -40°C | |
| Width | 22.5mm | |
| Maximum Operating Temperature | +60°C | |
| Maximum Temperature Sensed | +50°C | |
| Dimensions | 103.7 x 22.5 x 85.6mm | |
| Height | 85.6mm | |
| Length | 103.7mm | |
| Operating Temperature Range | +60°C | |
| Minimum Temperature Sensed | -50°C | |
| Terminal Type | Push In | |
| Minimum Frequency Sensed | 13.5Hz | |
| Maximum Frequency Sensed | 440Hz | |
Select all | ||
|---|---|---|
Brand ABB | ||
Monitoring Application Temperature | ||
Electrical Phase 3 | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Time Delay 20ms | ||
Frequency Sensing Range 13.5 → 440Hz | ||
Temperature Sensitivity Overtemperature, Temperature Window Monitoring, Undertemperature | ||
Temperature Sensing Range -50 → +50°C | ||
Series CM-TCS | ||
Special Features 3 LEDs for the Indication of Operational States, All Configurations and Adjustments by Front-Face Operating Elements, Hysteresis 2-20 % Adjustable, One or Two Threshold Values, Precise Adjustment With Direct Reading Scales | ||
Number of Poles 1 | ||
Minimum Operating Temperature -40°C | ||
Width 22.5mm | ||
Maximum Operating Temperature +60°C | ||
Maximum Temperature Sensed +50°C | ||
Dimensions 103.7 x 22.5 x 85.6mm | ||
Height 85.6mm | ||
Length 103.7mm | ||
Operating Temperature Range +60°C | ||
Minimum Temperature Sensed -50°C | ||
Terminal Type Push In | ||
Minimum Frequency Sensed 13.5Hz | ||
Maximum Frequency Sensed 440Hz | ||
CM-TCS Temperature Monitoring Relays
All configurations and adjustments by front-face operating elements
Precise adjustment with direct reading scales
Short circuit monitoring and interrupted wire detection
3 LEDs for the indication of operational states
Approvals
