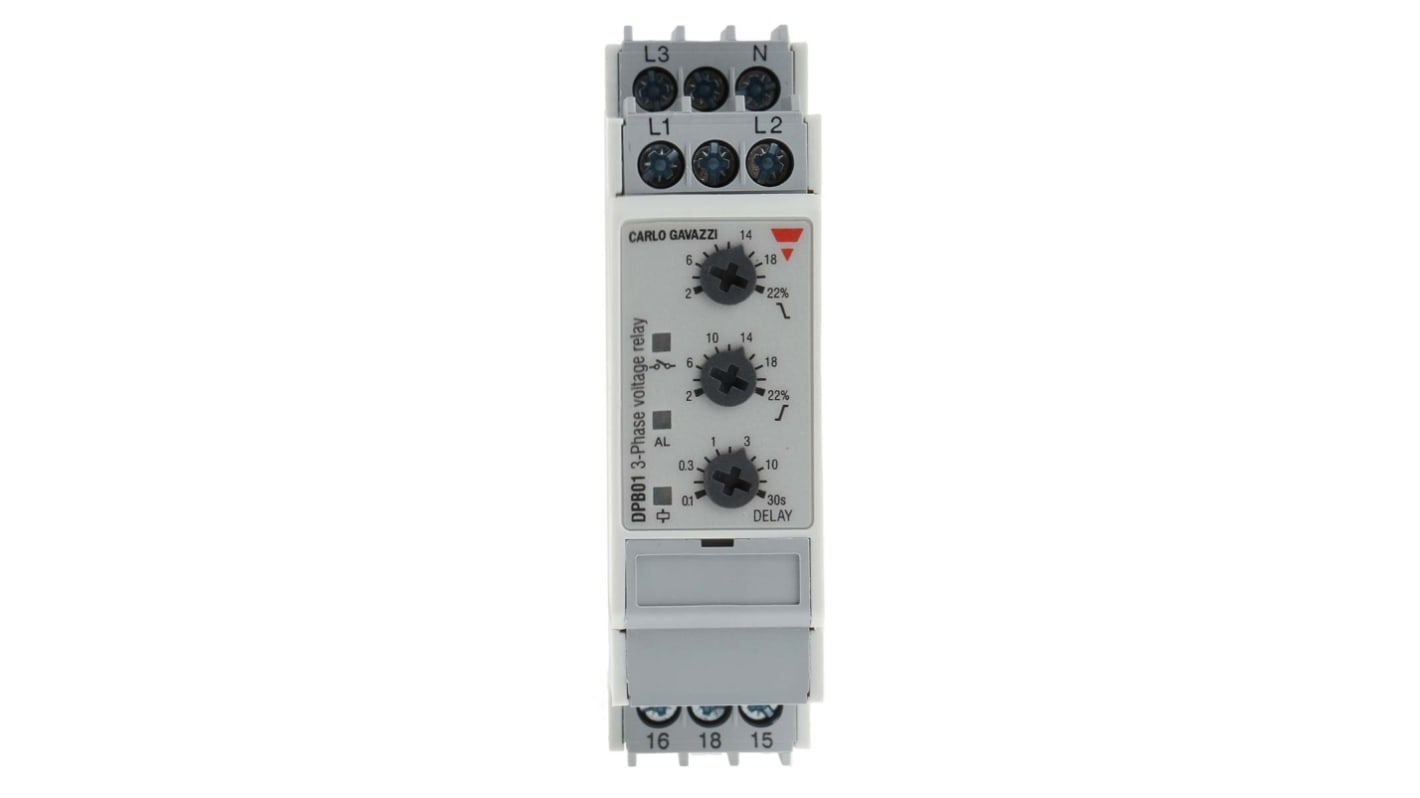

Carlo Gavazzi Phase, Voltage Monitoring Relay, 3, 3+N Phase, SPDT, 323 → 550V ac, DIN Rail

View all Monitoring Relays
Bulk discount available

Subtotal (1 unit)*

£189.22

(exc. VAT)

£227.06

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 24 unit(s) ready to ship
  • Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 2£189.22
3 +£181.54

*price indicative

RS Stock No.:
857-7696
Mfr. Part No.:
DPB01CM48
Brand:
Carlo Gavazzi
Find similar products by selecting one or more attributes.
Select all

Brand

Carlo Gavazzi

Monitoring Application

Phase, Voltage

Electrical Phase

3, 3+N

Contact Configuration

SPDT

Voltage Sensing Range

323 → 550V ac

Voltage Sensitivity

Overvoltage, Undervoltage

Mounting Type

DIN Rail

Phase Sensitivity

Phase Loss, Phase Sequence

Time Delay

1 s, 6s

Series

DPB01

Maximum Operating Temperature

+60°C

Minimum Voltage Sensed

323V ac

Dimensions

99.5 x 22.5 x 80mm

Length

99.5mm

Width

22.5mm

Minimum Operating Temperature

-20°C

Terminal Type

Screw

Maximum Voltage Sensed

550V ac

Operating Temperature Range

+60°C

Height

80mm

COO (Country of Origin):
IT

Over Voltage - Over Current Monitoring Relay


Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.

AC/DC over voltage monitoring relay
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available
