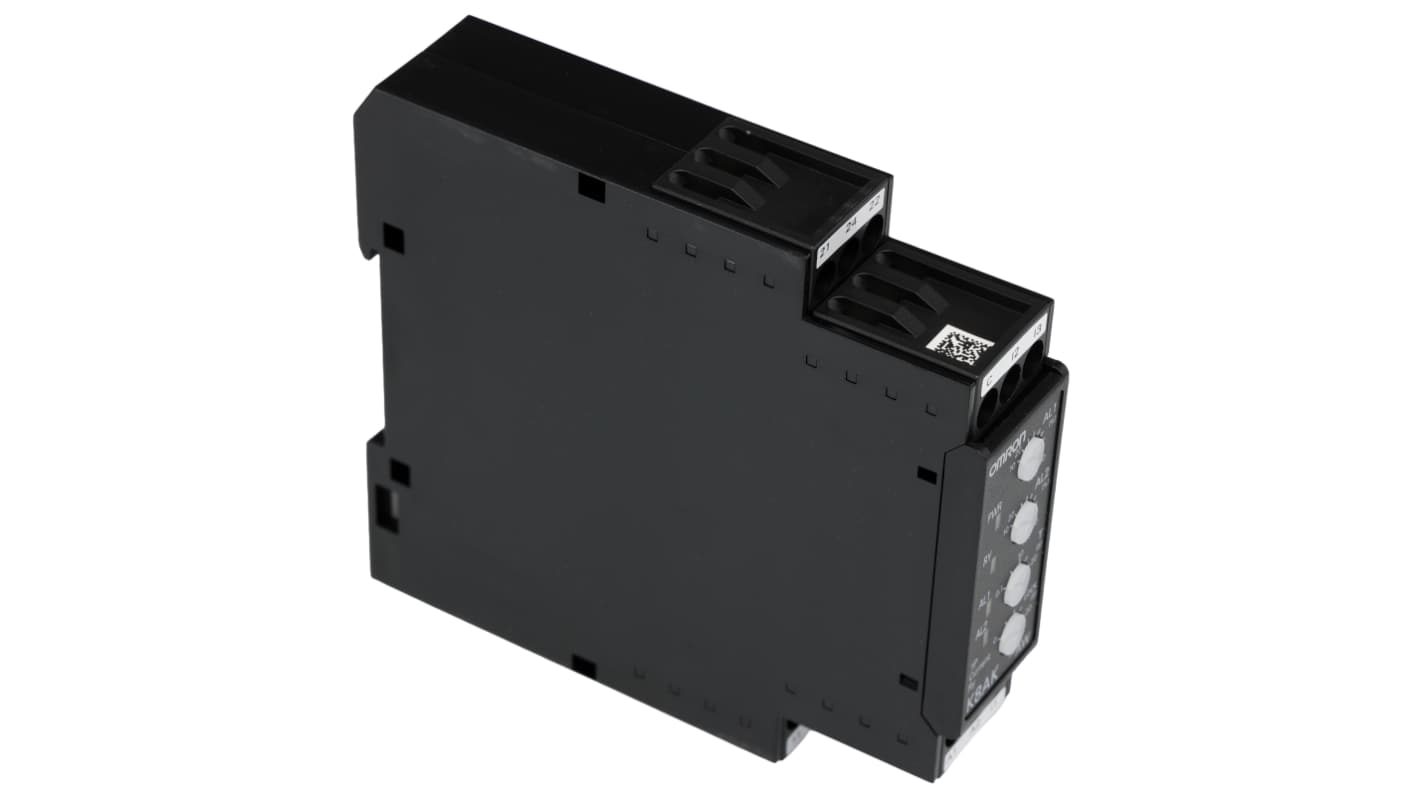

Omron Current Monitoring Relay, 1 Phase, SPDT, DIN Rail
- RS Stock No.:
- 819-3226
- Mfr. Part No.:
- K8AK-AW1 24VAC/DC
- Brand:
- Omron
2 In stock - FREE next working day delivery available
Added
Price Each
£107.90
(exc. VAT)
£129.48
(inc. VAT)
| Units | Per unit |
| 1 + | £107.90 |
- RS Stock No.:
- 819-3226
- Mfr. Part No.:
- K8AK-AW1 24VAC/DC
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
Omron K8AK-AS/AW Monitoring Relays
The Omron K8AK series monitoring relays are expertly designed for accurate and reliable monitoring for industrial facilities and equipment. The K8AK-AW/AS relays are suitable for undercurrent and overcurrent monitoring, which the K8AK-AW can do simultaneously.
Manual resetting and automatically resetting can be maintained by one relay.
Startup lock and operating time can be set individually.
Manual resetting and automatically resetting can be maintained by one relay.
Startup lock and operating time can be set individually.
K8AK-AW Series.
• Monitors over and under currents
• Use available current transformers (CT)
• One relay supports manual and automatic resetting
• Start-up lock and operating time can be set separately
• Two SPDT output contacts. 5 A at 250 V ac resistive load
• Output relay can switch between normally open and closed
• LED indicator can be used to monitor output status
• Inputs are isolated from the power supply
• Use available current transformers (CT)
• One relay supports manual and automatic resetting
• Start-up lock and operating time can be set separately
• Two SPDT output contacts. 5 A at 250 V ac resistive load
• Output relay can switch between normally open and closed
• LED indicator can be used to monitor output status
• Inputs are isolated from the power supply
K8AK-AW Models Available.
• K8AS-AW1 24 VAC/DC – Stock number 8193226
• K8AK-AW1 100-240 VAC - Stock number 8193223
• K8AK-AW2 24 VAC/DC - Stock number 8193239 (if using other current transformers do not exceed the overload capacity)
• K8AK-AW2 100-240 VAC - Stock number 8193220 (if using other current transformers do not exceed the overload capacity)
• K8AK-AW3 100-240 VAC - Stock number 8193232
• K8AK-AW3 – designed to be used with Omron K8AC-CT200L Current Transformer as direct input is not possible. Stock number 6118602
Added Features and Benefits.
• Power Supply – 200 to 240 V ac (24 V ac/dc
• Reset method – Manual / automatic (switchable), Manual reset turn OFF the power supply for 1 s plus.
• Operating time setting range 0.1 s to 30 s
• Start-up lock time range (LOCK) – 0 to 30 s – lock timer starts when the input reaches 30% plus of the set value. (enabled only for overcurrent operation)
• Power indicator – Green
• Relay output indicator – Yellow
• Alarm outputs – Red
• Output relays – 2 SPDT relay outputs NC (normally closed
• Case is PC and ABS, UL 94 V-0. Colour N1.5
• Weight 150 g
• DIN rail mounted
What is a Monitoring / Measuring Relay?
A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds.
Types of Monitoring Relays Available?
• Motor protection relays
• Temperature monitoring relays
• Water level control relays
Applications.
• Industrial facilities
• Industrial equipment
Standards
EN 60947-5-1 pollution level 2 installation category III, UL 508.
Terminal protection IP20.
Terminal protection IP20.
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Current |
| Electrical Phase | 1 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Minimum Current Sensed | 2mA |
| Maximum Current Sensed | 500mA |
| Current Sensitivity | Overcurrent, Undercurrent |
| Series | K8AK-AW |
| Operating Temperature Range | +60°C |
| Terminal Type | Screw |
| Minimum Operating Temperature | -20°C |
| Width | 22.5mm |
| Height | 90mm |
| Current Range | 10 → 100 mA, 2 → 20 mA, 50 → 500mA |
| Dimensions | 100 x 22.5 x 90mm |
| Maximum Operating Temperature | +60°C |
| Length | 100mm |
