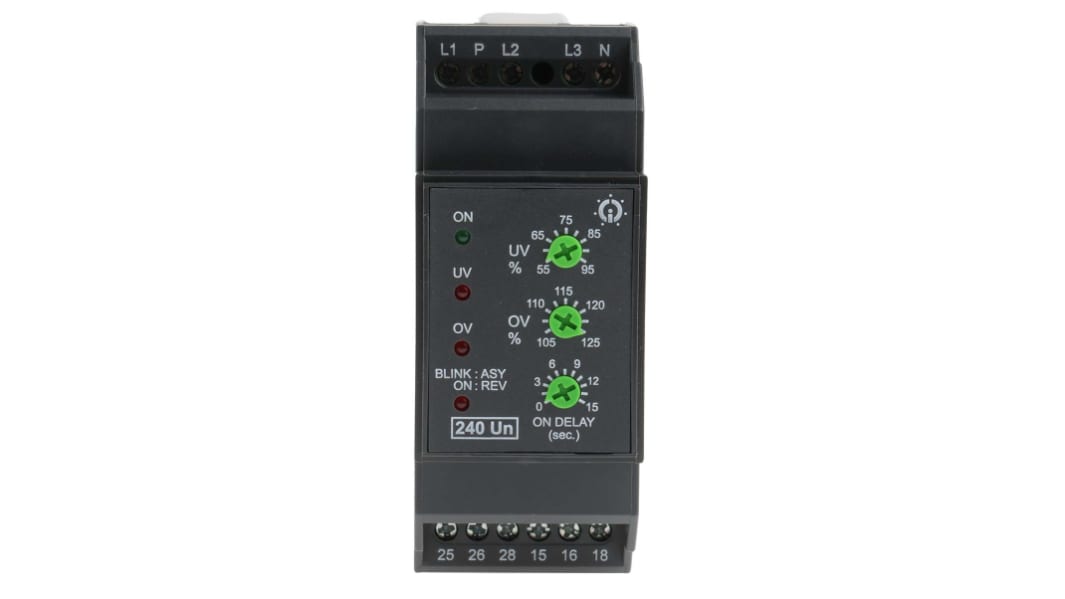

GIC Voltage Monitoring Relay, 1, 3 Phase, DPDT, DIN Rail
- RS Stock No.:
- 794-3948
- Mfr. Part No.:
- MG73BH
- Brand:
- GIC
Bulk discount available
Subtotal (1 unit)*
£48.35
(exc. VAT)
£58.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 37 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 14 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 2 | £48.35 |
3 + | £46.41 |
*price indicative
- RS Stock No.:
- 794-3948
- Mfr. Part No.:
- MG73BH
- Brand:
- GIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | GIC | |
Monitoring Application | Voltage | |
Electrical Phase | 1, 3 | |
Contact Configuration | DPDT | |
Voltage Sensitivity | Overvoltage, Undervoltage | |
Mounting Type | DIN Rail | |
Maximum Current Sensed | 5A | |
Time Delay | 5 s, 0 → 15s | |
Frequency Sensing Range | 48 → 63Hz | |
Series | SM 500 | |
Maximum Operating Temperature | +55°C | |
Width | 36mm | |
Minimum Operating Temperature | -10°C | |
Operating Temperature Range | +55°C | |
Length | 60mm | |
Height | 90mm | |
Current Range | Maximum of 5A | |
Dimensions | 60 x 36 x 90mm | |
Select all | ||
---|---|---|
Brand GIC | ||
Monitoring Application Voltage | ||
Electrical Phase 1, 3 | ||
Contact Configuration DPDT | ||
Voltage Sensitivity Overvoltage, Undervoltage | ||
Mounting Type DIN Rail | ||
Maximum Current Sensed 5A | ||
Time Delay 5 s, 0 → 15s | ||
Frequency Sensing Range 48 → 63Hz | ||
Series SM 500 | ||
Maximum Operating Temperature +55°C | ||
Width 36mm | ||
Minimum Operating Temperature -10°C | ||
Operating Temperature Range +55°C | ||
Length 60mm | ||
Height 90mm | ||
Current Range Maximum of 5A | ||
Dimensions 60 x 36 x 90mm | ||
- COO (Country of Origin):
- IN
GIC Supply Monitoring SM Range
GIC's profesional range of single and three phase supply monitors that are feature rich for industrial and agricultural use.
The range covers phase loss/phase reversal, phase unbalance
Available with under and over voltage
Available with adjustable time delay
Also available with LED indication
Base / din rail mounting
Available with under and over voltage
Available with adjustable time delay
Also available with LED indication
Base / din rail mounting
