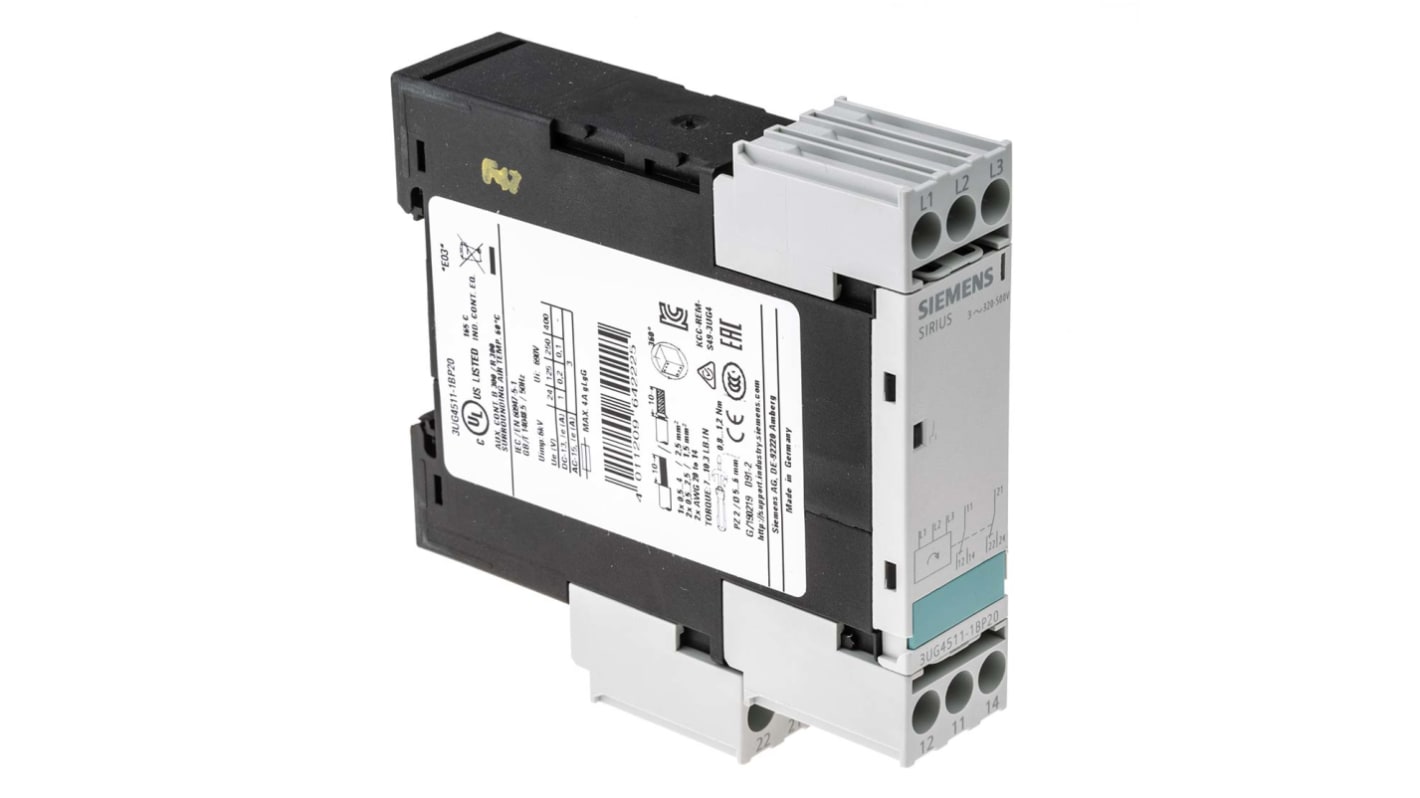

Name: Siemens Phase Monitoring Relay, 3 Phase, DPDT, DIN Rail
Brand: Siemens
SKU: 518-7275
Price: 138.17 GBP
Availability: Discontinued

Siemens 3UG4 Series Monitoring Relay, DIN Rail Mount, 91x22.5x92mm - 3UG4511-1BP20

This monitoring relay is designed to provide effective phase sequence control in 3-phase systems. With a robust construction and precise functionality, it offers essential insights into electrical phase conditions, making it a crucial tool in industrial and automation settings. Its accurate phase monitoring contributes to the safety and efficiency of electrical systems.

Features & Benefits

• Monitors 3-phase electrical systems for precise phase sequence detection
• Utilises DPDT contact configuration for flexible installation
• Integrates easily onto DIN rail for straightforward mounting
• Operates within a temperature range of -25 to +60°C
• Employs screw terminals for secure and dependable connections

Applications

• Protects machinery from motor damage due to phase loss
• Suitable for integration with control panels in electrical systems
• Applicable in manufacturing environments requiring precise phase detection
• Employed in electrical distribution systems for real-time monitoring

How does it operate within extreme temperatures?

It functions effectively between -25 and +60°C, maintaining performance in varied conditions.

What kind of electrical systems can this be integrated with?

It is ideal for all 3-phase electrical systems requiring phase monitoring.

Can it be mounted alongside other devices?

Yes, its DIN rail design allows for easy integration with other components.

What is the installation process like for this relay?

It can be easily mounted using screw terminals and a DIN rail connection.

Select all	Attribute	Value
	Brand	Siemens
	Monitoring Application	Phase
	Electrical Phase	3
	Contact Configuration	DPDT
	Mounting Type	DIN Rail
	Phase Sensitivity	Phase Sequence
	Series	3UG4
	Number of Poles	3
	Height	92mm
	Maximum Operating Temperature	+60°C
	Dimensions	91 x 22.5 x 92mm
	Operating Temperature Range	-25 → +60°C
	Width	22.5mm
	Standards Met	CCC, CE, EAC, UL
	Minimum Operating Temperature	-25°C
	Length	91mm
	Terminal Type	Screw

	Select all
	Brand Siemens
	Monitoring Application Phase
	Electrical Phase 3
	Contact Configuration DPDT
	Mounting Type DIN Rail
	Phase Sensitivity Phase Sequence
	Series 3UG4
	Number of Poles 3
	Height 92mm
	Maximum Operating Temperature +60°C
	Dimensions 91 x 22.5 x 92mm
	Operating Temperature Range -25 → +60°C
	Width 22.5mm
	Standards Met CCC, CE, EAC, UL
	Minimum Operating Temperature -25°C
	Length 91mm
	Terminal Type Screw
