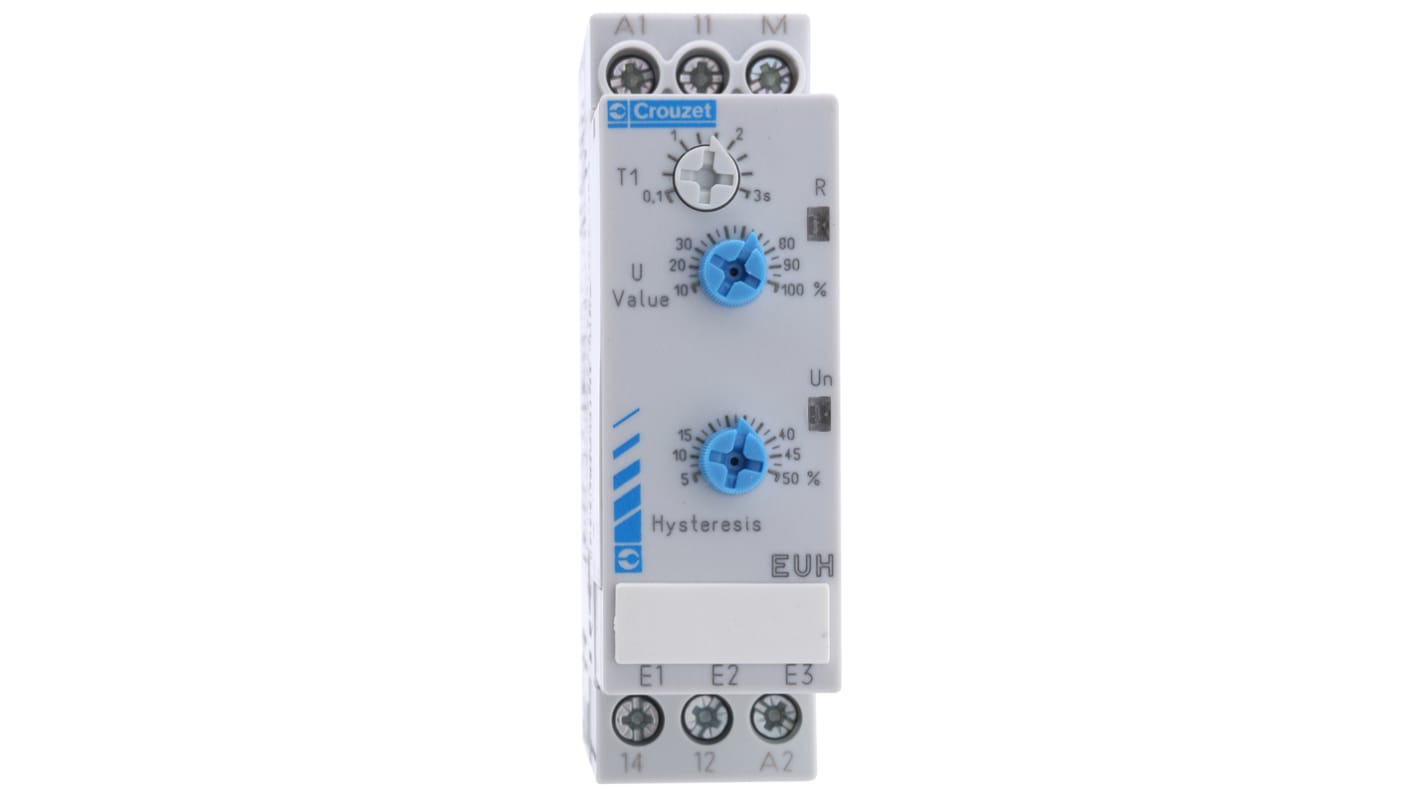

Crouzet Voltage Monitoring Relay, 1 Phase, SPDT, DIN Rail
- RS Stock No.:
- 463-3474
- Mfr. Part No.:
- 84872030
- Brand:
- Crouzet
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£123.45
(exc. VAT)
£148.14
(inc. VAT)
- RS Stock No.:
- 463-3474
- Mfr. Part No.:
- 84872030
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Crouzet | |
Monitoring Application | Voltage | |
Electrical Phase | 1 | |
Contact Configuration | SPDT | |
Mounting Type | DIN Rail | |
Time Delay | 0.1 → 3s | |
Series | EUH | |
Operating Temperature Range | +60°C | |
Maximum Voltage Sensed | 600V | |
Dimensions | 103.5 x 22.5 x 78mm | |
Maximum Operating Temperature | +60°C | |
Width | 22.5mm | |
Minimum Operating Temperature | -20°C | |
Length | 103.5mm | |
Height | 78mm | |
Select all | ||
---|---|---|
Brand Crouzet | ||
Monitoring Application Voltage | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Time Delay 0.1 → 3s | ||
Series EUH | ||
Operating Temperature Range +60°C | ||
Maximum Voltage Sensed 600V | ||
Dimensions 103.5 x 22.5 x 78mm | ||
Maximum Operating Temperature +60°C | ||
Width 22.5mm | ||
Minimum Operating Temperature -20°C | ||
Length 103.5mm | ||
Height 78mm | ||
- COO (Country of Origin):
- FR
Voltage Control Relays – EU
The control of AC and DC voltage
0.2V to 60V (EUL) and 10 to 600V (EUH) measurement ranges
Selection of over-voltage and under-voltage, by means of a dip switch
Delay on threshold over-run 0.1s to 3s
0.2V to 60V (EUL) and 10 to 600V (EUH) measurement ranges
Selection of over-voltage and under-voltage, by means of a dip switch
Delay on threshold over-run 0.1s to 3s
Note
Operating range quoted is a factor of supply voltage (Un)
