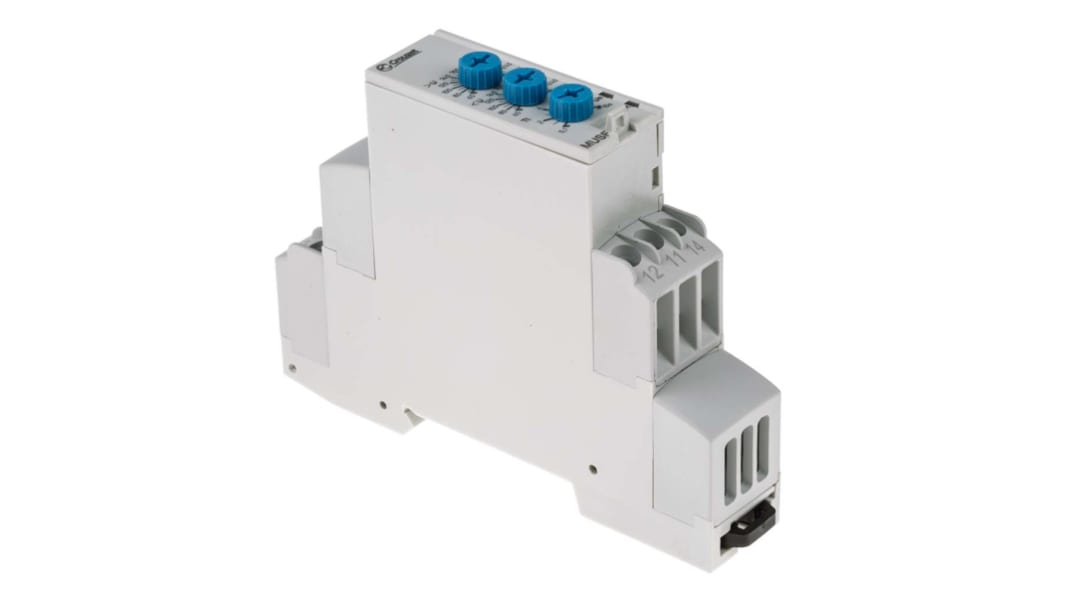

Crouzet Voltage Monitoring Relay, 1 Phase, SPDT, 65 → 260V ac/dc, DIN Rail
- RS Stock No.:
- 262-211
- Mfr. Part No.:
- 84872152
- Brand:
- Crouzet
Bulk discount available
Subtotal (1 unit)*
£113.22
(exc. VAT)
£135.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £113.22 |
| 5 - 9 | £107.57 |
| 10 - 24 | £101.90 |
| 25 - 49 | £96.24 |
| 50 + | £90.58 |
*price indicative
- RS Stock No.:
- 262-211
- Mfr. Part No.:
- 84872152
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Monitoring Application | Voltage | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Voltage Sensing Range | 65 → 260V ac/dc | |
| Voltage Sensitivity | Overvoltage, Undervoltage | |
| Mounting Type | DIN Rail | |
| Time Delay | 0.1 → 10s | |
| Series | MUSF | |
| Minimum Operating Temperature | -20°C | |
| Maximum Voltage Sensed | 260V ac/dc | |
| Width | 17.5mm | |
| Maximum Operating Temperature | +50°C | |
| Dimensions | 69 x 17.5 x 92.6mm | |
| Height | 92.6mm | |
| Length | 69mm | |
| Minimum Voltage Sensed | 65V ac/dc | |
| Operating Temperature Range | +50°C | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Monitoring Application Voltage | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Voltage Sensing Range 65 → 260V ac/dc | ||
Voltage Sensitivity Overvoltage, Undervoltage | ||
Mounting Type DIN Rail | ||
Time Delay 0.1 → 10s | ||
Series MUSF | ||
Minimum Operating Temperature -20°C | ||
Maximum Voltage Sensed 260V ac/dc | ||
Width 17.5mm | ||
Maximum Operating Temperature +50°C | ||
Dimensions 69 x 17.5 x 92.6mm | ||
Height 92.6mm | ||
Length 69mm | ||
Minimum Voltage Sensed 65V ac/dc | ||
Operating Temperature Range +50°C | ||
MUS series voltage control relays
MUS and MUSF voltage control relays monitor single phase DC network voltages. These products monitor their own supply voltage. MUS relays allow the operator to choose between two operating modes: Under/overvoltage and with or without fault latching. An adjustable time delay, on threshold crossing, provides immunity from transient phenomena, thus preventing spurious triggering of the output relay.
Control relay with power supply monitoring.
MUS: controls over- or undervoltage with a selectable
memory function.
MUSF: controls over- or undervoltage.
MUS: controls over- or undervoltage with a selectable
memory function.
MUSF: controls over- or undervoltage.
Adjustable time delays.
Control at 50 Hz, 60 Hz or DC voltage.
Measurement in true RMS.
LED status display.
