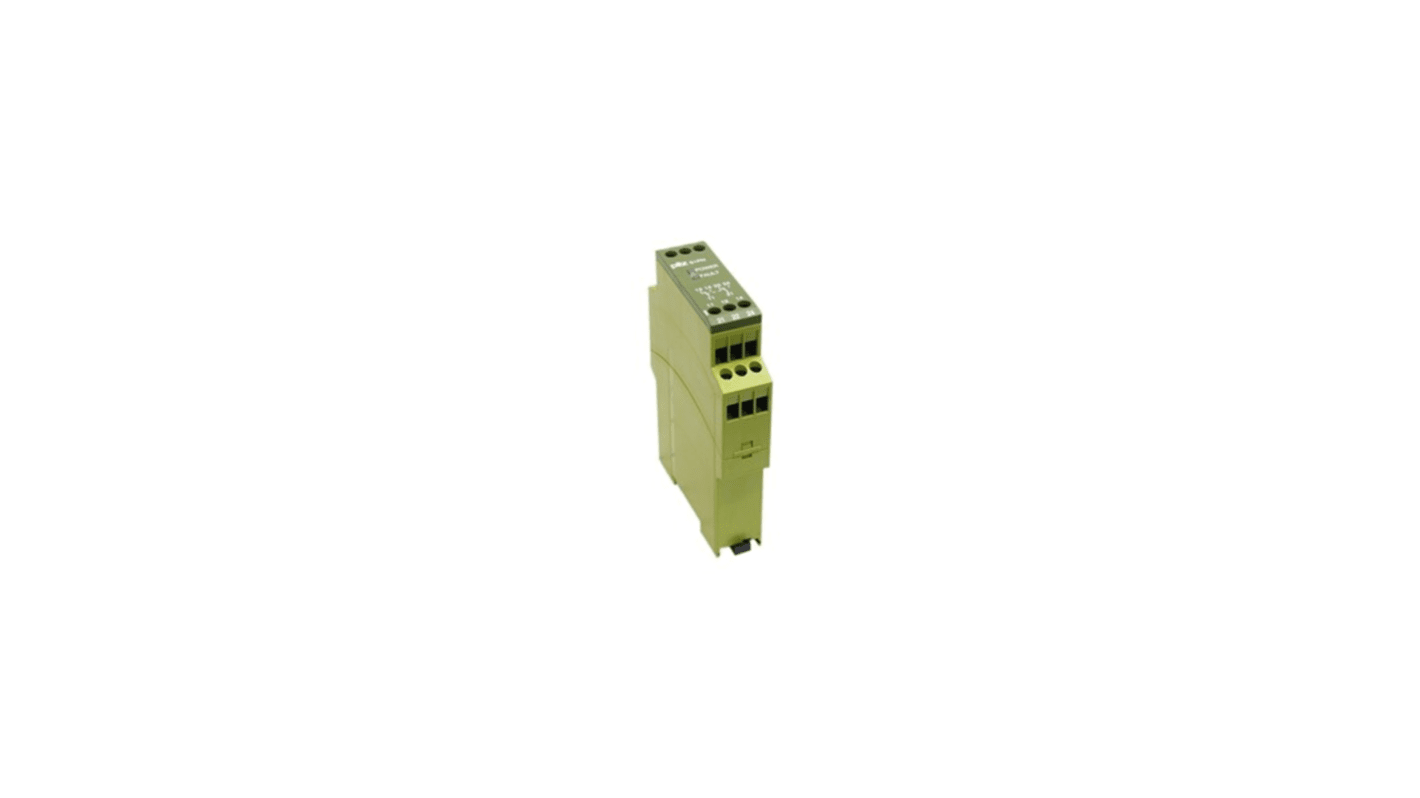

Pilz Monitoring Relay, 3 Phase, 400 to 500 V Monitor Range, DPDT, DIN Rail, 500V ac
- RS Stock No.:
- 287-6698
- Distrelec Article No.:
- 301-28-405
- Mfr. Part No.:
- 890210
- Brand:
- Pilz
Subtotal (1 unit)*
£125.29
(exc. VAT)
£150.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £125.29 |
*price indicative
- RS Stock No.:
- 287-6698
- Distrelec Article No.:
- 301-28-405
- Mfr. Part No.:
- 890210
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Product Type | Monitoring Relay | |
| Function | Phase Sequence | |
| Electrical Phase | 3 | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Switching Voltage | 240V | |
| Power Consumption | 15VA | |
| Terminal Type | Screw | |
| IP Rating | IP20, IP40, IP54 | |
| Monitoring Voltage Range | 400 to 500 V | |
| Contact Current | 6A | |
| Minimum Operating Temperature | -15°C | |
| Supply AC Voltage | 500V ac | |
| Maximum Operating Temperature | 55°C | |
| Width | 22.5mm | |
| Series | S1PN | |
| Height | 87mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Pilz | ||
Product Type Monitoring Relay | ||
Function Phase Sequence | ||
Electrical Phase 3 | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Switching Voltage 240V | ||
Power Consumption 15VA | ||
Terminal Type Screw | ||
IP Rating IP20, IP40, IP54 | ||
Monitoring Voltage Range 400 to 500 V | ||
Contact Current 6A | ||
Minimum Operating Temperature -15°C | ||
Supply AC Voltage 500V ac | ||
Maximum Operating Temperature 55°C | ||
Width 22.5mm | ||
Series S1PN | ||
Height 87mm | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The S1PN phase sequence monitoring relay is a reliable solution for detecting the phase field of a three-phase supply. With features like phase failure monitoring, fuse monitoring, and extensive voltage range, this relay ensures the safety of your plant operations. Its compact design and versatile applications make it an essential component for industrial environments.
Detects phase field direction in a three-phase supply
Provides 2 auxiliary contacts for enhanced functionality
AgCdO contact material with gold plating for low load range
Max. 6 A quick or max. 4 A slow contact fuse protection
Delay-on energisation and de-energisation for optimal performance
IP54 mounting protection for durability in harsh conditions
