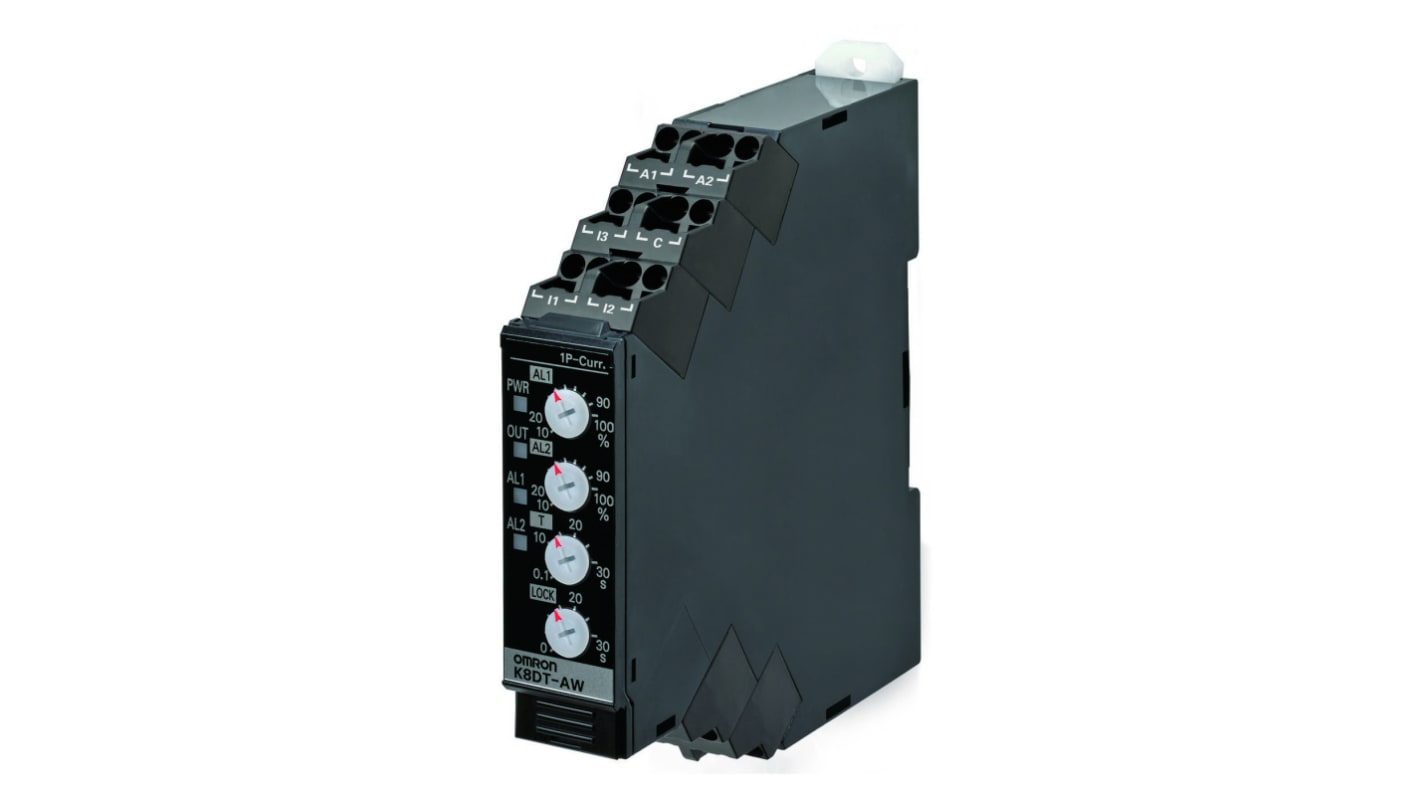

Omron Monitoring Relay, 3 Phase, Screw, DIN Rail, 500mA to 2mA, 100V ac, 240 V ac
- RS Stock No.:
- 217-6263
- Mfr. Part No.:
- K8DT-AW1TA
- Brand:
- Omron
Subtotal (1 unit)*
£112.51
(exc. VAT)
£135.01
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £112.51 |
*price indicative
- RS Stock No.:
- 217-6263
- Mfr. Part No.:
- K8DT-AW1TA
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Mount Type | Screw, DIN Rail | |
| Minimum Current Sensed | 500mA | |
| Maximum Current Sensed | 2mA | |
| Power Consumption | 2.5VA | |
| Current Sensitivity | Overcurrent, Undercurrent | |
| Terminal Type | Push-in Plus | |
| IP Rating | IP20 | |
| Time Delay | 0.1 to 30 s | |
| Relay Contact Current | 5A | |
| Supply AC Voltage | 100, 240V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Series | K8DT-AW | |
| Width | 17.5mm | |
| Standards/Approvals | UL, EMC, RoHS | |
| Height | 100mm | |
| Length | 90mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Mount Type Screw, DIN Rail | ||
Minimum Current Sensed 500mA | ||
Maximum Current Sensed 2mA | ||
Power Consumption 2.5VA | ||
Current Sensitivity Overcurrent, Undercurrent | ||
Terminal Type Push-in Plus | ||
IP Rating IP20 | ||
Time Delay 0.1 to 30 s | ||
Relay Contact Current 5A | ||
Supply AC Voltage 100, 240V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Series K8DT-AW | ||
Width 17.5mm | ||
Standards/Approvals UL, EMC, RoHS | ||
Height 100mm | ||
Length 90mm | ||
The Omron Monitoring Relay, Solid State Relay is an industry grade solution for monitoring and control and latching of circuits.
Reduces Wiring work
High Switching Power
