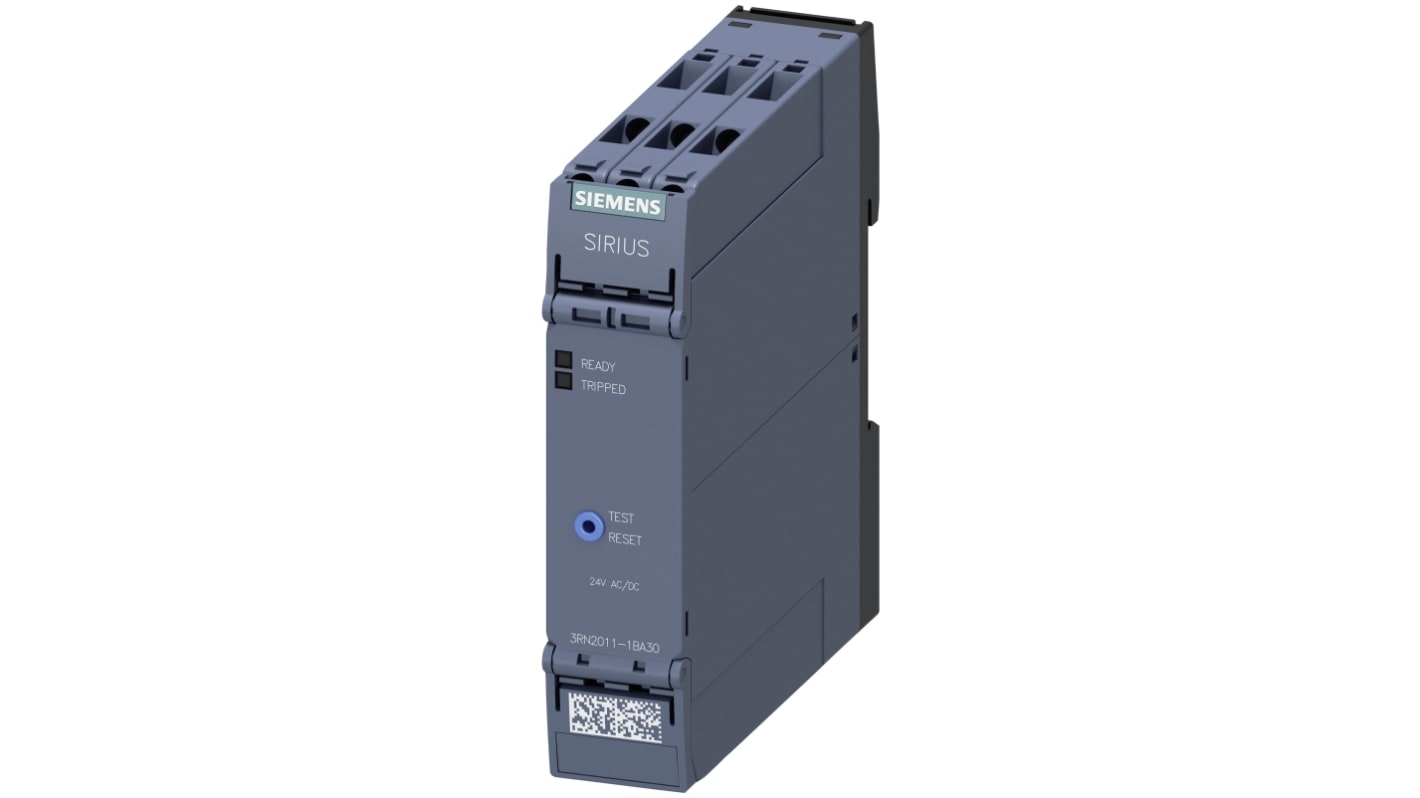

Siemens Thermistor Motor Protection Monitoring Relay, DPDT, DIN Rail
- RS Stock No.:
- 175-2281
- Mfr. Part No.:
- 3RN2011-1BA30
- Brand:
- Siemens
Subtotal (1 unit)*
£91.71
(exc. VAT)
£110.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £91.71 |
*price indicative
- RS Stock No.:
- 175-2281
- Mfr. Part No.:
- 3RN2011-1BA30
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Monitoring Application | Thermistor motor temperature protection | |
Contact Configuration | DPDT | |
Voltage Sensitivity | Motor Voltage | |
Mounting Type | DIN Rail | |
Series | 3RN2 | |
Hazardous Area Certification | ATEX | |
Width | 22.5mm | |
Maximum Operating Temperature | +60°C | |
Standards Met | CE | |
Terminal Type | Screw | |
Dimensions | 90 x 22.5 x 100mm | |
Operating Temperature Range | -25 → +60°C | |
Current Range | 0.2 → 1A | |
Height | 100mm | |
Minimum Operating Temperature | -25°C | |
Length | 90mm | |
Select all | ||
---|---|---|
Brand Siemens | ||
Monitoring Application Thermistor motor temperature protection | ||
Contact Configuration DPDT | ||
Voltage Sensitivity Motor Voltage | ||
Mounting Type DIN Rail | ||
Series 3RN2 | ||
Hazardous Area Certification ATEX | ||
Width 22.5mm | ||
Maximum Operating Temperature +60°C | ||
Standards Met CE | ||
Terminal Type Screw | ||
Dimensions 90 x 22.5 x 100mm | ||
Operating Temperature Range -25 → +60°C | ||
Current Range 0.2 → 1A | ||
Height 100mm | ||
Minimum Operating Temperature -25°C | ||
Length 90mm | ||
- COO (Country of Origin):
- DE
Siemens Monitoring Relay, DPDT Contact Configuration, Thermistor Motor Temperature Protection Monitoring - 3RN2011-1BA30
This monitoring relay is intended for thermistor motor temperature protection and is part of the SIRIUS 3RN2 category. It has a compact design that mounts easily onto a standard 35mm DIN rail, with dimensions of 90x22.5x100mm, making it suitable for a variety of industrial settings.
Features & Benefits
• Dual-changeover contacts allow for various control options
• ATEX certification for safety in hazardous environments
• Current range from 0.2 to 1A for accurate monitoring
• Screw terminals provide secure and straightforward connections
• Galvanic isolation safeguards sensitive components
• LED indicators offer real-time status updates
• ATEX certification for safety in hazardous environments
• Current range from 0.2 to 1A for accurate monitoring
• Screw terminals provide secure and straightforward connections
• Galvanic isolation safeguards sensitive components
• LED indicators offer real-time status updates
Applications
• Suitable for systems requiring motor temperature monitoring
• Used in equipment for industrial temperature protection
• Detects faults in thermistor sensor circuits
• Used in equipment for industrial temperature protection
• Detects faults in thermistor sensor circuits
Can it be used in hazardous locations?
Yes, it has ATEX certification ensuring safety in such environments.
Is it easy to install?
Yes, it mounts securely onto standard 35mm DIN rails.
What voltage range does it support?
It operates on a control supply voltage of 24V AC/DC.
Can it monitor wire integrity?
Yes, it includes features for short circuit and wire break monitoring.
