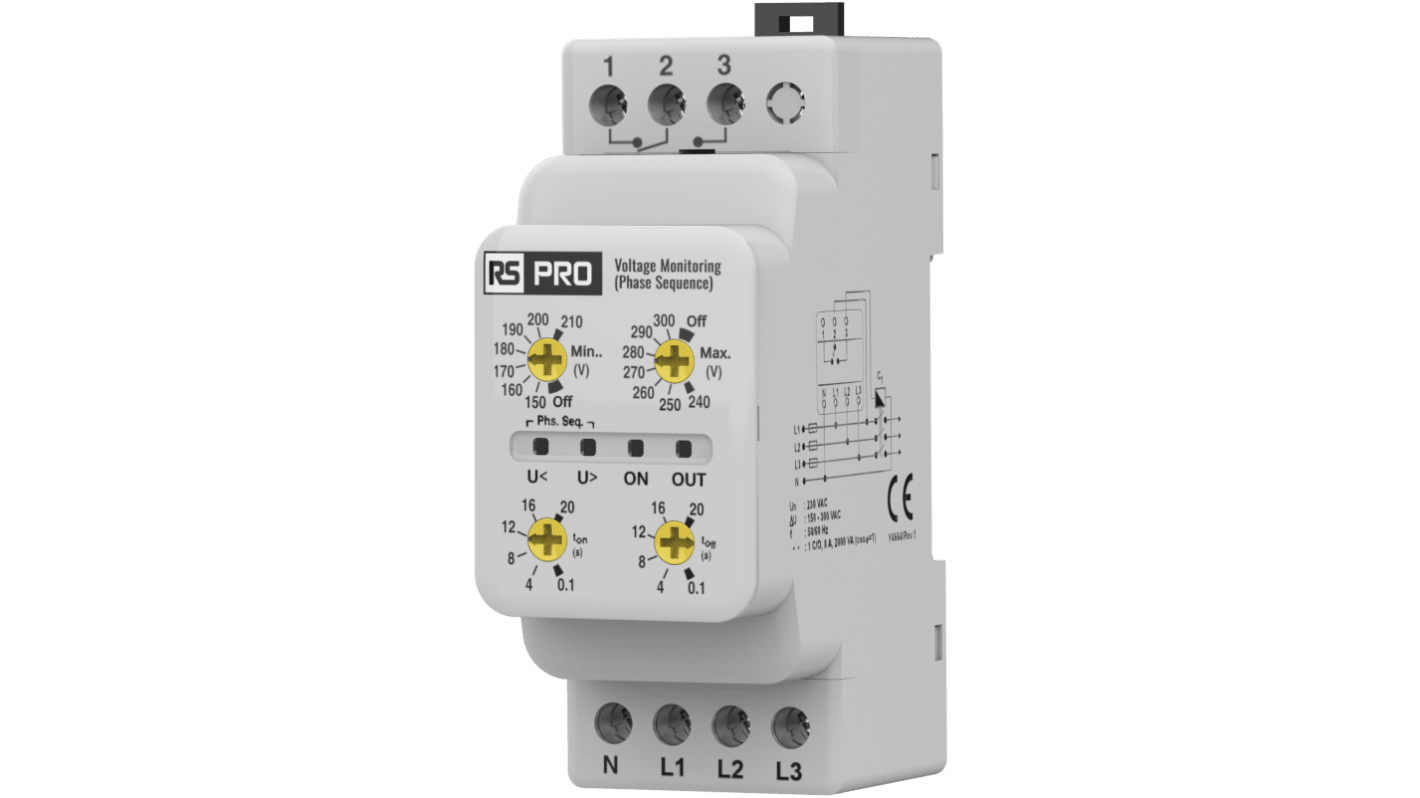

RS PRO Phase/Voltage Monitoring Relays, 1 Phase, 150 to 300 V ac Monitor Range, 1 x 8A CO Relay Output, DIN Rail, 230 V

RS Stock No.:: 558-901
Brand:: RS PRO

RS PRO Phase/Voltage Monitoring Relays, 1 Phase, 150 to 300 V ac Monitor Range, 1 x 8A CO Relay Output, DIN Rail, 230 V

Subtotal (1 unit)*

£36.17

(exc. VAT)

£43.40

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

31 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£36.17

*price indicative

RS Stock No.:: 558-901
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Phase/Voltage Monitoring Relays
	Electrical Phase	1
	Function	Undervoltage Monitoring
	Contact Configuration	1 x 8A CO Relay Output
	Mount Type	DIN Rail
	Power Consumption	6VA
	Terminal Type	Screw
	IP Rating	IP40, IP20
	Supply AC Voltage	230 V ac
	Minimum Operating Temperature	-5°C
	Contact Current	8A
	Monitoring Voltage Range	150 to 300 V ac
	Supply DC Voltage	270 V dc
	Maximum Operating Temperature	55°C
	Standards/Approvals	EC 60529, EC 60255-3, EC 60870-5, EC 60255-6
	Length	59mm
	Width	36 mm
	Height	90mm

	Select all
	Brand RS PRO
	Product Type Phase/Voltage Monitoring Relays
	Electrical Phase 1
	Function Undervoltage Monitoring
	Contact Configuration 1 x 8A CO Relay Output
	Mount Type DIN Rail
	Power Consumption 6VA
	Terminal Type Screw
	IP Rating IP40, IP20
	Supply AC Voltage 230 V ac
	Minimum Operating Temperature -5°C
	Contact Current 8A
	Monitoring Voltage Range 150 to 300 V ac
	Supply DC Voltage 270 V dc
	Maximum Operating Temperature 55°C
	Standards/Approvals EC 60529, EC 60255-3, EC 60870-5, EC 60255-6
	Length 59mm
	Width 36 mm
	Height 90mm

COO (Country of Origin):: TR

RS PRO Voltage Monitoring Relay, 1-Phase or 3-Phase Systems

RS PRO Voltage Monitoring Relays are designed to protect electrical systems from voltage fluctuations. They are essential for safeguarding 1-phase or 3-phase systems by detecting phase loss, incorrect phase sequence, and controlling under/over voltage with adjustable limits.

Features and Benefits

Protection Against Under/Over Voltage: Ensures system stability by preventing damage from voltage irregularities

DIN Rail Mounting: Simplifies installation and integration into existing systems

230 VAC or 400 VAC Operating Voltage: Offers flexibility for various application requirements

Adjustable Delay Time: Provides customisable protection with off delay and on delay time adjustment between 0.1-20 seconds

IP20 Terminals and IP40 Front Panel: Enhances safety with robust protection against dust and accidental contact

1 X 8A CO or NO Relay Output: Ensures reliable switching for control applications

Applications

Protection of compressors

Electrical motors

Capacitors in compensation systems

Air conditioning and industrial cooling systems

Telecom base stations

Railway applications

Additional Information

Conforms to CE, cULus, DEKRA, IEC, IQNet, ISO EN 9000 standards

Screw terminal type for secure connections

Voltage sensing range of 150-300 V AC

Phase sensitivity for phase loss and sequence detection

Operating temperature range from -5 to 55 °C
