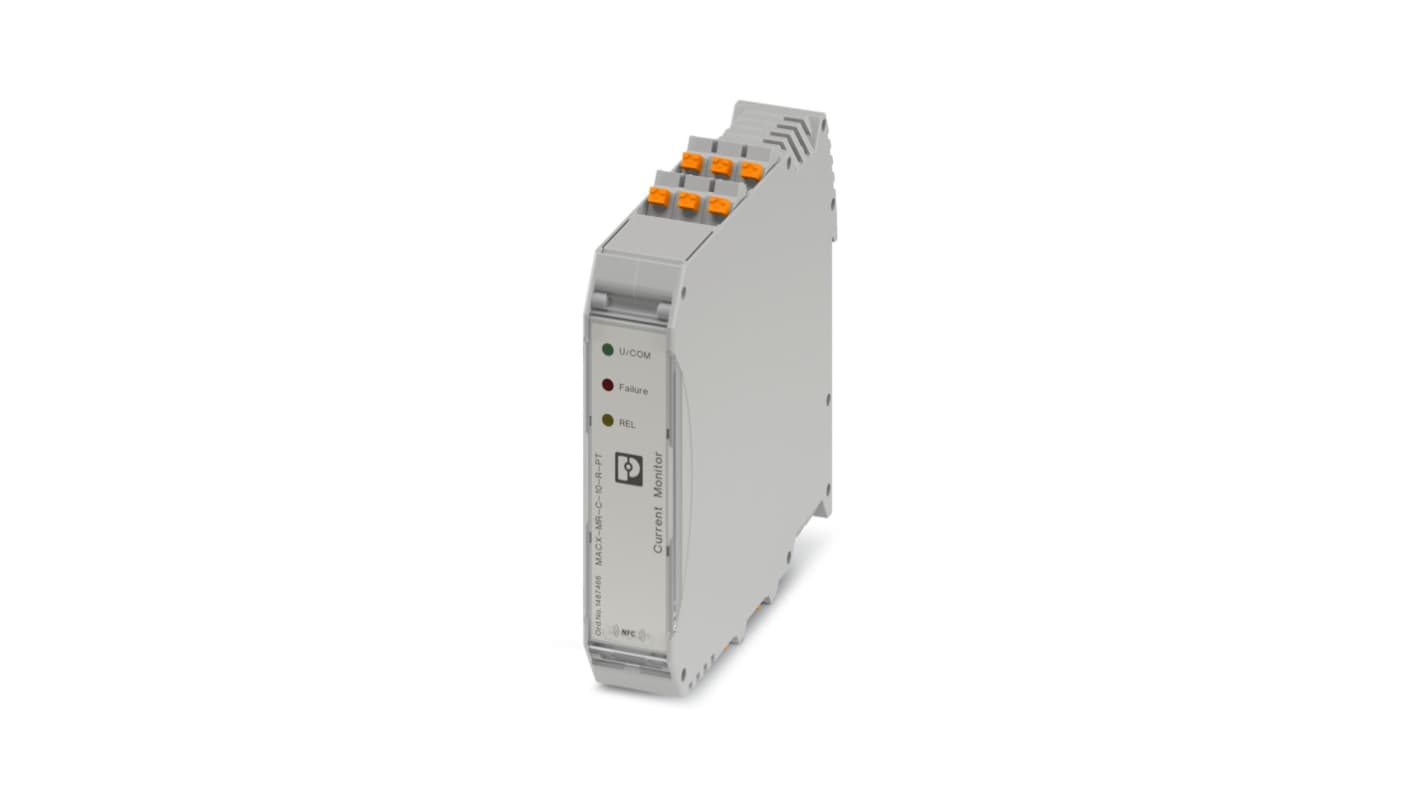

Phoenix Contact Monitoring Relay, 3 Phase, 0/250 V ac Monitor Range, 1PDT, DIN Rail, 24V ac, 240 V ac 240 V dc
- RS Stock No.:
- 483-112
- Mfr. Part No.:
- 1487466
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£191.18
(exc. VAT)
£229.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £191.18 |
*price indicative
- RS Stock No.:
- 483-112
- Mfr. Part No.:
- 1487466
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Function | Window, Undercurrent, Sparkproof | |
| Contact Configuration | 1PDT | |
| Mount Type | DIN Rail | |
| Switching Voltage | 250V ac | |
| Power Consumption | 15W | |
| IP Rating | IP20 | |
| Supply AC Voltage | 24, 240V ac | |
| Minimum Operating Temperature | -40°C | |
| Monitoring Voltage Range | 0/250 V ac | |
| Supply DC Voltage | 240 V dc | |
| Contact Current | 8A | |
| Maximum Operating Temperature | 70°C | |
| Length | 114mm | |
| Height | 109mm | |
| Standards/Approvals | EN 300 330, UL 508, GB/T 14048.5, EN 60255-27, EN 62311, EN 50155, EN/IEC 63000, EN 60947-5-1, EN 301 489-1, EN 301 489-3, GB/T 25119, CE/UKCA | |
| Width | 22.5mm | |
| Series | MACX-MR-C-10-R-PT | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Function Window, Undercurrent, Sparkproof | ||
Contact Configuration 1PDT | ||
Mount Type DIN Rail | ||
Switching Voltage 250V ac | ||
Power Consumption 15W | ||
IP Rating IP20 | ||
Supply AC Voltage 24, 240V ac | ||
Minimum Operating Temperature -40°C | ||
Monitoring Voltage Range 0/250 V ac | ||
Supply DC Voltage 240 V dc | ||
Contact Current 8A | ||
Maximum Operating Temperature 70°C | ||
Length 114mm | ||
Height 109mm | ||
Standards/Approvals EN 300 330, UL 508, GB/T 14048.5, EN 60255-27, EN 62311, EN 50155, EN/IEC 63000, EN 60947-5-1, EN 301 489-1, EN 301 489-3, GB/T 25119, CE/UKCA | ||
Width 22.5mm | ||
Series MACX-MR-C-10-R-PT | ||
- COO (Country of Origin):
- CN
The Phoenix Contact monitoring relay offers versatile functionality suitable for modern automation needs. Featuring essential monitoring capabilities, it effectively addresses overcurrent, undercurrent, and window monitoring functions. Its flexibility is enhanced with a wide supply voltage range, accommodating both AC and DC applications. The product seamlessly integrates into various systems while supporting essential communication protocols such as Modbus/RTU over RS-485, ensuring reliable data transmission.
Facilitates easy integration with plug in connection options
Designed for use in harsh environments boasting a high degree of protection
Features a compact design for space efficient installation
Ensures operational reliability with a long service life
Includes a failure record storage function for enhanced monitoring
