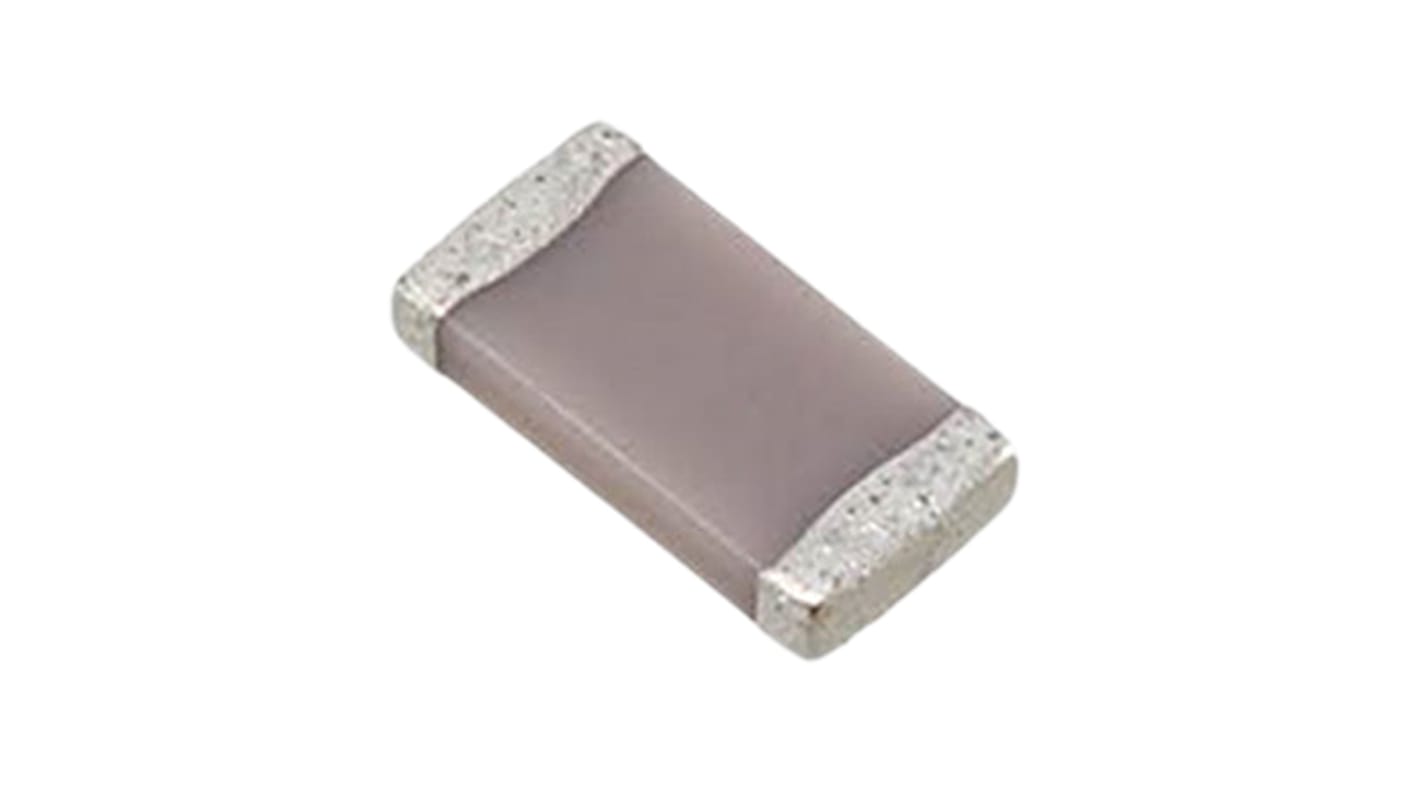

TDK 10 μF Multilayer Ceramic Capacitor, 50 V dc, ±10 %, Surface

RS Stock No.:: 915-5373
Mfr. Part No.:: CGA5L3X5R1H106K160AB
Brand:: TDK

TDK 10 μF Multilayer Ceramic Capacitor, 50 V dc, ±10 %, Surface

View this category

Bulk discount available

Subtotal (1 pack of 10 units)*

£4.65

(exc. VAT)

£5.58

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

190 unit(s) ready to ship from another location
Plus 27,930 unit(s) shipping from 12 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
10 - 40	£0.465	£4.65
50 - 90	£0.437	£4.37
100 - 240	£0.408	£4.08
250 - 490	£0.382	£3.82
500 +	£0.348	£3.48

*price indicative

RS Stock No.:: 915-5373
Mfr. Part No.:: CGA5L3X5R1H106K160AB
Brand:: TDK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TDK
	Product Type	Multilayer Ceramic Capacitor
	Capacitance	10μF
	Voltage	50 V dc
	Package/Case	1206
	Mount Type	Surface
	Packaging	Tape & Reel
	Dielectric	X5R
	Tolerance	±10 %
	Automotive Standard	AEC-Q200
	Termination Type	Surface Mount
	Minimum Operating Temperature	-55°C
	Series	CGA
	Length	3.2mm
	Height	1.6mm
	Width	1.6 mm
	Standards/Approvals	No
	Maximum Operating Temperature	85°C

	Select all
	Brand TDK
	Product Type Multilayer Ceramic Capacitor
	Capacitance 10μF
	Voltage 50 V dc
	Package/Case 1206
	Mount Type Surface
	Packaging Tape & Reel
	Dielectric X5R
	Tolerance ±10 %
	Automotive Standard AEC-Q200
	Termination Type Surface Mount
	Minimum Operating Temperature -55°C
	Series CGA
	Length 3.2mm
	Height 1.6mm
	Width 1.6 mm
	Standards/Approvals No
	Maximum Operating Temperature 85°C

Datasheet

COO (Country of Origin):: JP

TDK CGA Automotive 1206 series, X5R, X7R and Y5V Dielectric

From TDK, the CGA Series of Multilayer Ceramic Capacitors (MLCCs) provides a highly reliable solution. Utilising precision technology, this series of MLCCs is constructed with multiple thin ceramic dielectric layers enabling high capacitance. These MLCCs feature low ESR ensuring low self-heating and high ripple resistance. CGA multilayer ceramic capacitors also have low ESL and excellent frequency characteristics.

Features and Benefits:

Excellent heat resistance;Greater mechanical strength;Superior reliability;Guaranteed performance from a matured manufacturing process;Available with a range of dielectrics;Suitable for high accuracy automatic mounting;Low stray capacitance

Applications:

These MLCCs are AEC-Q200 qualified and suitable for automotive applications. Typical applications include automotive battery line smoothing, sensor modules and engine control units. CAG Series ceramic capacitors are Ideal for anti-lock brake systems and automotive infotainment systems. Other recommended applications include smart meters, smart grids, solar inverters, AC-DC battery chargers, transportation and agriculture.

1206 Range

C0G (NP0) is the most popular formulation of the "temperature-compensating", EIA Class I ceramic materials

X7R formulations are called "temperature stable" Ceramics and fall into EIA Class II materials

Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V Ideal for decoupling applications
