- RS Stock No.:
- 835-4065
- Mfr. Part No.:
- C0805X472J2GACAUTO
- Brand:
- KEMET
2775 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.24
(exc. VAT)
£0.29
(inc. VAT)
Units | Per unit | Per Pack* |
25 - 100 | £0.24 | £6.00 |
125 + | £0.12 | £3.00 |
*price indicative |
- RS Stock No.:
- 835-4065
- Mfr. Part No.:
- C0805X472J2GACAUTO
- Brand:
- KEMET
Legislation and Compliance
Product Details

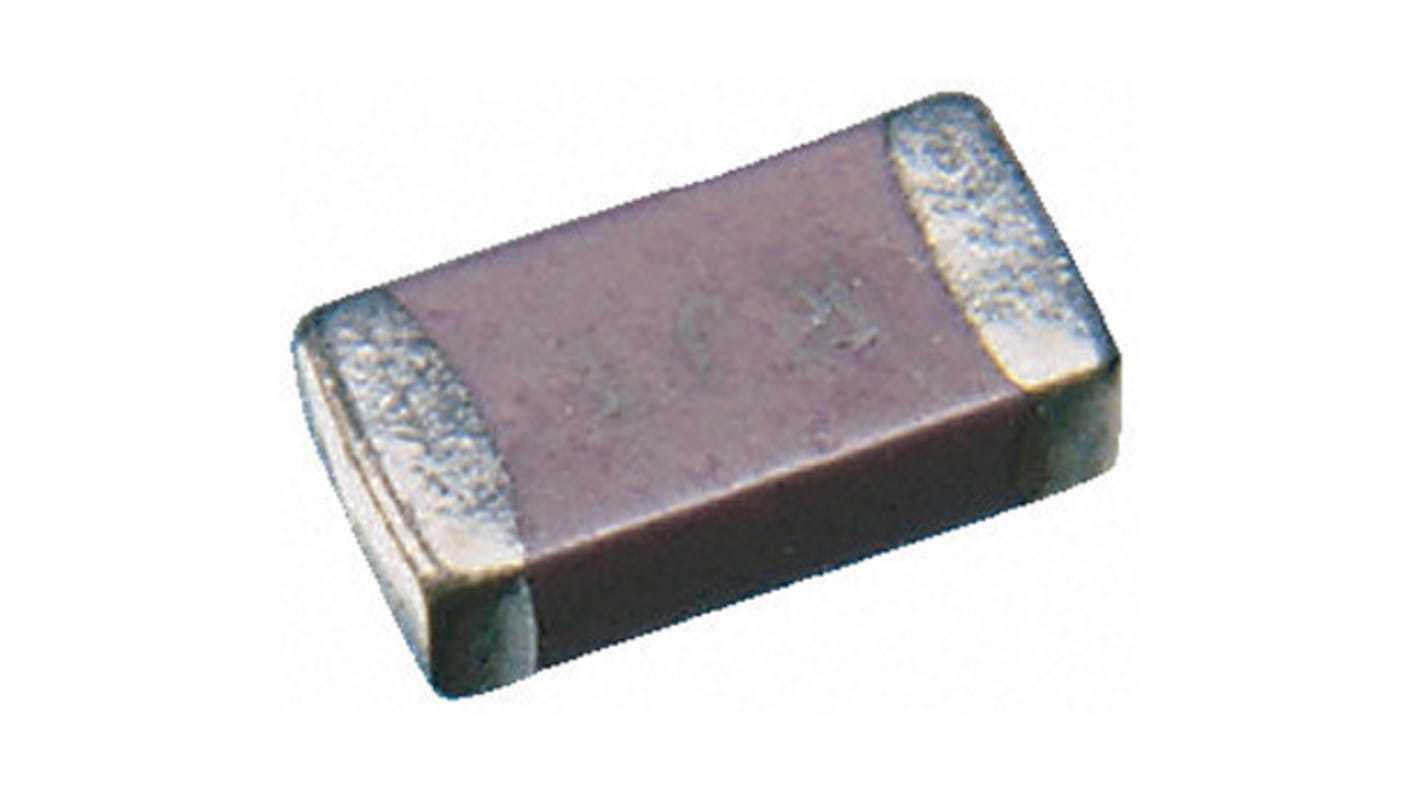

KEMET 0805 Automotive Grade FT-CAP SMT MLCC Ceramic Capacitors
0805 size AEC–Q200 automotive grade FT-CAP MLCC SMT ceramic capacitors that offer flex performance of up to 5mm through the use of a flexible termination system that minimizes the transfer of board flex stress to the component body. These FT-CAP MLCC SMT ceramic capacitors have pliable and conductive silver epoxy between the base metal and nickel barrier layers of the termination system which inhibits the transfer of board stress to the ceramic body reducing the occurence of flex cracks which can result in low IR or short circuit failiures. In addtion these automotive grade FT-CAP MLCC cermamic capacitors have a wide operating temperature range of -55 to + 125°C , low ESR and ESL, high thermal stability and high ripple current capability. Typical applications for these FT-CAP MLCC cermamic capacitors include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression and blocking and energy storage in critical and safety relevant circuits without (integrated) current limitation.
0805 Range
Nickel barrier terminations covered with a layer of plated Tin (NiSn). Applications include mobile phones, video and tuner designs, COG/NPO is the most popular formulation of the "temperature compensating", EIA Class I ceramic materials, X7R, X5R formulations are called "temperature stable" ceramics and fall into the EIA Class II materials, Y5V, Z5U formulations are for general purpose use in a limited temperature range, EIA Class II materials; these characteristics are ideal for decoupling applications.
Specifications
Attribute | Value |
---|---|
Capacitance | 4.7nF |
Voltage | 200V dc |
Package/Case | 0805 (2012M) |
Mounting Type | Surface Mount |
Dielectric | C0G |
Tolerance | ±5% |
Dimensions | 2 x 1.25 x 0.9mm |
Length | 2mm |
Depth | 1.25mm |
Height | 0.9mm |
Series | X FT-CAP |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
- RS Stock No.:
- 835-4065
- Mfr. Part No.:
- C0805X472J2GACAUTO
- Brand:
- KEMET
