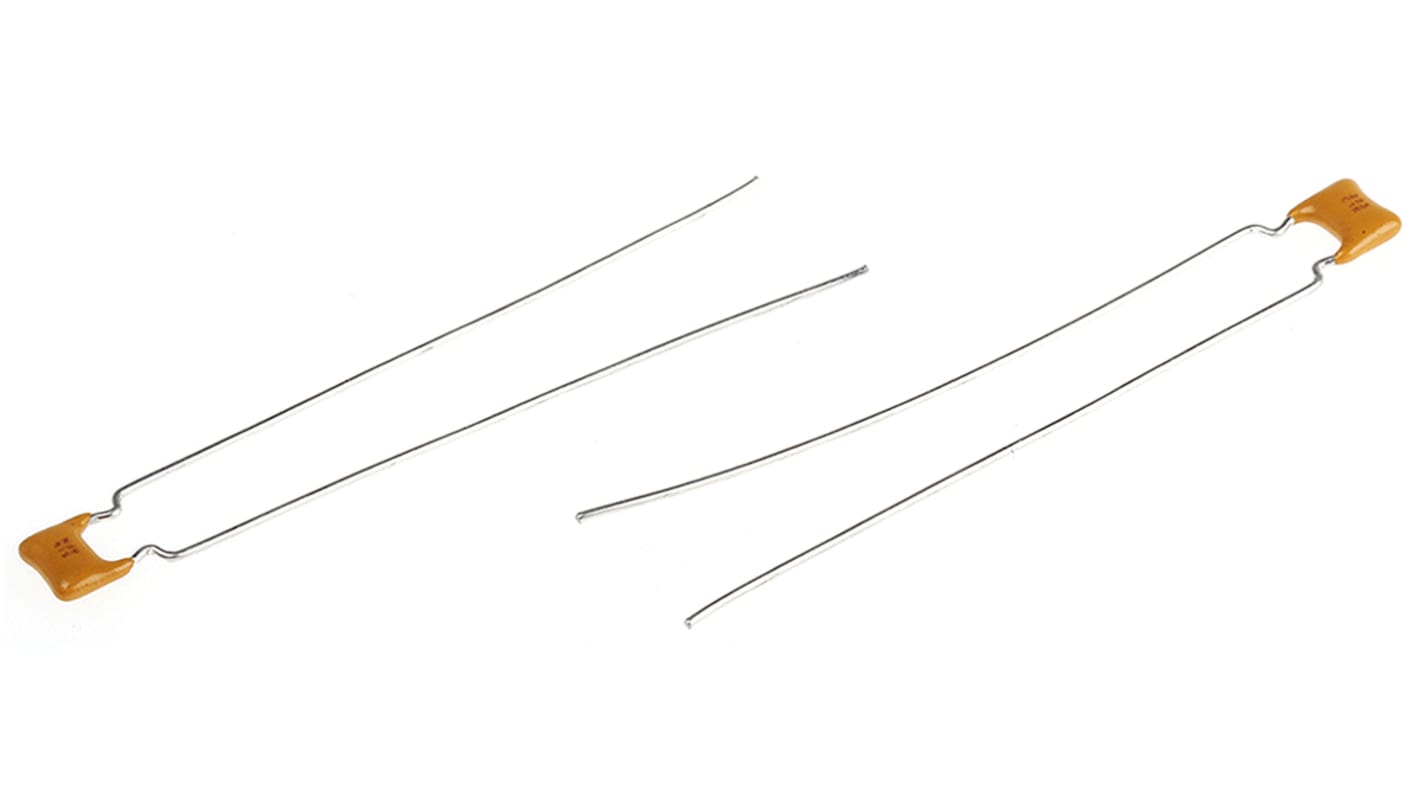

KYOCERA AVX 22nF Multilayer Ceramic Capacitor MLCC, 100V dc V, ±10% , Through Hole
- RS Stock No.:
- 537-3814
- Mfr. Part No.:
- SR211C223KAR
- Brand:
- KYOCERA AVX
125 In stock - FREE next working day delivery available
25 available from Europe for delivery within 1 working day(s).
Price Each (In a Pack of 25)
£0.211
(exc. VAT)
£0.253
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.211 | £5.275 |
| 125 - 475 | £0.134 | £3.35 |
| 500 - 1225 | £0.125 | £3.125 |
| 1250 + | £0.106 | £2.65 |
*price indicative
- RS Stock No.:
- 537-3814
- Mfr. Part No.:
- SR211C223KAR
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
Product Details
SR Series
AVX SR series radial ceramic multilayer capacitors are suited to commodity applications with voltage requirements up to 500v and where leaded is preferred over SMD.These leaded capacitors have excellent thermal shock and vibration resistance. Voltages range from 50 V to 500 V.Temperature range up to 125°C. Suitable for wave soldering.
X7R Dielectric
Suitable for bypass, decoupling, filtering, sample and hold and timing circuits
Specifications
Attribute | Value |
|---|---|
| Capacitance | 22nF |
| Voltage | 100V dc |
| Mounting Type | Through Hole |
| Dielectric | X7R |
| Tolerance | ±10% |
| Dimensions | 5.08 x 3.175 x 5.08mm |
| Length | 5.08mm |
| Depth | 3.18mm |
| Height | 5.08mm |
| Series | SR |
| Minimum Operating Temperature | -55°C |
| Lead Spacing | 5 mm |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +125°C |
