TDK 680 pF Multilayer Ceramic Capacitor, 100V dc, +5 %, Through Hole Radial
- RS Stock No.:
- 194-0595
- Mfr. Part No.:
- FG28C0G2A681JNT00
- Brand:
- TDK
Bulk discount available
Subtotal (1 pack of 10 units)*
£1.24
(exc. VAT)
£1.49
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.124 | £1.24 |
| 100 - 240 | £0.074 | £0.74 |
| 250 - 490 | £0.068 | £0.68 |
| 500 - 990 | £0.062 | £0.62 |
| 1000 + | £0.056 | £0.56 |
*price indicative
- RS Stock No.:
- 194-0595
- Mfr. Part No.:
- FG28C0G2A681JNT00
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Capacitance | 680pF | |
| Product Type | Multilayer Ceramic Capacitor | |
| Voltage | 100V dc | |
| Packaging | Bulk | |
| Mount Type | Through Hole | |
| Dielectric | C0G | |
| Tolerance | +5 % | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Radial | |
| Series | FG | |
| Width | 2.5mm | |
| Standards/Approvals | RoHS | |
| Length | 4mm | |
| Height | 5.5mm | |
| Maximum Operating Temperature | 125°C | |
| Lead Spacing | 5mm | |
| Lead Diameter | 0.5mm | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Capacitance 680pF | ||
Product Type Multilayer Ceramic Capacitor | ||
Voltage 100V dc | ||
Packaging Bulk | ||
Mount Type Through Hole | ||
Dielectric C0G | ||
Tolerance +5 % | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Termination Type Radial | ||
Series FG | ||
Width 2.5mm | ||
Standards/Approvals RoHS | ||
Length 4mm | ||
Height 5.5mm | ||
Maximum Operating Temperature 125°C | ||
Lead Spacing 5mm | ||
Lead Diameter 0.5mm | ||

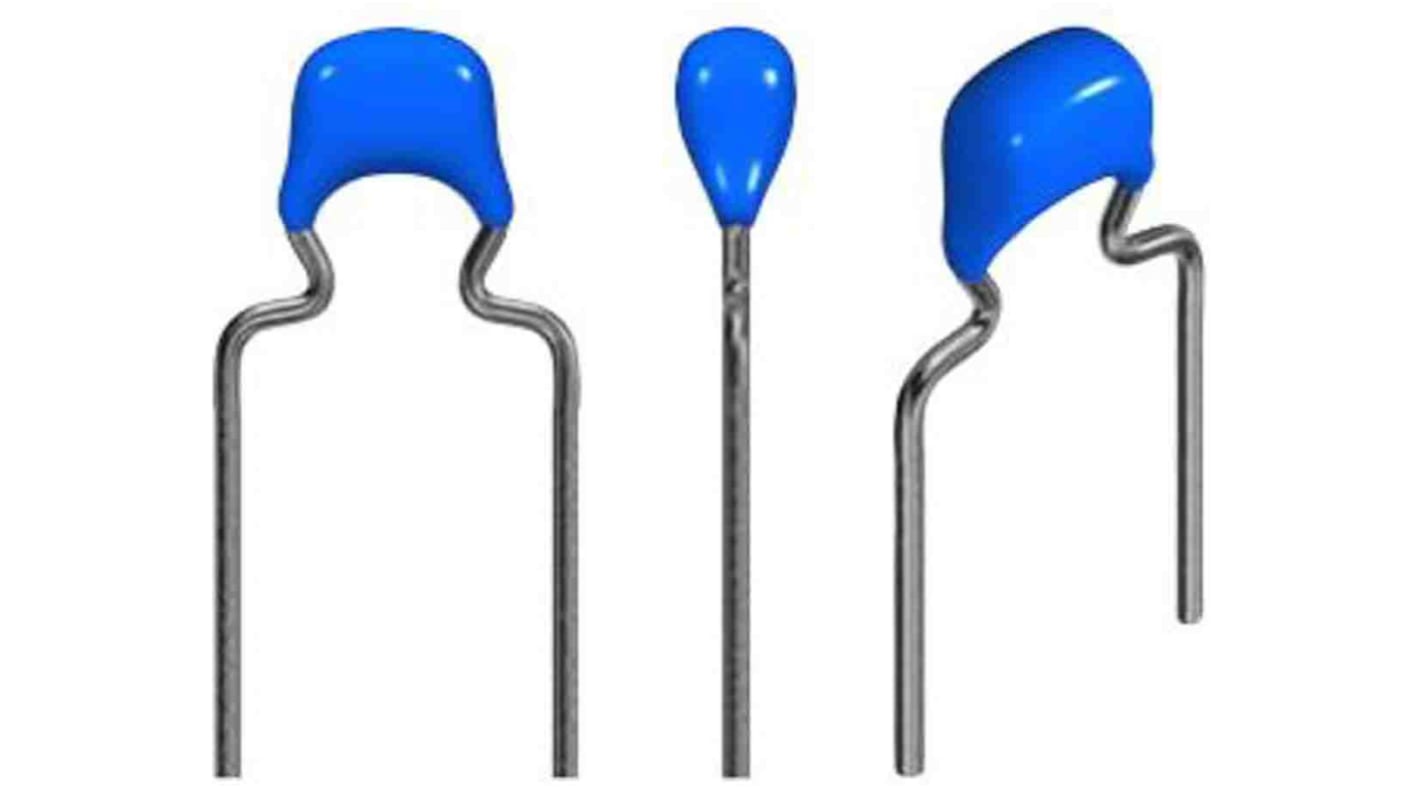

The TDKs FG series 680pF multilayer ceramic capacitor has a dipped radial lead. It is widely used as bypass capacitors in switching power sources, smoothing capacitors, noise reduction, snubber circuits and PFC input filters.
Halogen free
Commercial grade
Bulk type packaging
Operating temperature –55 to +125°C
