- RS Stock No.:
- 185-5507
- Mfr. Part No.:
- 885392005006
- Brand:
- Wurth Elektronik
5000 In stock - FREE next working day delivery available
Price Each (On a Reel of 500)
£0.04
(exc. VAT)
£0.05
(inc. VAT)
Units | Per unit | Per Reel* |
---|---|---|
500 - 500 | £0.04 | £20.00 |
1000 - 2000 | £0.038 | £19.00 |
2500 - 4500 | £0.035 | £17.50 |
5000 - 9500 | £0.031 | £15.50 |
10000 + | £0.027 | £13.50 |
*price indicative
- RS Stock No.:
- 185-5507
- Mfr. Part No.:
- 885392005006
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW

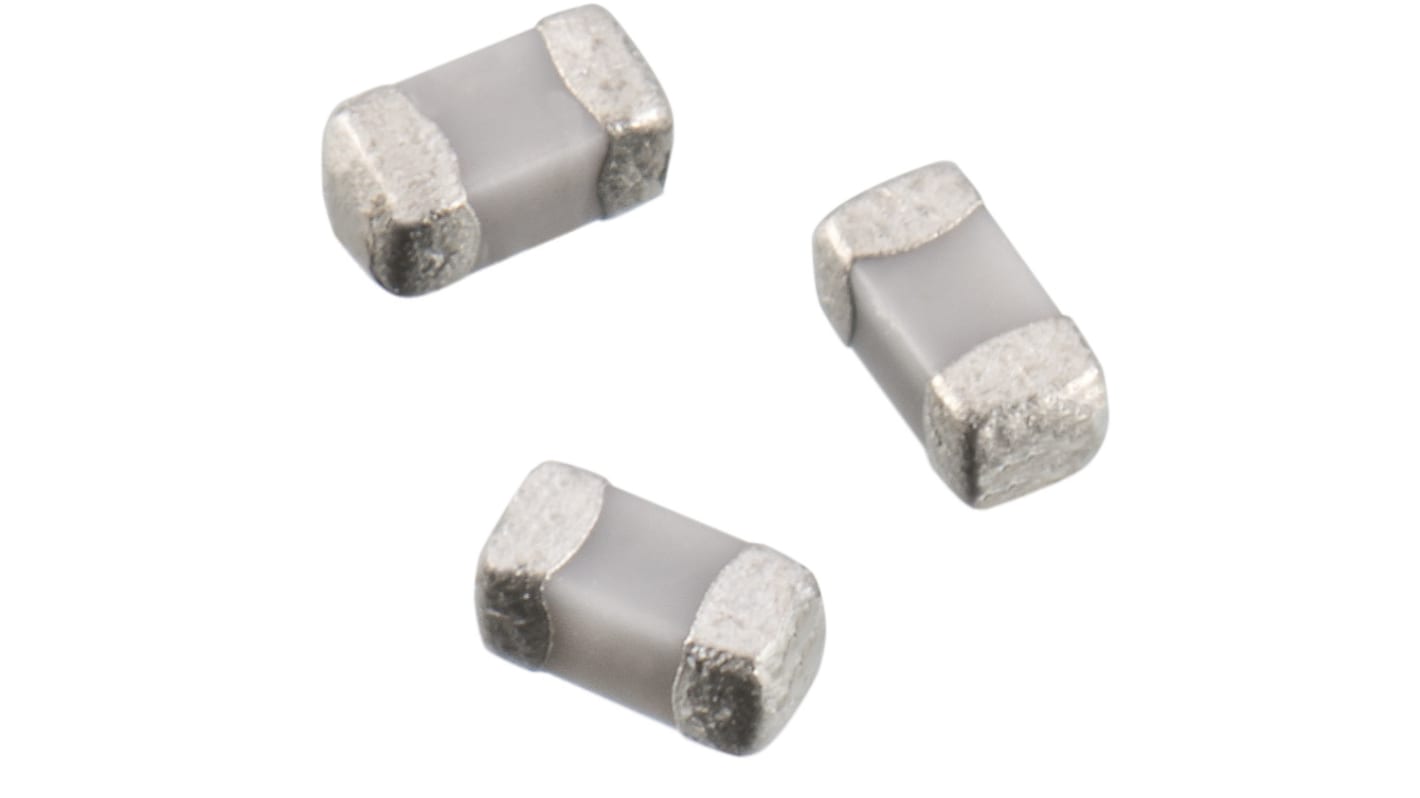

Product Details
High frequency product series
Mounting style: SMT-Chip
Ceramic: NP0 (Class I)
Capacitance range: 0.2 pF ‒ 33 pF
Temperature Coefficient: ±30 ppm/°C
Voltage range (UR): 25 ‒ 50 V(DC)
Operating temperature: -55 °C up to + 125 °C
Sizes: 0201 / 0402
Termination: Cu/Ni/Sn
Recommended soldering: Reflow soldering
Applications
High frequency applications
Antenna matching
Mounting style: SMT-Chip
Ceramic: NP0 (Class I)
Capacitance range: 0.2 pF ‒ 33 pF
Temperature Coefficient: ±30 ppm/°C
Voltage range (UR): 25 ‒ 50 V(DC)
Operating temperature: -55 °C up to + 125 °C
Sizes: 0201 / 0402
Termination: Cu/Ni/Sn
Recommended soldering: Reflow soldering
Applications
High frequency applications
Antenna matching
Specifications
Attribute | Value |
---|---|
Capacitance | 1pF |
Voltage | 50V dc |
Package/Case | 0402 (1005M) |
Mounting Type | Surface Mount |
Dielectric | NP0 |
Tolerance | ±0.1pF |
Dimensions | 1 x 0.5 x 0.5mm |
Length | 1mm |
Depth | 0.5mm |
Height | 0.5mm |
Series | WCAP-CSRF |
Maximum Operating Temperature | +125°C |
Suppression Class | Class I |
Minimum Operating Temperature | -55°C |
Terminal Type | Solder |
