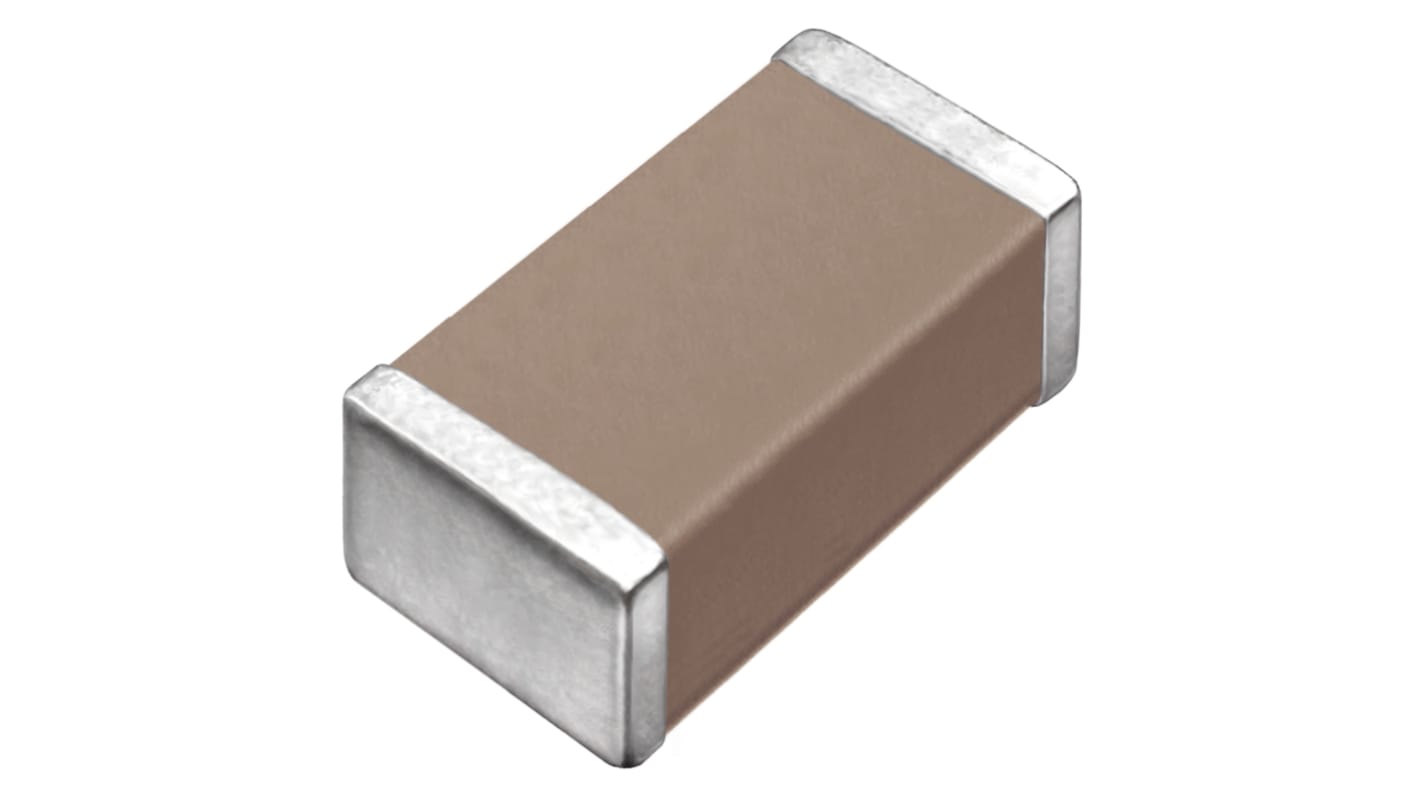

TDK 4.7 nF Multilayer Ceramic Capacitor, 100V dc, ±10 %, Surface Mount
- RS Stock No.:
- 183-5879
- Mfr. Part No.:
- CEU4J2X7R2A472K125AE
- Brand:
- TDK
Bulk discount available
Subtotal (1 pack of 100 units)*
£7.50
(exc. VAT)
£9.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.075 | £7.50 |
| 500 - 900 | £0.062 | £6.20 |
| 1000 + | £0.06 | £6.00 |
*price indicative
- RS Stock No.:
- 183-5879
- Mfr. Part No.:
- CEU4J2X7R2A472K125AE
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Capacitance | 4.7nF | |
| Product Type | Multilayer Ceramic Capacitor | |
| Voltage | 100V dc | |
| Package/Case | 0805 | |
| Packaging | Embossed Tape | |
| Mount Type | Surface Mount | |
| Dielectric | X7R | |
| Tolerance | ±10 % | |
| Automotive Standard | AEC-Q200 | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Series | CEU | |
| Width | 1.25mm | |
| Length | 2mm | |
| Standards/Approvals | No | |
| Height | 1.25mm | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Capacitance 4.7nF | ||
Product Type Multilayer Ceramic Capacitor | ||
Voltage 100V dc | ||
Package/Case 0805 | ||
Packaging Embossed Tape | ||
Mount Type Surface Mount | ||
Dielectric X7R | ||
Tolerance ±10 % | ||
Automotive Standard AEC-Q200 | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Series CEU | ||
Width 1.25mm | ||
Length 2mm | ||
Standards/Approvals No | ||
Height 1.25mm | ||
Maximum Operating Temperature 125°C | ||
To make multilayer ceramic chip capacitors more compact with larger capacity, we drew on TDK's advanced material technologies, making the particle sizes super fine. By putting our original processing technologies to full use, we have used our advanced layering technique which ensures the precise placing of dielectric and electrode layers, as well as the multilayering technology capable of as many as 1000 layers. The thickness of each layer is at a submicron level. By reducing the thickness of each layer and increasing the number of layers, even the ultrasmall chip combines the capacity close to that of tantalum capacitors with excellent reliability.
Fail-safe function with serial configuration of capacitors inside a single product.
Improved stress resistance.
Improved thermal shock resistance.
Allows for reduction of PCB space.
Applications
Power supply without protective circuit
Automotive battery line
