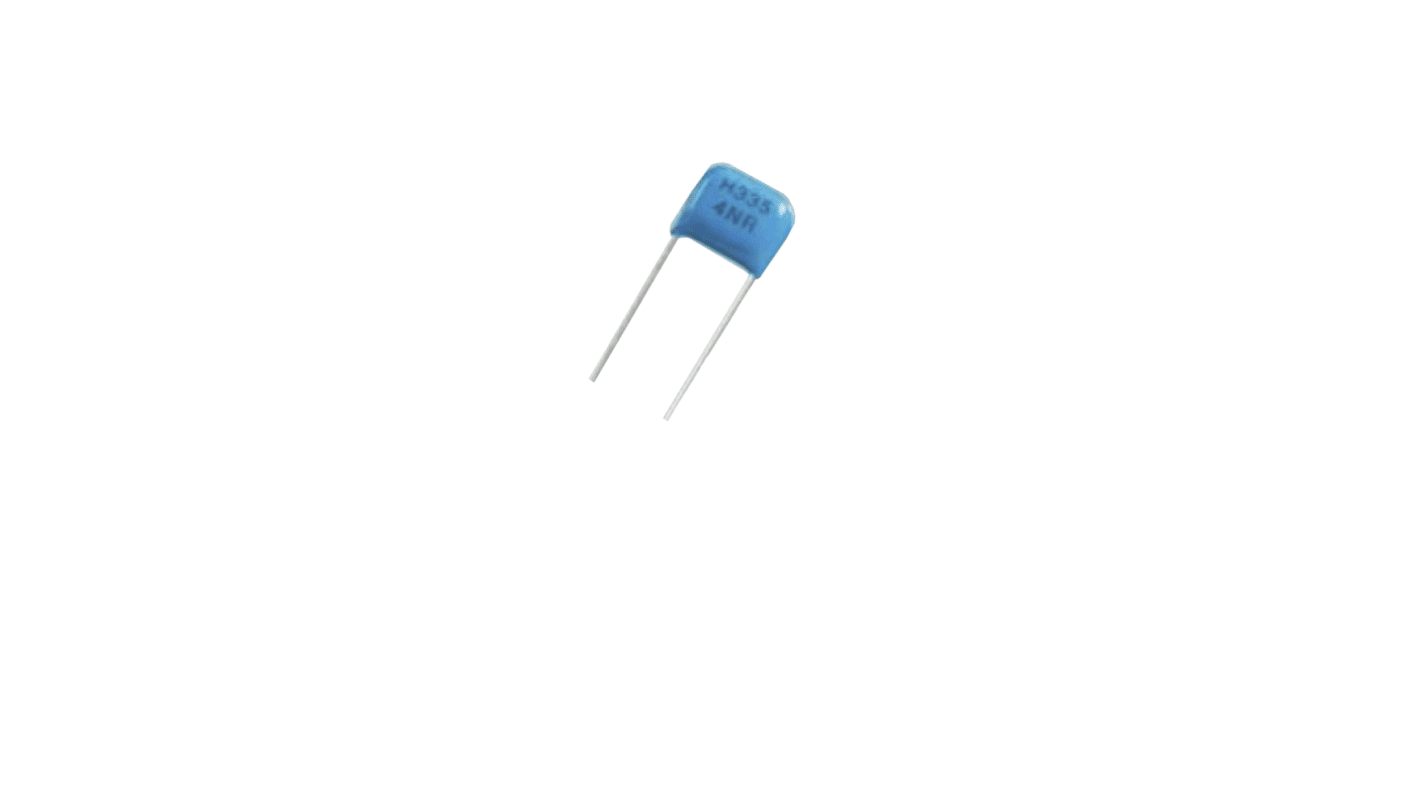

CHEMI-CON 47 μF Multilayer Ceramic Capacitor, 25V dc, ±20 %, Through Hole Radial
- RS Stock No.:
- 182-7589
- Mfr. Part No.:
- KTD250B476M76A0B00
- Brand:
- CHEMI-CON
Bulk discount available
Subtotal (1 pack of 10 units)*
£35.32
(exc. VAT)
£42.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 40 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | £3.532 | £35.32 |
| 20 + | £3.179 | £31.79 |
*price indicative
- RS Stock No.:
- 182-7589
- Mfr. Part No.:
- KTD250B476M76A0B00
- Brand:
- CHEMI-CON
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CHEMI-CON | |
| Product Type | Multilayer Ceramic Capacitor | |
| Capacitance | 47μF | |
| Voltage | 25V dc | |
| Packaging | Tape & Reel | |
| Mount Type | Through Hole | |
| Dielectric | X7R | |
| Tolerance | ±20 % | |
| Automotive Standard | AEC-Q200 | |
| Termination Type | Radial | |
| Minimum Operating Temperature | -55°C | |
| Series | NTD | |
| Height | 11.5mm | |
| Length | 10mm | |
| Standards/Approvals | RoHS, UL, EIA | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand CHEMI-CON | ||
Product Type Multilayer Ceramic Capacitor | ||
Capacitance 47μF | ||
Voltage 25V dc | ||
Packaging Tape & Reel | ||
Mount Type Through Hole | ||
Dielectric X7R | ||
Tolerance ±20 % | ||
Automotive Standard AEC-Q200 | ||
Termination Type Radial | ||
Minimum Operating Temperature -55°C | ||
Series NTD | ||
Height 11.5mm | ||
Length 10mm | ||
Standards/Approvals RoHS, UL, EIA | ||
Maximum Operating Temperature 125°C | ||
Small in size and wide capacitance range.
Max. 470μF is available.
Superior humidity characteristic and long life.
Excellent high frequency characteristic due to low ESR.
High rated ripple current.
250Vdc items are available.
Resin used for coating.
Pb-free design(also ceramic dielectric)
APPLICATIONS
Smoothing circuit of switching mode AC-DC or DC-DC converter.
Noise suppressor for various kinds of equipments.
By-pass or decoupling circuits.
Automotive equipments.
