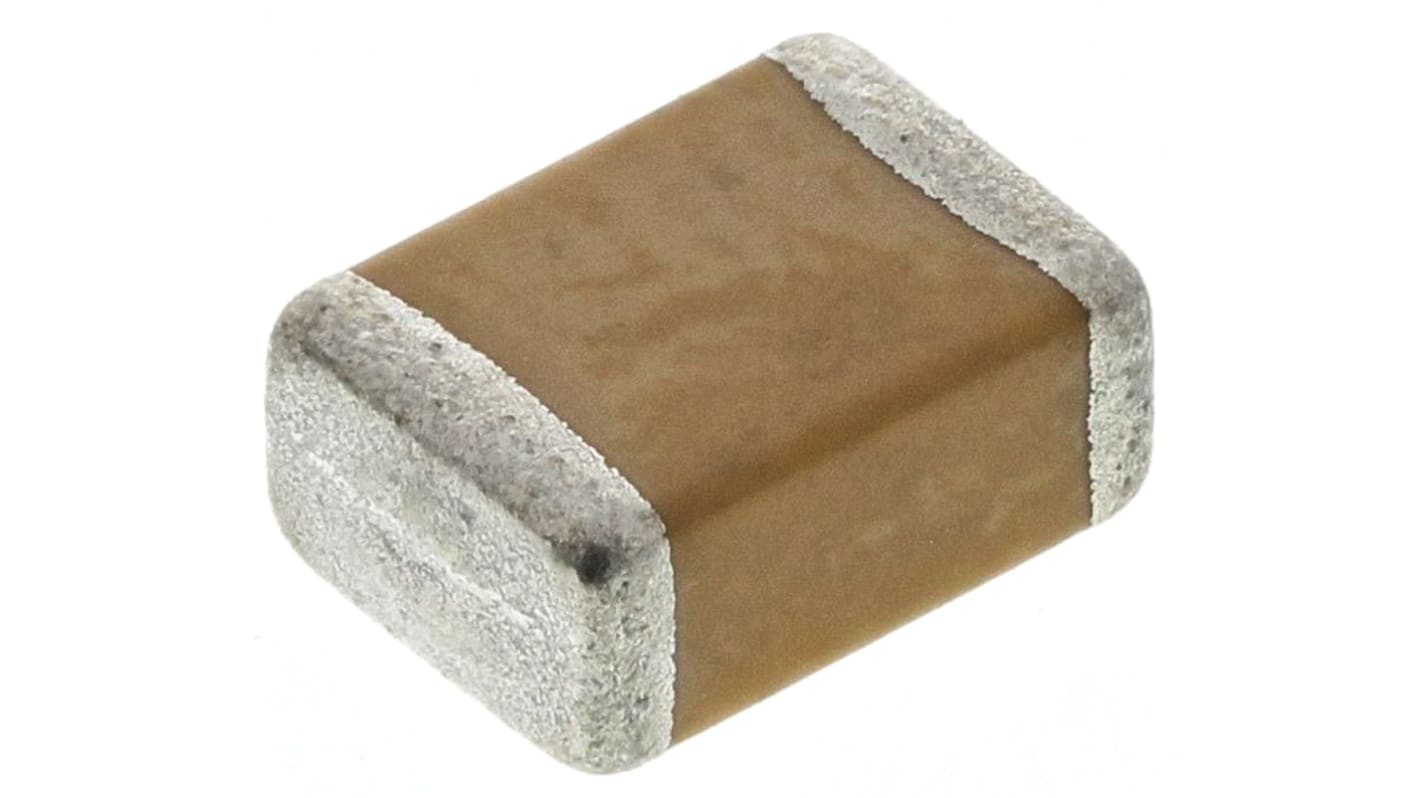

KYOCERA AVX 2.2nF Multilayer Ceramic Capacitor MLCC, 2kV dc V, ±10% , SMD
- RS Stock No.:
- 166-7745
- Mfr. Part No.:
- 1812GC222KAT1A
- Brand:
- KYOCERA AVX
Discontinued product
- RS Stock No.:
- 166-7745
- Mfr. Part No.:
- 1812GC222KAT1A
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
Product Details
AVX 1812 MLCC Series
A professional range of 1812 MLCC capacitors from AVX, designed for use in a wide range of applications.
Note
Sorted in order of dielectric, voltage then capacitance.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 2.2nF |
| Voltage | 2kV dc |
| Package/Case | 1812 (4532M) |
| Mounting Type | Surface Mount |
| Dielectric | X7R |
| Tolerance | ±10% |
| Dimensions | 4.5 x 3.2 x 2.54mm |
| Length | 4.5mm |
| Depth | 3.2mm |
| Height | 2.54mm |
| Series | Standard |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
