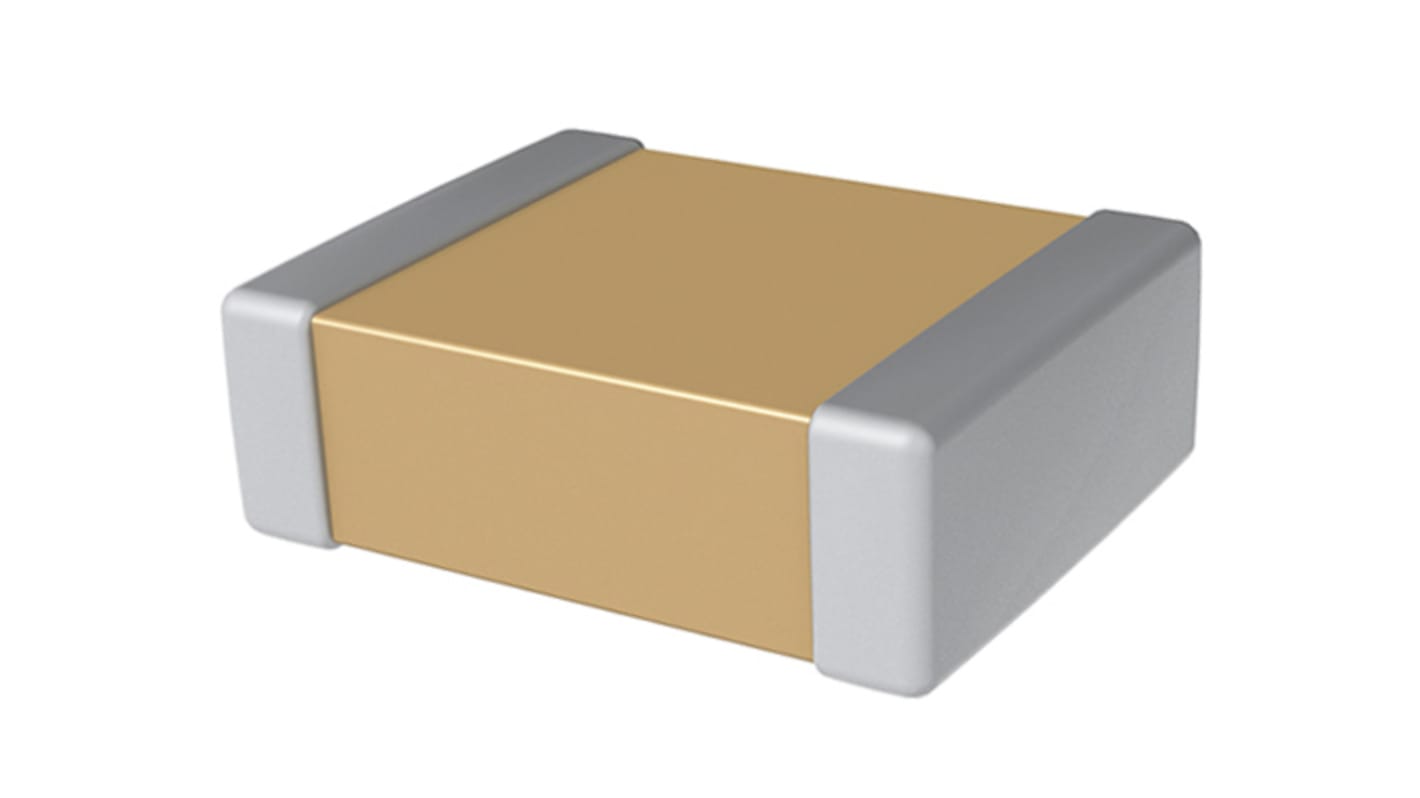

KEMET’s Flexible Termination (FT-CAP) multilayer ceramic capacitor in X7R dielectric incorporates a unique, flexible termination system that is integrated with KEMET’s standard termination materials. A conductive silver epoxy is utilized between the base metal and nickel barrier layers of KEMET’s standard termination system in order to establish pliability while maintaining terminal strength, solderability and electrical performance.
Superior flex performance (up to 5 mm) High capacitance flex mitigation Lead (Pb)-free, RoHS and REACH compliant Automotive (AEC-Q200) grade available Non-polar device, minimizing installation concerns 100% pure matte tin-plated termination finish
Attribute
Value
Capacitance
10µF
Voltage
6.3V dc
Package/Case
0805 (2012M)
Mounting Type
Surface Mount
Dielectric
X7R
Tolerance
±10%
Dimensions
2 x 1.25 x 1.25mm
Length
2mm
Depth
1.25mm
Height
1.25mm
Series
X FT-CAP
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-55°C
