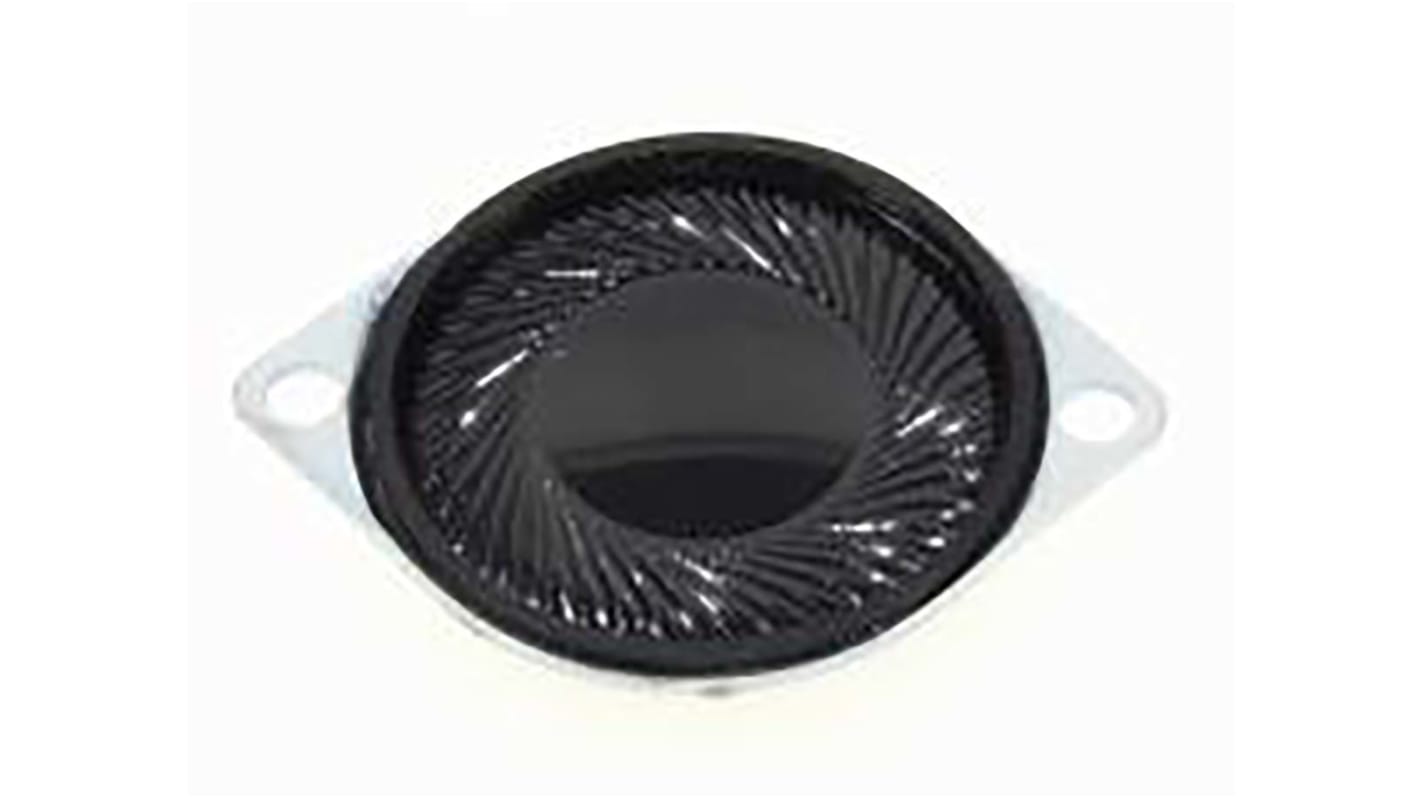

Visaton 8Ω 1W Miniature Speaker 28mm Dia. , 28 (Dia.) x 5.4mm
- RS Stock No.:
- 197-6429
- Mfr. Part No.:
- K 28 WPC BL 8 OHM
- Brand:
- Visaton
8 In stock - FREE next working day delivery available
13 available from Europe for delivery within 2 working day(s).
Price Each
£6.42
(exc. VAT)
£7.70
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £6.42 |
- RS Stock No.:
- 197-6429
- Mfr. Part No.:
- K 28 WPC BL 8 OHM
- Brand:
- Visaton
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Visaton K series is a miniature speaker with a plastic diaphragm (Mylar) and mounting ears. Balanced frequency response and good voice reproduction.
300–20000Hz frequency response
76dB mean sound pressure level
700Hz resonance frequency
−40 to 70°C operating temperature range
13.5mm voice coil diameter
76dB mean sound pressure level
700Hz resonance frequency
−40 to 70°C operating temperature range
13.5mm voice coil diameter
Specifications
Attribute | Value |
|---|---|
| Coil Resistance | 8Ω |
| Sound Level | 75dB |
| Rated Power | 1W |
| Cone Material | Mylar |
| Dimensions | 28 (Dia.) x 5.4mm |
| Diameter | 28mm |
| Height | 5.4mm |
