TE Connectivity, DBAS 9, Gold over Nickel Straight 56 Way Panel MIL Spec Circular Connector Male/Female,Shell Size 25,
- RS Stock No.:
- 241-0331
- Mfr. Part No.:
- DBAS 978G 25-04 PN 1A
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£1,093.12
(exc. VAT)
£1,311.74
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £1,093.12 |
| 5 - 9 | £1,046.11 |
| 10 + | £1,022.07 |
*price indicative
- RS Stock No.:
- 241-0331
- Mfr. Part No.:
- DBAS 978G 25-04 PN 1A
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 56 | |
| Product Type | MIL Spec Circular Connector | |
| Connector Gender | Male/Female | |
| Shell Size | 25 | |
| Mount Type | Panel | |
| Military Standard | No | |
| Termination Type | Crimp | |
| Mating Type | Push Pull | |
| Connector Size | Standard | |
| Orientation | Straight | |
| Standards/Approvals | RoHS | |
| Housing Material | Aluminium | |
| Series | DBAS 9 | |
| Contact Material | Gold over Nickel | |
| Contact Plating | Nickel Plated | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 56 | ||
Product Type MIL Spec Circular Connector | ||
Connector Gender Male/Female | ||
Shell Size 25 | ||
Mount Type Panel | ||
Military Standard No | ||
Termination Type Crimp | ||
Mating Type Push Pull | ||
Connector Size Standard | ||
Orientation Straight | ||
Standards/Approvals RoHS | ||
Housing Material Aluminium | ||
Series DBAS 9 | ||
Contact Material Gold over Nickel | ||
Contact Plating Nickel Plated | ||

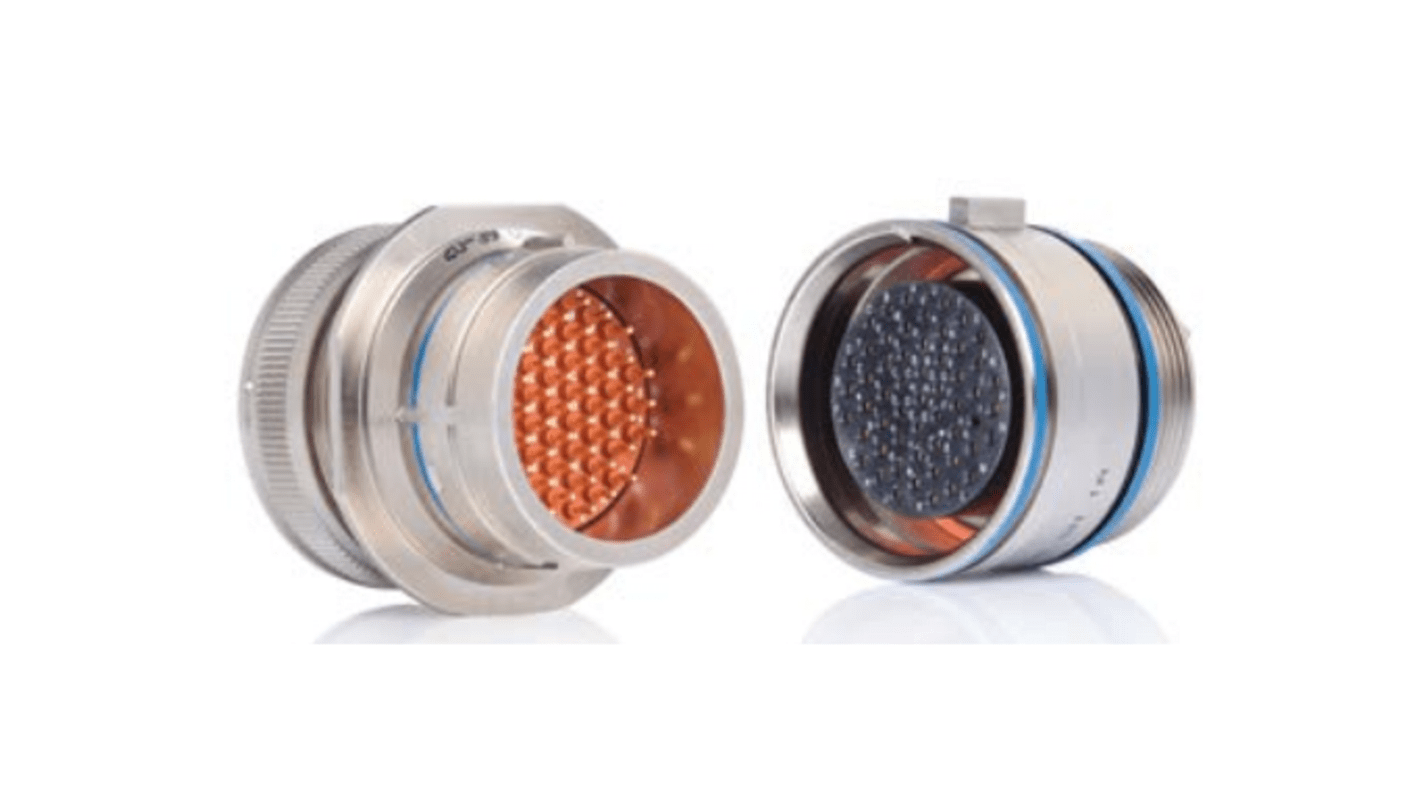

The TE Connectivity's DEUTSCH DBAS 9 series 56 positions standard circular connector assembly is an electrical connector with plug circular connector type and a plug shell type. It has extreme reliability in harsh aerospace, military and space applications. It has nickel shell plating with aluminium shell base and a polyetherimide circular connector insulation material.
For power & signal circuit applications
Push-pull self-locking
Sealable & shielded
Connector and contact terminates to wire & cable
Wire-to-panel connector system
