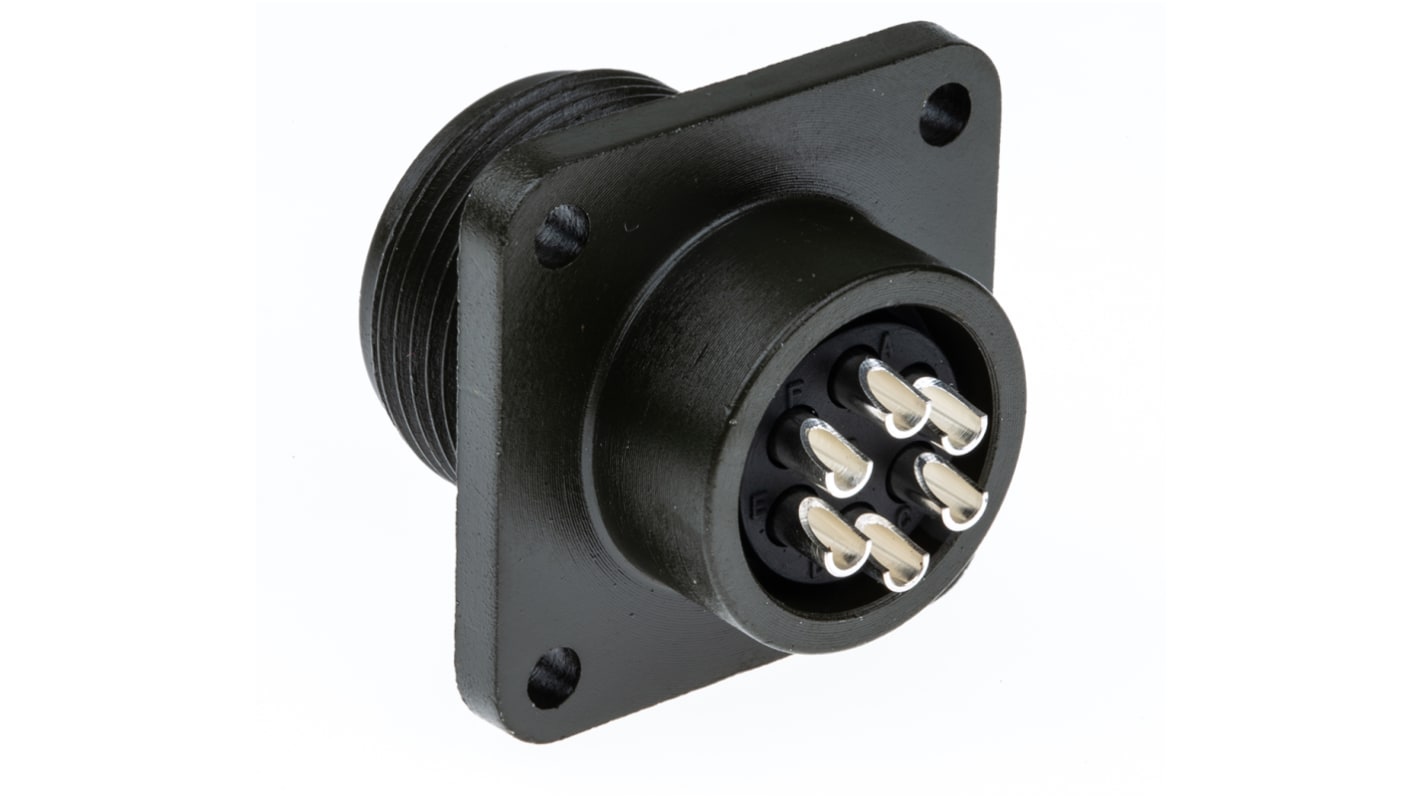

    Amphenol Industrial, MS3102A 6 Way Box Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 14S,

    RS Stock No.:
    475-729
    Mfr. Part No.:
    MS3102A-14S-6S
    Brand:
    Amphenol Industrial
    Amphenol Industrial
    View this category
    281 In stock - FREE next working day delivery available
    11 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £11.50

    (exc. VAT)

    £13.80

    (inc. VAT)

    UnitsPer unit
    1 - 9£11.50
    10 - 24£10.65
    25 +£9.79
    RS Stock No.:
    475-729
    Mfr. Part No.:
    MS3102A-14S-6S
    Brand:
    Amphenol Industrial

    Legislation and Compliance


    Product Details

    Amphenol MS MIL-C-5015 Circular Receptacle Connectors


    Amphenol MS Series Class A MIL-spec connectors that meet the demanding performance requirements of MIL-C-5015. These box mounting circular receptacle connectors have proven electrical capability for equipment applications where durability is important. These circular MIL-C-5015 connectors have threaded couplings and single key/keyway shell polarization for an accurate and reliable connection. The solid shells of these MS Series circular MIL-C-5015 connectors are made from high grade aluminium alloy. The shells are electrically zinc plated with an olive drab chromate finish which ensures a high resistance to corrosion. The inserts of these military circular connectors are made from resilient synthetic rubber which offers a high dielectric strength and resistance to vibration.


    Features & Benefits


    Durable, field-proven design
    MIL-C-5015 specification
    Threaded couplings for quick and accurate mating
    Keying and polarization to prevent mismating
    Durable construction with high grade aluminium shell
    Zinc plated olive drab chromate finish for high resistance to corrosion
    Rubber inserts for high dielectric strength and resistance to vibration


    Product Application Information


    These Amphenol MS series class A Mil-Spec circular connectors are designed for to perform virtual functions in powering, testing and ground support systems. Applications include communication equipment, computers and shipboard installation where mechanical forces and physical parameters are not subject to extreme or rapid environmental changes. These MS series MIL spec circular receptacle connectors are mounted on boxes and equipment cases where no cable support is required.


    Note

    Cable-mounting plugs (pin contacts) will only mate with chassis sockets. Cable-mounting sockets will only mate with chassis plugs.

    Standards

    MIL C 5015


    97 (Olive Drab)


    Commercial grade threaded circular multi-pole connectors designed to conform to the general requirements of MIL-C-5015 and satisfy the commercial and industrial demand for quality, reliability and low cost. The connectors are screw locking and fully interchangeable with other screw locking MIL-C-5015 types. All pins and sockets solder bucket type.


    Specifications

    AttributeValue
    Number of Contacts6
    GenderFemale
    Contact GenderFemale
    Voltage Rating200 V ac, 250 V dc
    Shell Size14S
    Mounting TypeBox Mount
    Military StandardMIL-DTL-5015
    Termination MethodSolder
    Mating TypeScrew Coupling
    Body OrientationStraight
    SeriesMS3102A
    Shell PlatingZinc Cobalt
    Contact MaterialCopper Alloy
    Maximum Operating Temperature+125°C
    Minimum Operating Temperature-55°C
    Contact PlatingSilver
