Mitutoyo 314-251-30 External Micrometer
- RS Stock No.:
- 238-7394
- Mfr. Part No.:
- 314-251-30
- Brand:
- Mitutoyo
Subtotal (1 unit)*
£1,122.76
(exc. VAT)
£1,347.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,122.76 |
*price indicative
- RS Stock No.:
- 238-7394
- Mfr. Part No.:
- 314-251-30
- Brand:
- Mitutoyo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Mitutoyo | |
Accuracy | ±0.004 mm | |
Resolution | 0.001 mm | |
Imperial or Metric | Metric | |
Micrometer Type | External | |
SPC Data Output | Yes | |
Select all | ||
---|---|---|
Brand Mitutoyo | ||
Accuracy ±0.004 mm | ||
Resolution 0.001 mm | ||
Imperial or Metric Metric | ||
Micrometer Type External | ||
SPC Data Output Yes | ||
- COO (Country of Origin):
- JP

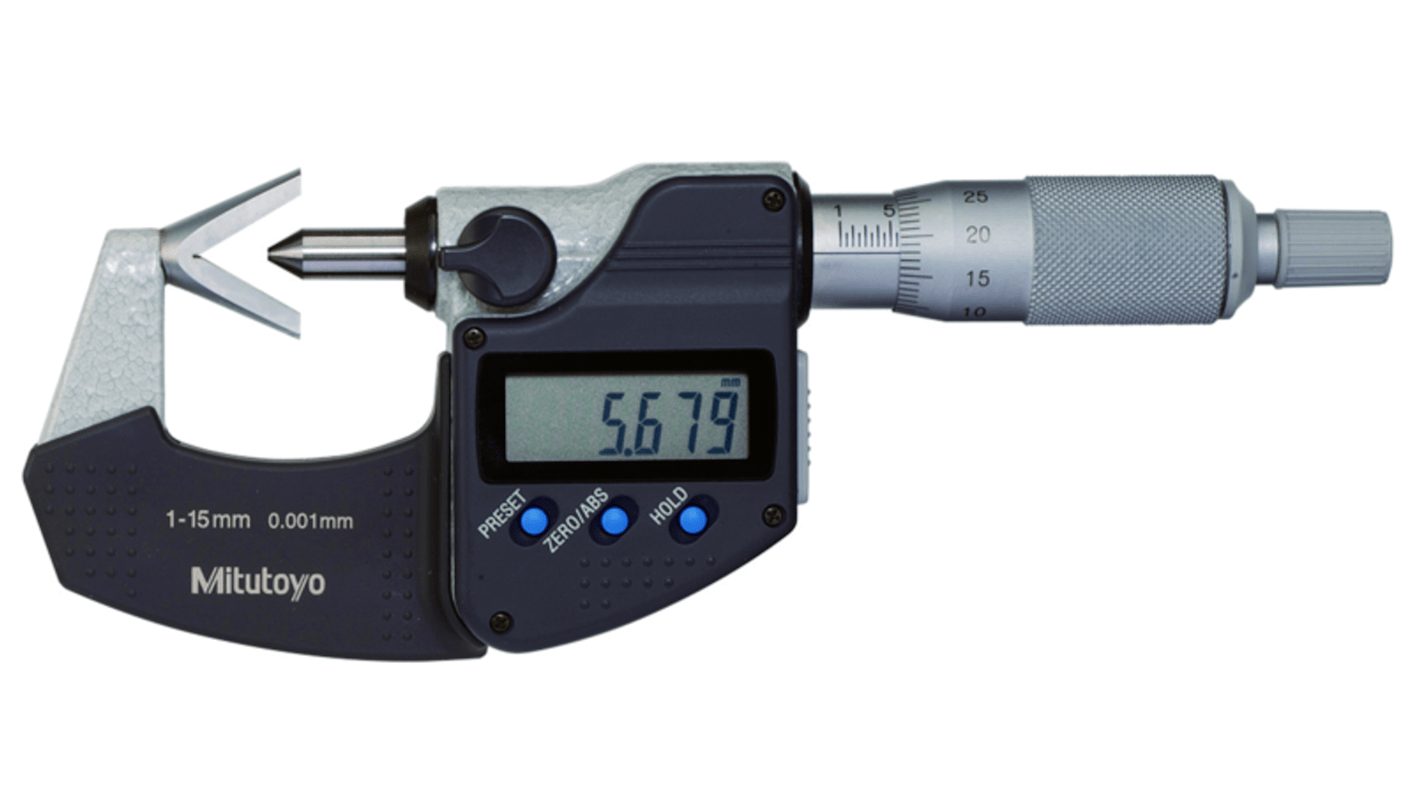

The Mitutoyo digimatic V-anvil digital micrometer pointed spindle and V-anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a work piece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout. Functions include origin set, zero setting, data hold, data output, function lock, 2 presets and inch/mm conversion.
It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method
SPC output function allows for quick and easy data management in real time
Frame has a non-slip finish for better grip in shop environments
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method
SPC output function allows for quick and easy data management in real time
Frame has a non-slip finish for better grip in shop environments
