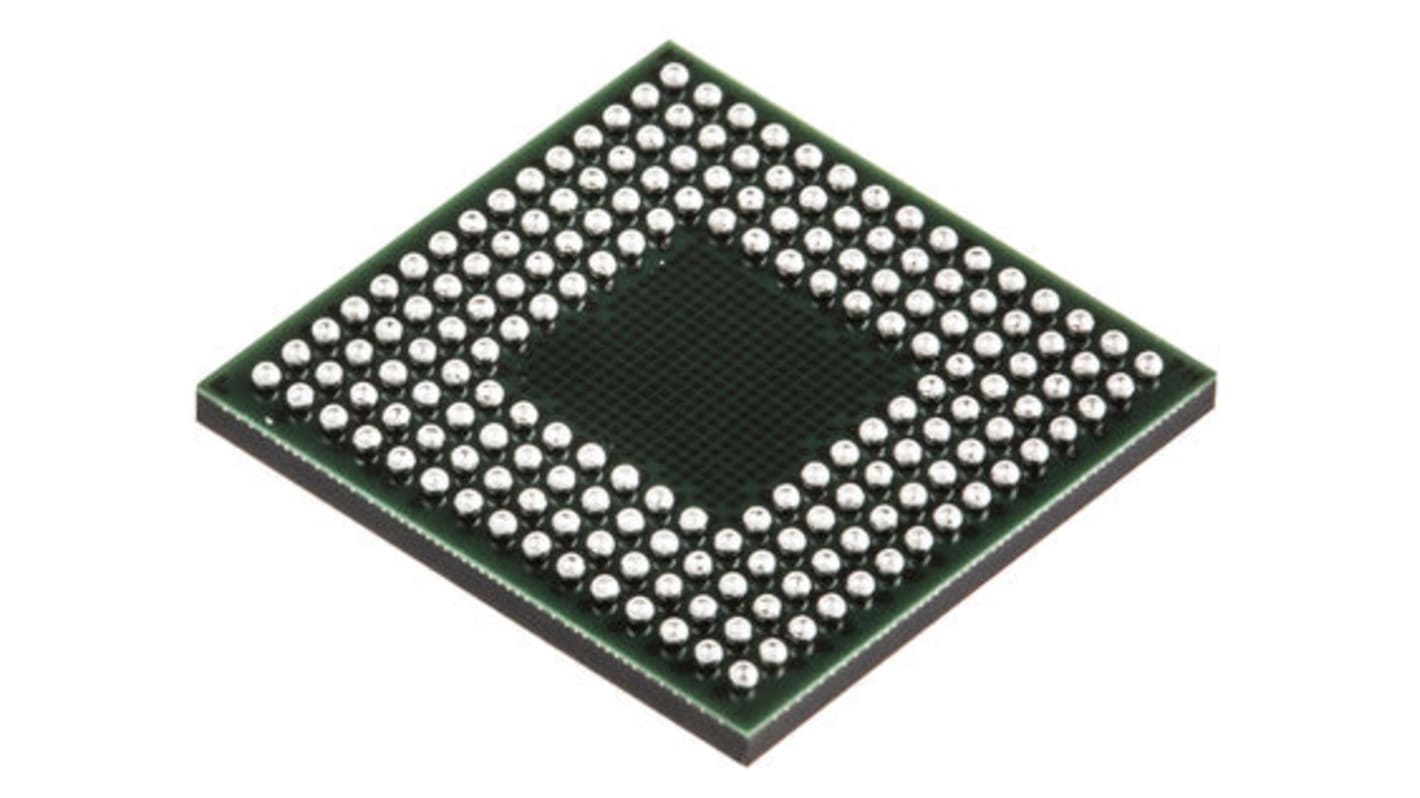

Renesas Electronics, 32bit RX CPU, RX Microcontroller, 100MHz, 2 (ROM) MB, 32 (Flash) kB Flash, ROM, 176-Pin LFPGA
- RS Stock No.:
- 901-5442
- Mfr. Part No.:
- R5F563NEDDBG#U0
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£12.50
(exc. VAT)
£15.00
(inc. VAT)
- RS Stock No.:
- 901-5442
- Mfr. Part No.:
- R5F563NEDDBG#U0
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RX | |
| Package Type | LFPGA | |
| Mounting Type | Surface Mount | |
| Pin Count | 176 | |
| Device Core | RX CPU | |
| Data Bus Width | 32bit | |
| Program Memory Size | 2 (ROM) MB, 32 (Flash) kB | |
| Maximum Frequency | 100MHz | |
| RAM Size | 128 kB | |
| USB Channels | 2 x Host | |
| Number of PWM Units | 0 | |
| Typical Operating Supply Voltage | 2.7 → 3.6 V | |
| Length | 13mm | |
| Width | 13mm | |
| Dimensions | 13 x 13 x 0.95mm | |
| Number of ADC Units | 2 | |
| Height | 0.95mm | |
| ADCs | 1 (21 x 12 bit), 1 (8 x 10 bit) | |
| Maximum Number of Ethernet Channels | 1 | |
| Instruction Set Architecture | CISC Harvard | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash, ROM | |
| Maximum Operating Temperature | +85 °C | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RX | ||
Package Type LFPGA | ||
Mounting Type Surface Mount | ||
Pin Count 176 | ||
Device Core RX CPU | ||
Data Bus Width 32bit | ||
Program Memory Size 2 (ROM) MB, 32 (Flash) kB | ||
Maximum Frequency 100MHz | ||
RAM Size 128 kB | ||
USB Channels 2 x Host | ||
Number of PWM Units 0 | ||
Typical Operating Supply Voltage 2.7 → 3.6 V | ||
Length 13mm | ||
Width 13mm | ||
Dimensions 13 x 13 x 0.95mm | ||
Number of ADC Units 2 | ||
Height 0.95mm | ||
ADCs 1 (21 x 12 bit), 1 (8 x 10 bit) | ||
Maximum Number of Ethernet Channels 1 | ||
Instruction Set Architecture CISC Harvard | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash, ROM | ||
Maximum Operating Temperature +85 °C | ||
- COO (Country of Origin):
- JP
RX63N Microcontrollers
The RX63N family of 32-bit microcontrollers features 100MHz high-speed operation, large-capacity on-chip memory and Ethernet communication.
• 100MHz 32-bit RX core microcontroller
• Up to 2MB Flash memory
• 32KB Data Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Single-precision IEEE 754 Floating Point maths unit
• AES-128/192/256 Data Encryption unit (Selected devices)
• 4-channel DMA controller
• Data Transfer Controller
• Serial Communication: SPI, I²C, USB, CAN, Ethernet
• 14-bit Independent Watchdog Timer
• Programmable Pulse Generator
• Real-Time Clock
• CRC Calculator
• Temperature sensor
• On-chip debug and trace
• Power supply: +2.7 to +3.6Vdc
• Low-Power Modes: Sleep, All-module clock stop, Software standby, Deep software standby
• Up to 2MB Flash memory
• 32KB Data Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Single-precision IEEE 754 Floating Point maths unit
• AES-128/192/256 Data Encryption unit (Selected devices)
• 4-channel DMA controller
• Data Transfer Controller
• Serial Communication: SPI, I²C, USB, CAN, Ethernet
• 14-bit Independent Watchdog Timer
• Programmable Pulse Generator
• Real-Time Clock
• CRC Calculator
• Temperature sensor
• On-chip debug and trace
• Power supply: +2.7 to +3.6Vdc
• Low-Power Modes: Sleep, All-module clock stop, Software standby, Deep software standby
