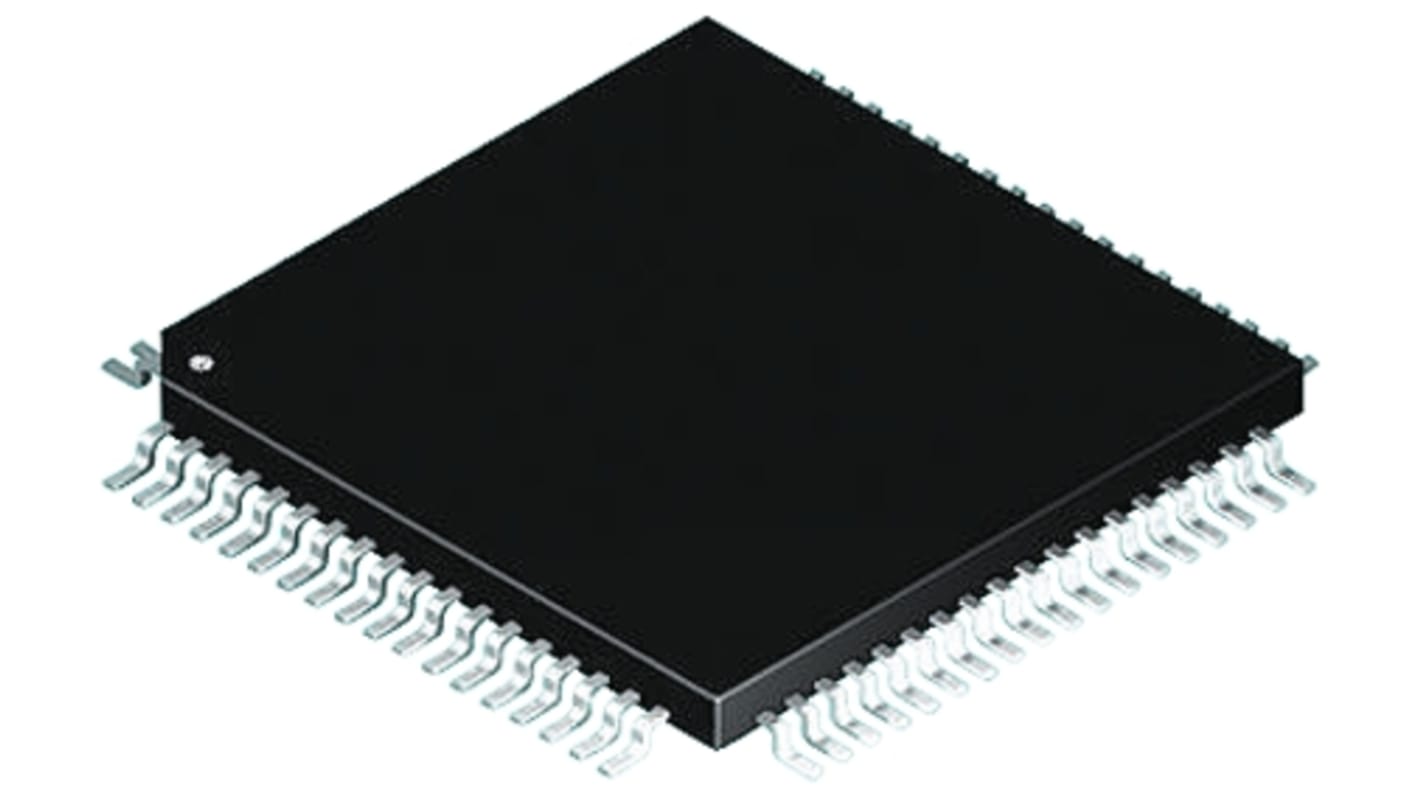

Microchip DSPIC30F6014-20I/PF, 16bit dsPIC Microcontroller, dsPIC30F, 20MHz, 144 kB Flash, 80-Pin TQFP
- RS Stock No.:
- 823-7768
- Mfr. Part No.:
- DSPIC30F6014-20I/PF
- Brand:
- Microchip
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 823-7768
- Mfr. Part No.:
- DSPIC30F6014-20I/PF
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | dsPIC30F | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 80 | |
| Device Core | dsPIC | |
| Data Bus Width | 16bit | |
| Program Memory Size | 144 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 8.192 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 8 | |
| Number of SPI Channels | 2 | |
| Number of UART Channels | 2 | |
| Number of USART Channels | 0 | |
| Typical Operating Supply Voltage | 2.5 → 5.5 V | |
| Number of I2C Channels | 1 | |
| Number of CAN Channels | 2 | |
| Length | 14mm | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of ADC Units | 1 | |
| ADCs | 1 (16 x 12 bit) | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | RISC | |
| Maximum Operating Temperature | +85 °C | |
| Width | 14mm | |
| Program Memory Type | Flash | |
| Pulse Width Modulation | 8 x 16 bit | |
| Number of PCI Channels | 0 | |
| Height | 1.05mm | |
| Number of LIN Channels | 0 | |
| Dimensions | 14 x 14 x 1.05mm | |
| Number of Ethernet Channels | 0 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Family Name dsPIC30F | ||
Package Type TQFP | ||
Mounting Type Surface Mount | ||
Pin Count 80 | ||
Device Core dsPIC | ||
Data Bus Width 16bit | ||
Program Memory Size 144 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 8.192 kB | ||
USB Channels 0 | ||
Number of PWM Units 8 | ||
Number of SPI Channels 2 | ||
Number of UART Channels 2 | ||
Number of USART Channels 0 | ||
Typical Operating Supply Voltage 2.5 → 5.5 V | ||
Number of I2C Channels 1 | ||
Number of CAN Channels 2 | ||
Length 14mm | ||
Maximum Number of Ethernet Channels 0 | ||
Number of ADC Units 1 | ||
ADCs 1 (16 x 12 bit) | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture RISC | ||
Maximum Operating Temperature +85 °C | ||
Width 14mm | ||
Program Memory Type Flash | ||
Pulse Width Modulation 8 x 16 bit | ||
Number of PCI Channels 0 | ||
Height 1.05mm | ||
Number of LIN Channels 0 | ||
Dimensions 14 x 14 x 1.05mm | ||
Number of Ethernet Channels 0 | ||
- COO (Country of Origin):
- PH
dsPIC30F Digital Signal Controller
The dsPIC30F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The dsPIC30F is best suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate SMPS peripherals, motor control peripherals and a Codec interface that enable efficient digital power converters, advanced motor control algorithms and speech and audio applications. Small package DSCs with high performance ADC are well suited for smart sensing applications.
