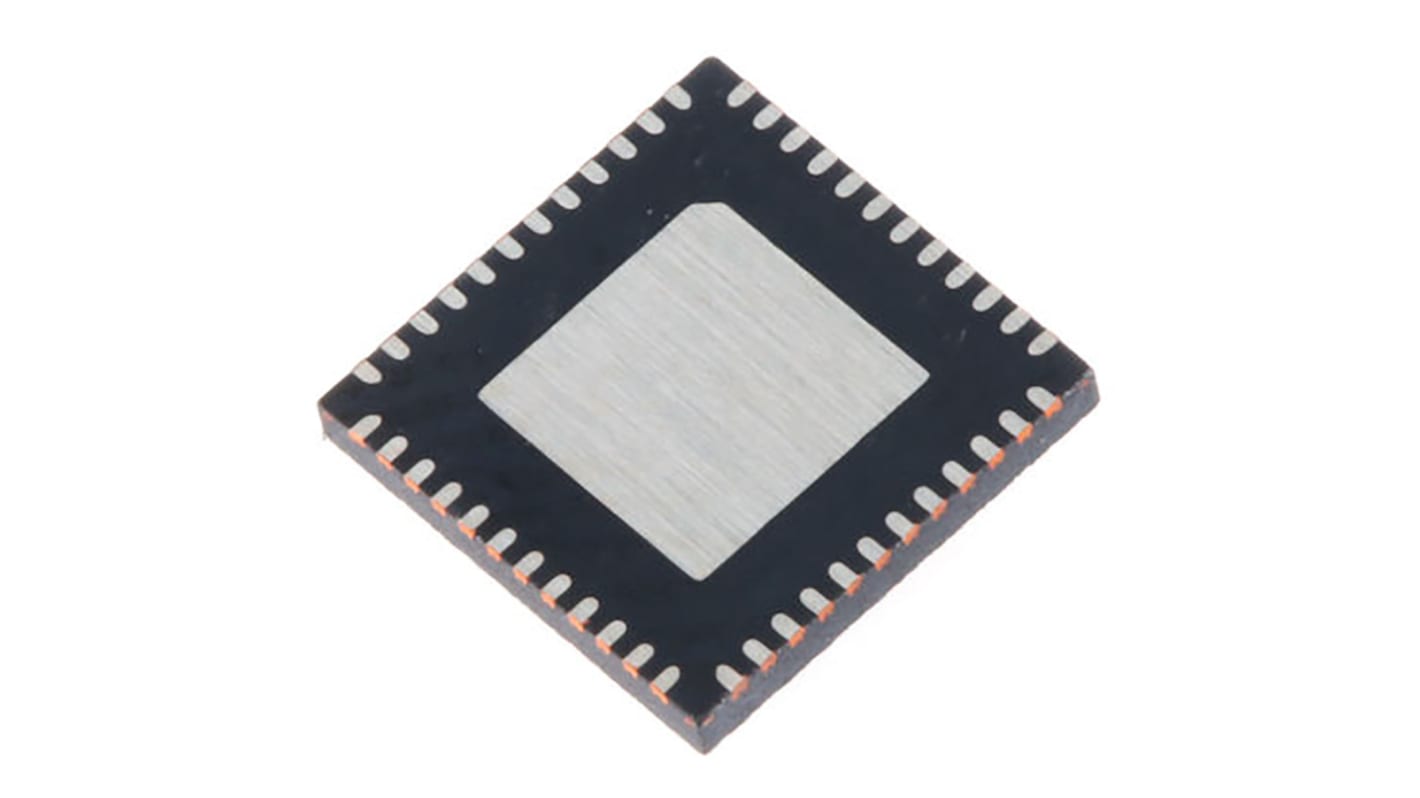

Silicon Labs C8051F973-A-GM, 8bit 8051 Microcontroller, C8051F, 25MHz, 16 kB Flash, 48-Pin QFN
- RS Stock No.:
- 819-3668
- Mfr. Part No.:
- C8051F973-A-GM
- Brand:
- Silicon Labs
Subtotal (1 pack of 5 units)*
£5.66
(exc. VAT)
£6.79
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.132 | £5.66 |
*price indicative
- RS Stock No.:
- 819-3668
- Mfr. Part No.:
- C8051F973-A-GM
- Brand:
- Silicon Labs
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| Family Name | C8051F | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 25MHz | |
| RAM Size | 4 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 1 | |
| Number of USART Channels | 0 | |
| Number of I2C Channels | 2 | |
| Number of UART Channels | 1 | |
| Typical Operating Supply Voltage | 3 V | |
| Number of CAN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | MCU | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Length | 6mm | |
| ADCs | 1 (43 x 10 bit) | |
| Height | 0.55mm | |
| Number of LIN Channels | 0 | |
| Width | 6mm | |
| Dimensions | 6 x 6 x 0.55mm | |
| Pulse Width Modulation | 1 (3 x 16 bit) | |
| Program Memory Type | Flash | |
| Maximum Number of Ethernet Channels | 0 | |
Select all | ||
|---|---|---|
Brand Silicon Labs | ||
Family Name C8051F | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core 8051 | ||
Data Bus Width 8bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 25MHz | ||
RAM Size 4 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 1 | ||
Number of USART Channels 0 | ||
Number of I2C Channels 2 | ||
Number of UART Channels 1 | ||
Typical Operating Supply Voltage 3 V | ||
Number of CAN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture MCU | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Length 6mm | ||
ADCs 1 (43 x 10 bit) | ||
Height 0.55mm | ||
Number of LIN Channels 0 | ||
Width 6mm | ||
Dimensions 6 x 6 x 0.55mm | ||
Pulse Width Modulation 1 (3 x 16 bit) | ||
Program Memory Type Flash | ||
Maximum Number of Ethernet Channels 0 | ||
C8051F97x Capacitive Sensing MCU, Silicon Labs
The C8051F97x MCU extends the SiLabs C8051F99x capacitive sense microcontroller family abilities with up to forty three capacitive sensing inputs, 32kB flash memory and up to 8kB RAM. Both series provide capacitive sensing with sub micro-amp wake on touch average current and dynamic range; supporting touch pads, buttons, sliders and capacitive proximity sensing.
The Simplicity Studio development platform lets you develop applications and capacitive touch sensing solutions quickly via the C8051F970 prototype PCB - C8051F970-A-DK Development kit (8193999).
One cycle 16 x 16 multiply and accumulate module
In-system, full-speed, non-intrusive debug interface (on-chip)
Up to 43 general purpose I/O
Active mode; sleep mode with brown-out protection/ with internal oscillator
Up to 32 kB of on-chip flash memory
Up to 8 kB of on-chip RAM
Forty three input charge timing capacitance to digital converter
12-bit ADC; power-on reset and supply monitor(on-chip); voltage reference (on-chip)
SmaRTClock oscillator; internal oscillator
Interface: SMBus I2C, UART, SPI, and High-Speed I2C
Four 16-bit timers; Programmable Counter/Timer Array (PCA); Watchdog timer
