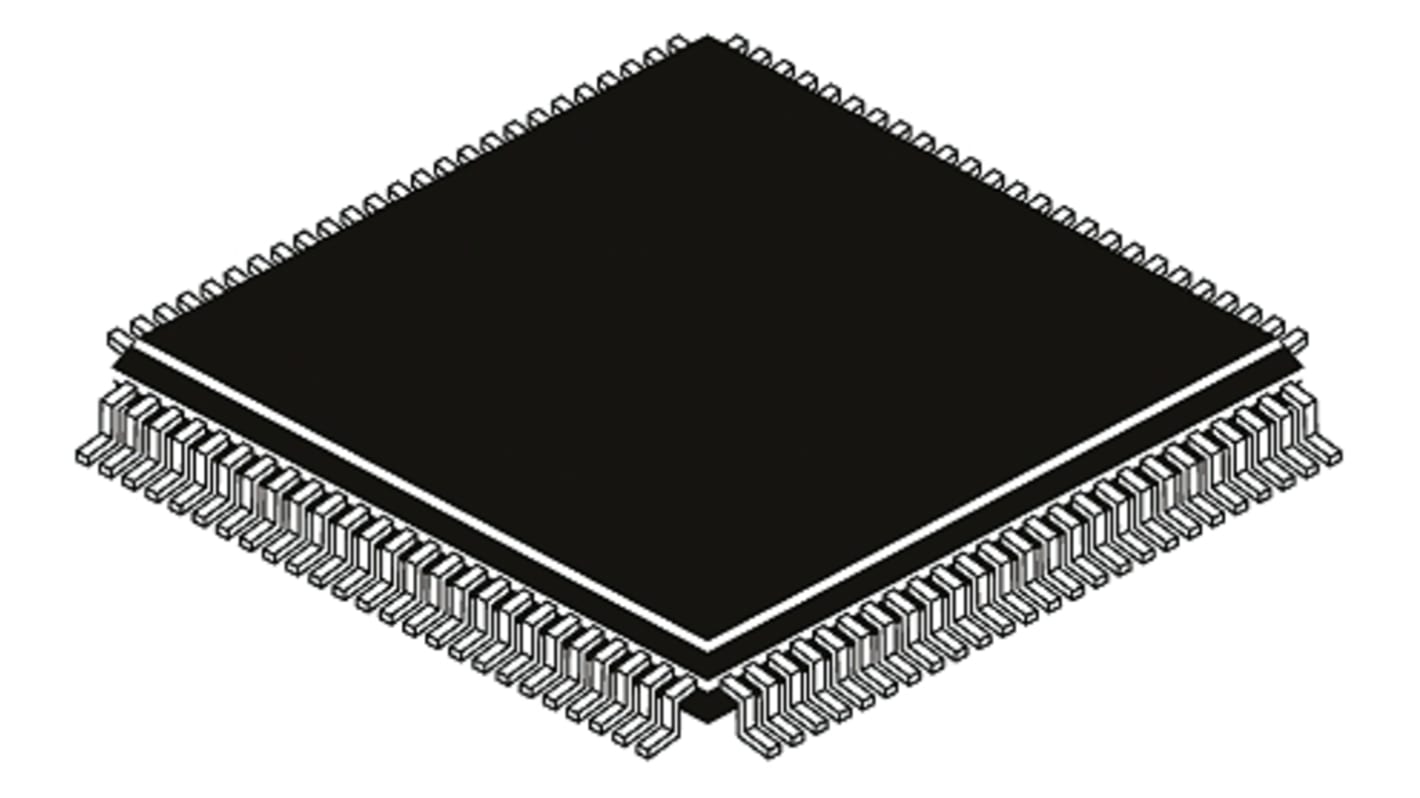

STMicroelectronics, 32bit ARM Cortex M3, STM32F Microcontroller, 120MHz, 1.024 MB Flash, 100-Pin LQFP
- RS Stock No.:
- 810-7639
- Mfr. Part No.:
- STM32F217VGT6
- Brand:
- STMicroelectronics
- RS Stock No.:
- 810-7639
- Mfr. Part No.:
- STM32F217VGT6
- Brand:
- STMicroelectronics
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Family Name | STM32F | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 100 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 1.024 MB | |
| Maximum Frequency | 120MHz | |
| RAM Size | 128 + 4 kB | |
| USB Channels | 1 x OTG | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 3 | |
| Number of I2C Channels | 3 | |
| Typical Operating Supply Voltage | 1.8 → 3.6 V | |
| Number of UART Channels | 2 | |
| Number of CAN Channels | 2 | |
| Number of USART Channels | 4 | |
| Maximum Number of Ethernet Channels | 1 | |
| ADCs | 3 (16 x 12 bit) | |
| Length | 14.2mm | |
| Pulse Width Modulation | 1 (6 x 16 bit) | |
| Dimensions | 14.2 x 14.2 x 1.45mm | |
| Instruction Set Architecture | RISC | |
| Height | 1.45mm | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 1 | |
| Number of ADC Units | 3 | |
| Maximum Operating Temperature | +85 °C | |
| Width | 14.2mm | |
| Minimum Operating Temperature | -40 °C | |
| Number of PCI Channels | 0 | |
| Program Memory Type | Flash | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Family Name STM32F | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 100 | ||
Device Core ARM Cortex M3 | ||
Data Bus Width 32bit | ||
Program Memory Size 1.024 MB | ||
Maximum Frequency 120MHz | ||
RAM Size 128 + 4 kB | ||
USB Channels 1 x OTG | ||
Number of PWM Units 1 | ||
Number of SPI Channels 3 | ||
Number of I2C Channels 3 | ||
Typical Operating Supply Voltage 1.8 → 3.6 V | ||
Number of UART Channels 2 | ||
Number of CAN Channels 2 | ||
Number of USART Channels 4 | ||
Maximum Number of Ethernet Channels 1 | ||
ADCs 3 (16 x 12 bit) | ||
Length 14.2mm | ||
Pulse Width Modulation 1 (6 x 16 bit) | ||
Dimensions 14.2 x 14.2 x 1.45mm | ||
Instruction Set Architecture RISC | ||
Height 1.45mm | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 1 | ||
Number of ADC Units 3 | ||
Maximum Operating Temperature +85 °C | ||
Width 14.2mm | ||
Minimum Operating Temperature -40 °C | ||
Number of PCI Channels 0 | ||
Program Memory Type Flash | ||
STM32F207/217, ARM® 32-Bit Cortex™-M3 Microcontrollers
The STM32 MCU processors feature 12-bit ADCs, DACs, 16-bit timers, 32-bit timers, a RTC and a true number random generator (RNG). As well as standard communication interfaces with advanced peripherals including an SDIO, an enhanced flexible static memory control (FSMC) interface and a camera interface for CMOS sensors.
SRAM: Up to 128 KB
Set of power saving modes
Two PWM timers for motor control
Different peripherals depending on the MCU
SDIO interface, Ethernet and camera interface (STM32F207xx only)
I2C, SPI, I2S, USARTs, USB OTG high-speed, USB OTG, CANs
Real time memory accelerator (ART Accelerator™)
Pin to pin compatibility with the other STM32 products
Temperature ranges: -40 to +105 °C
Excellent real-time behaviour
Oustanding power efficiency
Superior and innovative peripherals
Maximum integration
Cross family pin-to-pin, peripheral and software compatibility
