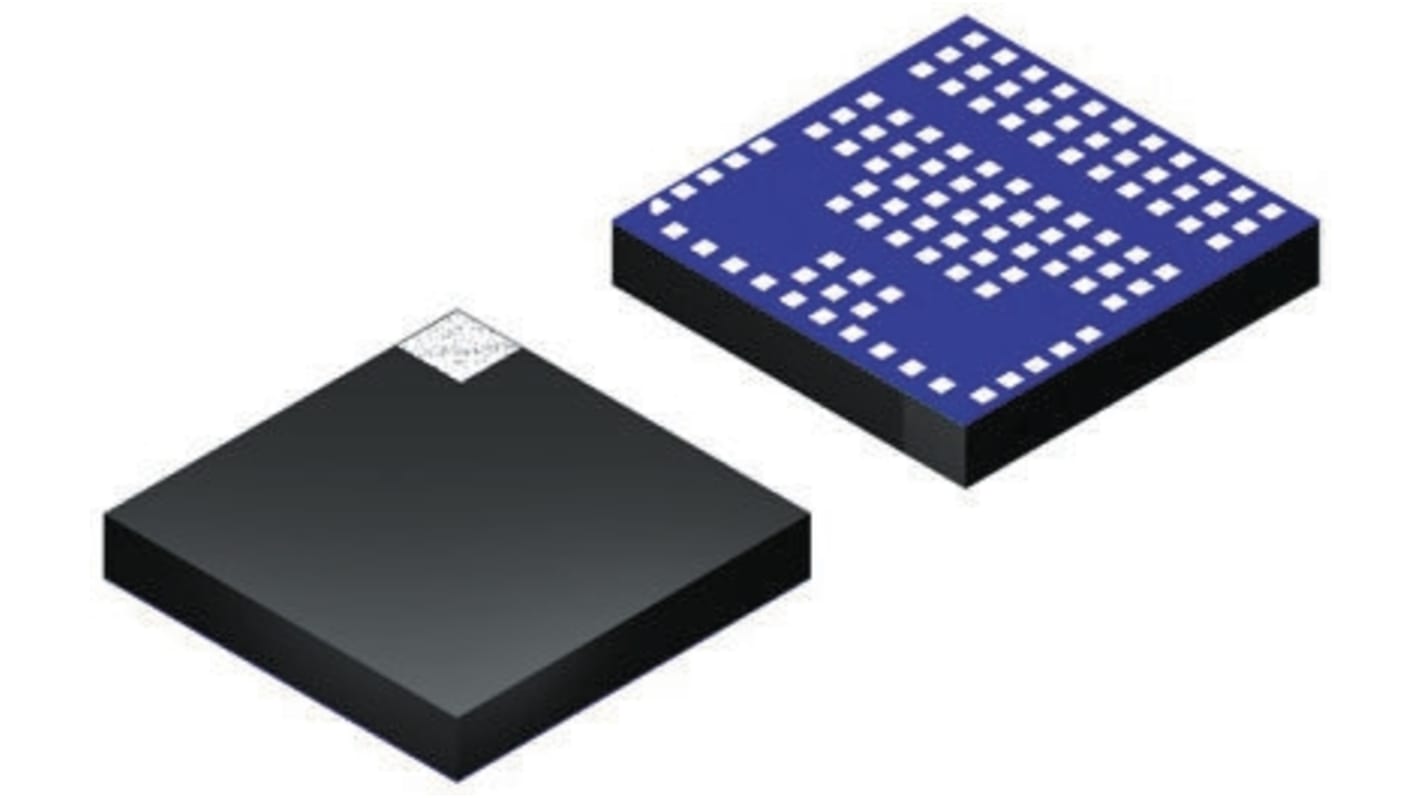

Silicon Labs, 32bit ARM Cortex M3, SiM3 Microcontroller, 80MHz, 128 kB Flash, 92-Pin LGA
- RS Stock No.:
- 761-7876
- Mfr. Part No.:
- SIM3U157-B-GM
- Brand:
- Silicon Labs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 761-7876
- Mfr. Part No.:
- SIM3U157-B-GM
- Brand:
- Silicon Labs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| Family Name | SiM3 | |
| Package Type | LGA | |
| Mounting Type | Surface Mount | |
| Pin Count | 92 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 128 kB | |
| Maximum Frequency | 80MHz | |
| RAM Size | 32 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 3 | |
| Number of UART Channels | 2 | |
| Number of USART Channels | 2 | |
| Typical Operating Supply Voltage | 1.8 → 3.6 V | |
| Number of CAN Channels | 0 | |
| Number of I2C Channels | 2 | |
| Number of ADC Units | 1 | |
| Number of PCI Channels | 0 | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Width | 7mm | |
| Dimensions | 7 x 7 x 0.94mm | |
| Pulse Width Modulation | 2 x 16 bit (CCP) | |
| Program Memory Type | Flash | |
| Maximum Operating Temperature | +85 °C | |
| Length | 7mm | |
| ADCs | 2 x 12 bit | |
| Minimum Operating Temperature | -40 °C | |
| Height | 0.94mm | |
Select all | ||
|---|---|---|
Brand Silicon Labs | ||
Family Name SiM3 | ||
Package Type LGA | ||
Mounting Type Surface Mount | ||
Pin Count 92 | ||
Device Core ARM Cortex M3 | ||
Data Bus Width 32bit | ||
Program Memory Size 128 kB | ||
Maximum Frequency 80MHz | ||
RAM Size 32 kB | ||
USB Channels 1 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 3 | ||
Number of UART Channels 2 | ||
Number of USART Channels 2 | ||
Typical Operating Supply Voltage 1.8 → 3.6 V | ||
Number of CAN Channels 0 | ||
Number of I2C Channels 2 | ||
Number of ADC Units 1 | ||
Number of PCI Channels 0 | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Width 7mm | ||
Dimensions 7 x 7 x 0.94mm | ||
Pulse Width Modulation 2 x 16 bit (CCP) | ||
Program Memory Type Flash | ||
Maximum Operating Temperature +85 °C | ||
Length 7mm | ||
ADCs 2 x 12 bit | ||
Minimum Operating Temperature -40 °C | ||
Height 0.94mm | ||
- COO (Country of Origin):
- US
Cortex-M3 Family Microcontrollers, Silicon Labs
The SiM3L1xx low-power 32-bit microcontroller (MCU) product line is the latest addition to the Precision32™ family of ARM Cortex-M3 microcontrollers. These MCUs are the lowest power 32-bit devices on the market and are well suited for battery-operated and power-sensitive applications. The SiM3L1xx MCUs feature significant peripheral and architectural innovations including an integrated dc-dc converter that helps save power in active mode as well as a redesigned LCD controller that can reduce the power consumed by the LCD display. Autonomous peripherals off-load the CPU and further decrease processing time and power. Full RAM and state retention enables instantaneous code execution after waking up from sleep. Flash memory sizes range from 32 to 256kB, and the MCUs come in packages as small as 5.5 x 5.5mm. Enhanced Precision32 tools can simplify the development process by estimating power consumption and providing configuration guidance to achieve the lowest power.
