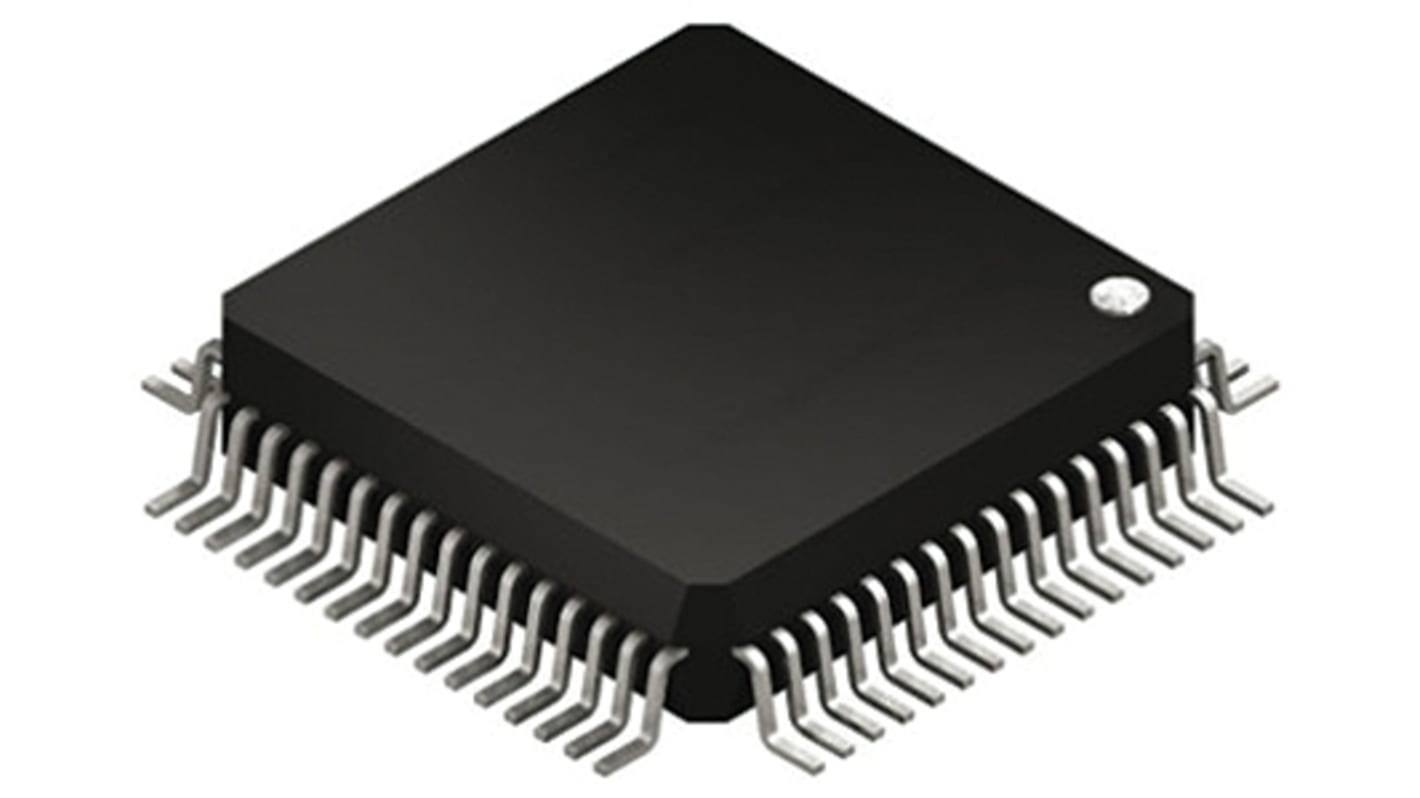

Texas Instruments, 16bit MSP430, MSP430 Microcontroller, 16MHz, 256 B, 48 kB Flash, 64-Pin LQFP
- RS Stock No.:
- 709-3927
- Mfr. Part No.:
- MSP430F248TPM
- Brand:
- Texas Instruments
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 709-3927
- Mfr. Part No.:
- MSP430F248TPM
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Family Name | MSP430 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | MSP430 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 256 B, 48 kB | |
| Maximum Frequency | 16MHz | |
| RAM Size | 4 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 2 | |
| Number of SPI Channels | 4 | |
| Number of CAN Channels | 0 | |
| Number of I2C Channels | 2 | |
| Number of UART Channels | 2 | |
| Typical Operating Supply Voltage | 1.8 → 3.6 V | |
| Number of USART Channels | 0 | |
| Number of LIN Channels | 2 | |
| Number of Ethernet Channels | 0 | |
| Dimensions | 10.2 x 10.2 x 1.45mm | |
| Height | 1.45mm | |
| Pulse Width Modulation | 3 x 16 bit, 7 x 16 bit | |
| Instruction Set Architecture | RISC | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +105 °C | |
| Width | 10.2mm | |
| Length | 10.2mm | |
| Number of PCI Channels | 0 | |
| Program Memory Type | Flash | |
| Number of ADC Units | 1 | |
| ADCs | 8 x 12 bit | |
