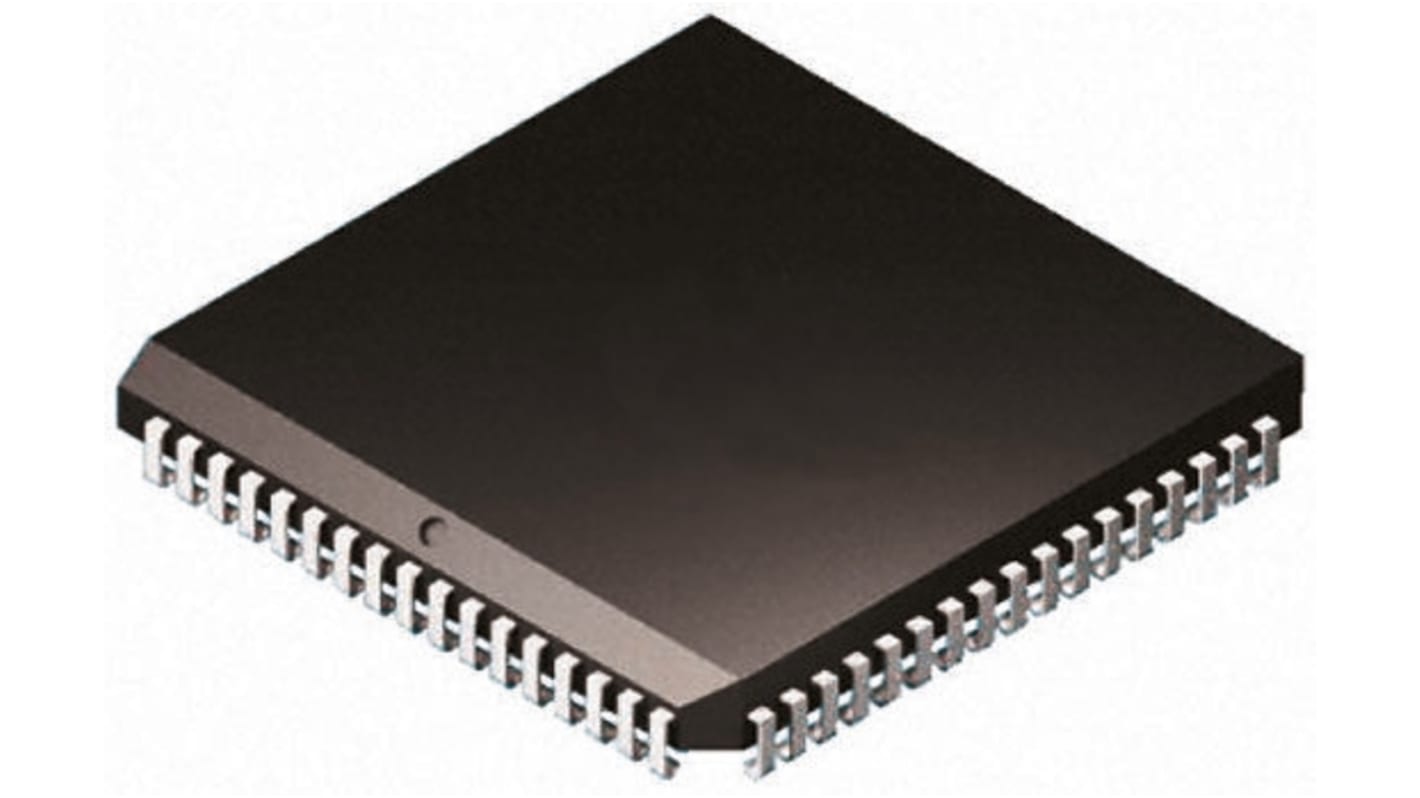

NXP MCHC11F1CFNE4, 8bit HC11 Microcontroller, M68HC11, 3MHz, 512 B EEPROM, 68-Pin PLCC
RS Stock No.:
539-0263
Mfr. Part No.:
MCHC11F1CFNE4
Brand:
NXP
View this category
Discontinued product
RS Stock No.:
539-0263
Mfr. Part No.:
MCHC11F1CFNE4
Brand:
NXP
Technical Reference
Legislation and Compliance
Product Details
Specifications
M68HC11E Family Data Sheet
RoHS Certificate of Compliance
Statement of conformity
68HC/HS Family Microcontrollers
Attribute
Value
Family Name
M68HC11
Package Type
PLCC
Mounting Type
Surface Mount
Pin Count
68
Device Core
HC11
Data Bus Width
8bit
Program Memory Size
512 B
Maximum Frequency
3MHz
RAM Size
1.024 kB
USB Channels
0
Number of PWM Units
1 x 16 bit
Number of SPI Channels
1
Number of USART Channels
0
Number of UART Channels
1
Number of I2C Channels
0
Number of CAN Channels
0
Width
0.956in
Height
4.06mm
Minimum Operating Temperature
-40 °C
Pulse Width Modulation
3 x 16 bit, 4 x 16 bit
ADCs
8 x 8 bit
Length
24.28mm
Maximum Operating Temperature
+85 °C
Number of LIN Channels
0
Number of ADC Units
1
Instruction Set Architecture
CISC
Number of PCI Channels
0
Number of Ethernet Channels
0
Dimensions
0.956 x 0.956 x 0.16in
Program Memory Type
EEPROM
