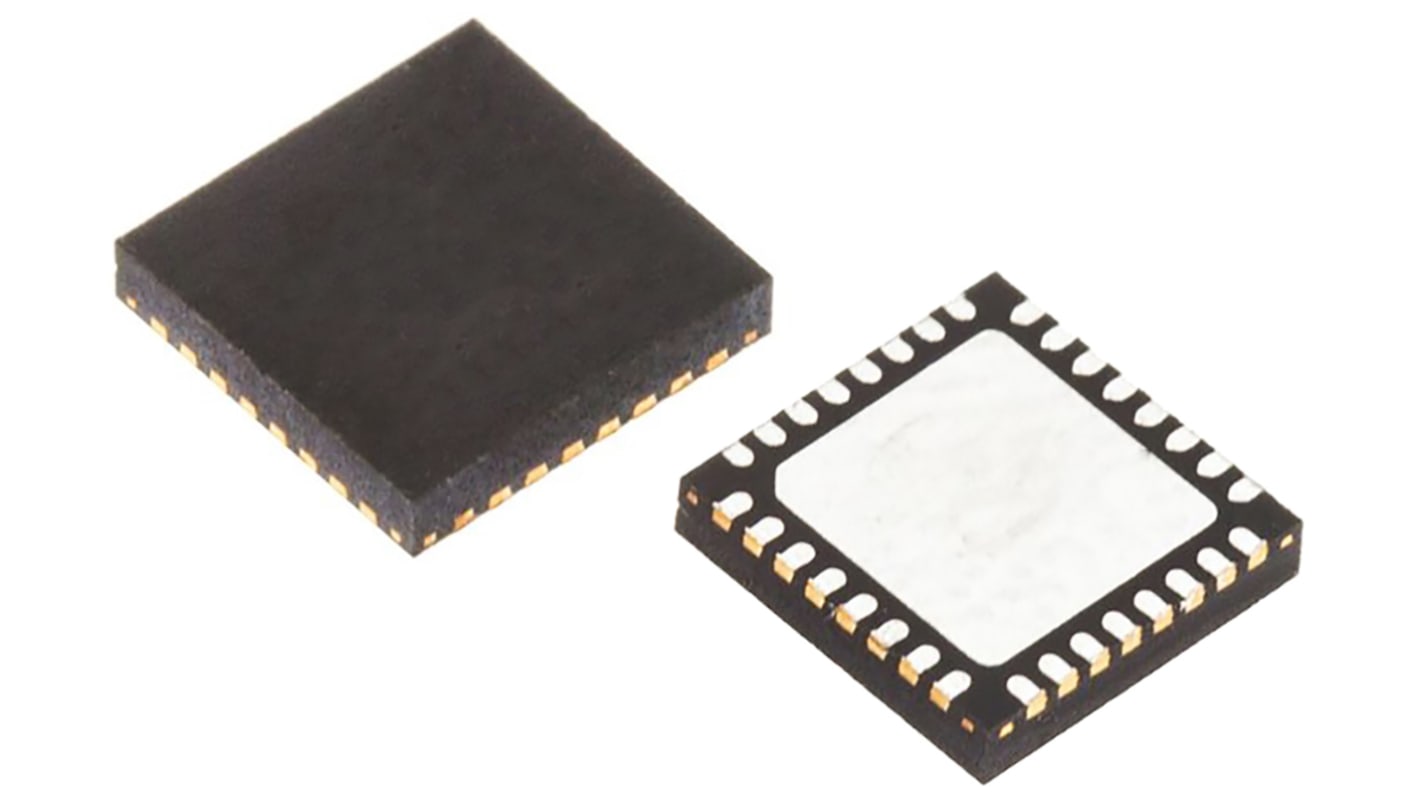

Cypress Semiconductor CY8C21434-24LQXI, 8bit Microcontroller, CY8C21434, 24MHz, 8 kB Flash, 32-Pin QFN
- RS Stock No.:
- 194-9101
- Mfr. Part No.:
- CY8C21434-24LQXI
- Brand:
- Cypress Semiconductor
Subtotal (1 tray of 490 units)*
£2,121.21
(exc. VAT)
£2,545.55
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tray* |
|---|---|---|
| 490 + | £4.329 | £2,121.21 |
*price indicative
- RS Stock No.:
- 194-9101
- Mfr. Part No.:
- CY8C21434-24LQXI
- Brand:
- Cypress Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cypress Semiconductor | |
| Family Name | CY8C21434 | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 32 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 8 kB | |
| Maximum Frequency | 24MHz | |
| RAM Size | 512 B | |
| USB Channels | 1 | |
| Number of PWM Units | 4 x 8/16/24/32 bit | |
| Number of SPI Channels | 1 | |
| Number of UART Channels | 1 | |
| Number of I2C Channels | 1 | |
| Typical Operating Supply Voltage | 2.4 → 5.25 V | |
| Program Memory Type | Flash | |
| Pulse Width Modulation | 1 (1 x 16 bit), 1 (1 x 24 bit), 1 (1 x 32 bit), 1 (1 x 8 bit) | |
| Instruction Set Architecture | Harvard | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Length | 5mm | |
| ADCs | 28 x 10 bit | |
| Data Rate | 400kbit/s | |
| Width | 5mm | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 5 x 5 x 0.85mm | |
| Height | 0.85mm | |
| Select all | ||
|---|---|---|
Brand Cypress Semiconductor | ||
Family Name CY8C21434 | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Data Bus Width 8bit | ||
Program Memory Size 8 kB | ||
Maximum Frequency 24MHz | ||
RAM Size 512 B | ||
USB Channels 1 | ||
Number of PWM Units 4 x 8/16/24/32 bit | ||
Number of SPI Channels 1 | ||
Number of UART Channels 1 | ||
Number of I2C Channels 1 | ||
Typical Operating Supply Voltage 2.4 → 5.25 V | ||
Program Memory Type Flash | ||
Pulse Width Modulation 1 (1 x 16 bit), 1 (1 x 24 bit), 1 (1 x 32 bit), 1 (1 x 8 bit) | ||
Instruction Set Architecture Harvard | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 1 | ||
Length 5mm | ||
ADCs 28 x 10 bit | ||
Data Rate 400kbit/s | ||
Width 5mm | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 5 x 5 x 0.85mm | ||
Height 0.85mm | ||
The PSoC family consists of many devices with on-chip controllers. These devices are designed to replace multiple traditional MCU-based system components with one low-cost single-chip programmable component. A PSoC device includes configurable blocks of analogue and digital logic, and programmable interconnect. This architecture makes it possible for you to create customized peripheral configurations, to match the requirements of each individual application. Additionally, a fast central processing unit (CPU), flash program memory, SRAM data memory, and configurable I/O are included in a range of convenient pinouts. The PSoC architecture, shown , consists of four main areas: the core, the system resources, the digital system, and the analogue system. Configurable global bus resources allow combining all of the device resources into a complete custom system. Each CY8C21x34 PSoC device includes four digital blocks and four analogue blocks. Depending on the PSoC package, up to 28 GPIOs are also included. The GPIOs provide access to the global digital and analogue interconnects.
