- RS Stock No.:
- 177-3833
- Mfr. Part No.:
- PIC18F6410-I/PT
- Brand:
- Microchip
- RS Stock No.:
- 177-3833
- Mfr. Part No.:
- PIC18F6410-I/PT
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

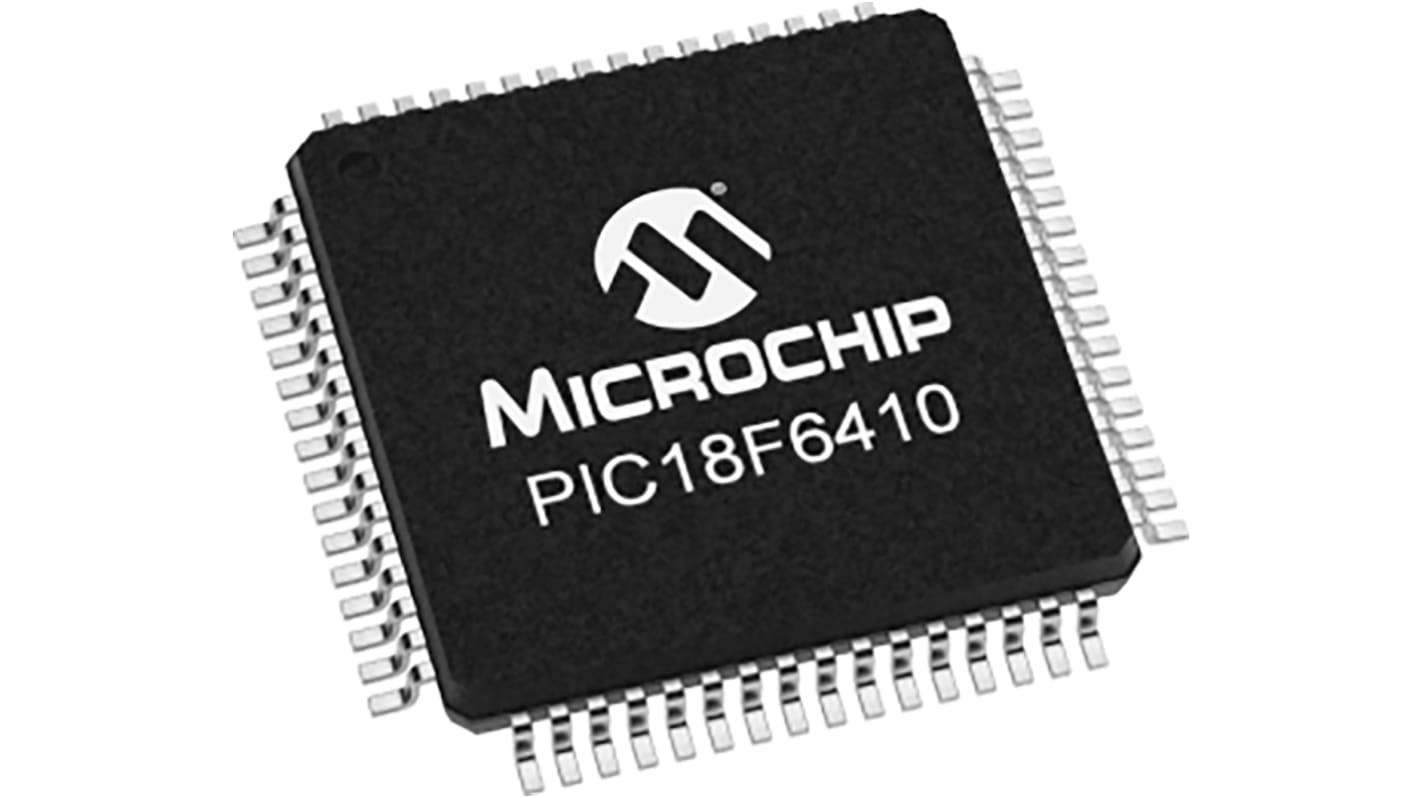

PIC18F MicroController: 16K bytes of Flash and 768 bytes of RAM. The PIC18F6410 features make it ideal for manufacturing equipment, instrumentation and monitoring, data acquisition, power conditioning, environmental monitoring, telecom and consumer applications.
CPU:
Up to 10 MIPS Performance at 3V
C compiler optimized RISC architecture
8x8 Single Cycle Hardware Multiply
System:
Internal oscillator support-31kHz to 8MHz with 4xPLL
Fail-Safe Clock Monitor- allows safe shutdown if clock fails
Watchdog Timer with separate RC oscillator
Wide operating Voltage range, 2.0V to 5.5V
nanoWatt Power Managed Modes
Run, Idle and SLEEP modes
Analog Features:
10-bit ADC, 12 channels, 100K samples per second
Programmable Low Voltage Detection Module
Programmable Brown-out-Reset Module
Two Analog Comparators
Peripherals:
Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode
EUSART module including LIN bus support
Four Timer modules
Three CPP
Up to 10 MIPS Performance at 3V
C compiler optimized RISC architecture
8x8 Single Cycle Hardware Multiply
System:
Internal oscillator support-31kHz to 8MHz with 4xPLL
Fail-Safe Clock Monitor- allows safe shutdown if clock fails
Watchdog Timer with separate RC oscillator
Wide operating Voltage range, 2.0V to 5.5V
nanoWatt Power Managed Modes
Run, Idle and SLEEP modes
Analog Features:
10-bit ADC, 12 channels, 100K samples per second
Programmable Low Voltage Detection Module
Programmable Brown-out-Reset Module
Two Analog Comparators
Peripherals:
Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode
EUSART module including LIN bus support
Four Timer modules
Three CPP
Specifications
Attribute | Value |
---|---|
Family Name | PIC18F |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 64 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 16 kB |
Maximum Frequency | 8MHz |
RAM Size | 768 B |
USB Channels | 0 |
Number of PWM Units | 1 x 10 bit |
Number of SPI Channels | 1 |
Number of CAN Channels | 0 |
Number of USART Channels | 1 |
Typical Operating Supply Voltage | 2 → 5.5 V |
Number of UART Channels | 2 |
Number of I2C Channels | 1 |
Maximum Number of Ethernet Channels | 0 |
Minimum Operating Temperature | -40 °C |
Number of PCI Channels | 0 |
Dimensions | 10 x 10 x 1.05mm |
Pulse Width Modulation | 1 (2 x 10 bit) |
Program Memory Type | Flash |
Number of Ethernet Channels | 0 |
Height | 1.05mm |
Number of LIN Channels | 1 |
Maximum Operating Temperature | +85 °C |
Length | 10mm |
ADCs | 12 x 10 bit |
Width | 10mm |
Instruction Set Architecture | Harvard |
Number of ADC Units | 1 |
