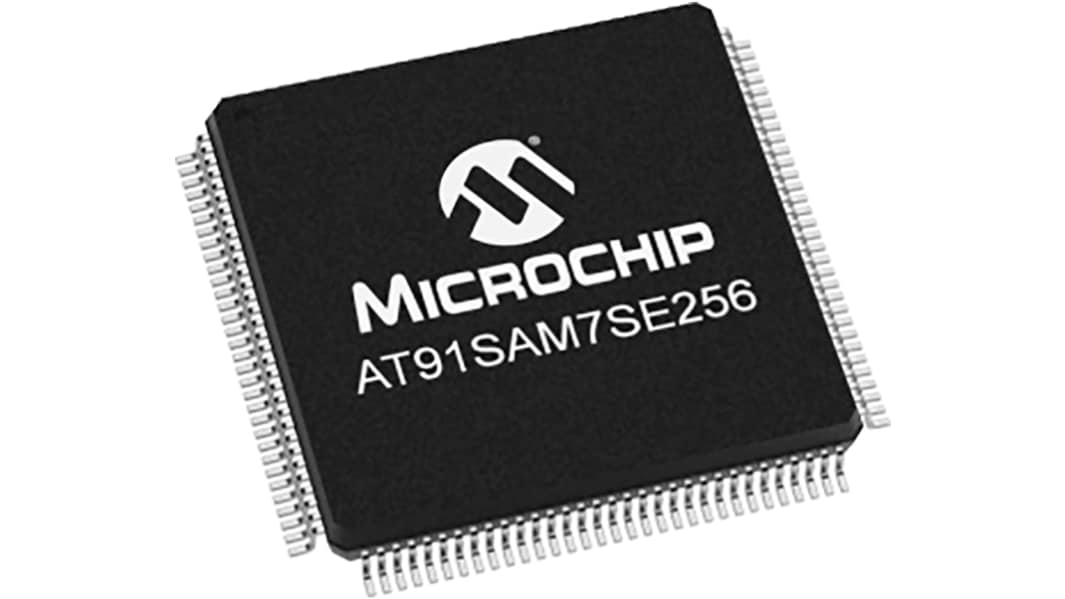

Microchip AT91SAM7SE256B-AU, 32bit ARM Microcontroller, AT91, 48MHz, 256 kB Flash, 128-Pin LQFP
- RS Stock No.:
- 177-3657
- Mfr. Part No.:
- AT91SAM7SE256B-AU
- Brand:
- Microchip
1 / 1
Discontinued product
- RS Stock No.:
- 177-3657
- Mfr. Part No.:
- AT91SAM7SE256B-AU
- Brand:
- Microchip
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | AT91 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 128 | |
| Device Core | ARM | |
| Data Bus Width | 32bit | |
| Program Memory Size | 256 kB | |
| Maximum Frequency | 48MHz | |
| RAM Size | 32 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 1 | |
| Number of USART Channels | 2 | |
| Number of UART Channels | 2 | |
| Typical Operating Supply Voltage | 3.6 (Maximum) V | |
| Number of CAN Channels | 0 | |
| Number of I2C Channels | 1 | |
| Pulse Width Modulation | 1 (4 x 16 bit) | |
| Dimensions | 20 x 14 x 1.45mm | |
| Width | 14mm | |
| Height | 1.45mm | |
| ADCs | 8 x 10 bit | |
| Length | 20mm | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Instruction Set Architecture | RISC | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Number of Ethernet Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
