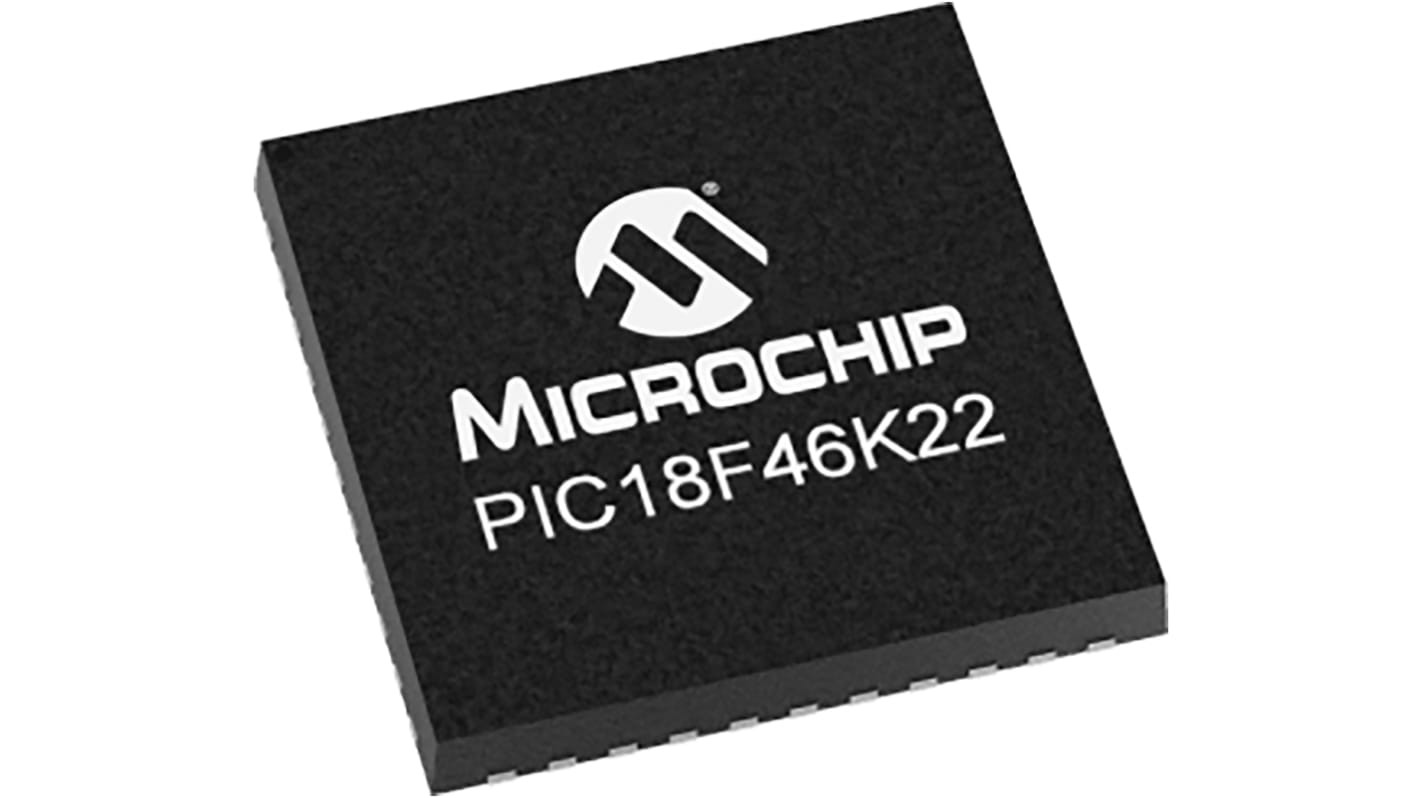

Microchip PIC18LF46K22-I/MV, 8bit PIC Microcontroller, PIC18LF, 64MHz, 32 kB Flash, 40-Pin UQFN
- RS Stock No.:
- 177-2210
- Mfr. Part No.:
- PIC18LF46K22-I/MV
- Brand:
- Microchip
Available to back order for despatch when stock is available
Price Each (In a Tube of 73)
£1.461
(exc. VAT)
£1.753
(inc. VAT)
Units | Per unit | Per Tube* |
|---|---|---|
| 73 + | £1.461 | £106.653 |
*price indicative
- RS Stock No.:
- 177-2210
- Mfr. Part No.:
- PIC18LF46K22-I/MV
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
This family offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price – with the addition of high-endurance, Flash program memory. On top of these features, the PIC18(L)F2X/4XK22 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance, power sensitive applications.
High Performance RISC CPU:
C Compiler optimized architecture/instruction set
Data EEPROM to 1024 bytes
nous Asynchronous Receiver Transmitter modules (EUSART):
Supports RS-232, RS-485 and LIN 2.0
Auto-Baud Detect
Auto Wake-up on Start bit
C Compiler optimized architecture/instruction set
Data EEPROM to 1024 bytes
nous Asynchronous Receiver Transmitter modules (EUSART):
Supports RS-232, RS-485 and LIN 2.0
Auto-Baud Detect
Auto Wake-up on Start bit
Specifications
Attribute | Value |
|---|---|
| Family Name | PIC18LF |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 40 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 3.968 kB |
| Number of PWM Units | 1 x 10 bit |
| Number of SPI Channels | 2 |
| Number of UART Channels | 2 |
| Number of I2C Channels | 2 |
| Number of USART Channels | 2 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| ADCs | 30 x 10 bit |
| Height | 0.5mm |
| Width | 5mm |
| Length | 5mm |
| Dimensions | 5 x 5 x 0.5mm |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Minimum Operating Temperature | -40 °C |
