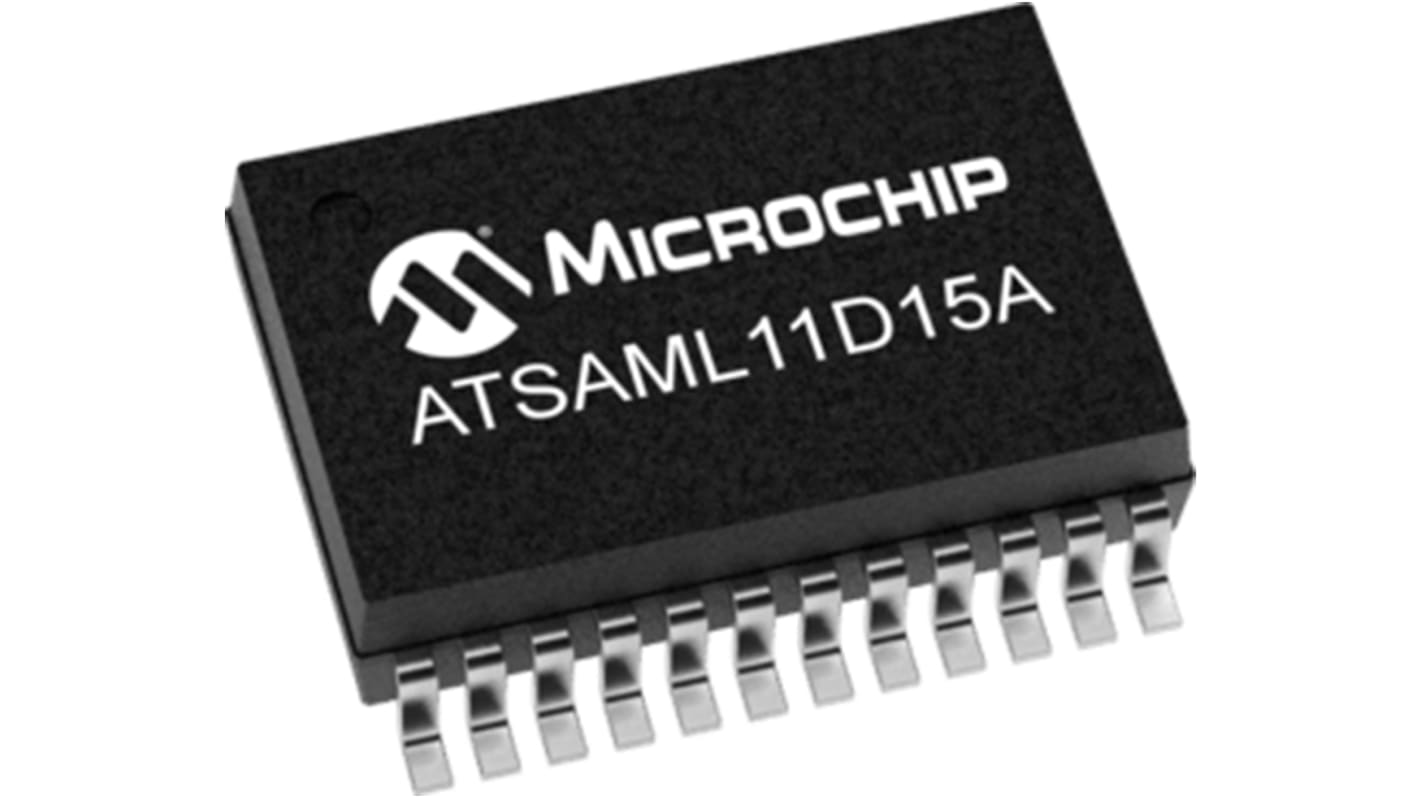

Microchip, 32bit, SAML11 Microcontroller, 32MHz, 32 kB Flash, 24-Pin SSOP

View all Microcontrollers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
175-9419
Mfr. Part No.:
ATSAML11D15A-YU
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

SAML11

Package Type

SSOP

Mounting Type

Surface Mount

Pin Count

24

Data Bus Width

32bit

Program Memory Size

32 kB

Maximum Frequency

32MHz

RAM Size

8 kB

USB Channels

0

Number of PWM Units

0

Number of SPI Channels

2

Number of USART Channels

1

Typical Operating Supply Voltage

1.62 → 3.63 V

Number of I2C Channels

2

Number of UART Channels

0

Number of CAN Channels

0

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

Program Memory Type

Flash

Number of Ethernet Channels

0

Number of LIN Channels

1

Maximum Number of Ethernet Channels

0

ADCs

5 x 12 bit

Length

8.5mm

Height

1.85mm

Number of ADC Units

1

Width

5.6mm

Automotive Standard

AEC-Q100

Dimensions

8.5 x 5.6 x 1.85mm

Number of PCI Channels

0

COO (Country of Origin):
US
Power Arm® Cortex®-M23 featuring chip-level security and ARM® TrustZone® Technology, consuming less than 25uA/MHz in active mode and less than 100 nA in sleep mode. It features secure key storage, chip-level tamper resistance, crypto accelerators, secure boot, secure bootloader, enhanced peripheral touch controller, advanced analog, event system and Sleep Walking peripherals.

Processor:
ARM Cortex®-M23
32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
Single-cycle hardware multiplier
Hardware divider
Nested Vector Interrupt Controller (NVIC)
Memory Protection Unit (MPU)
Operating Voltage Range:
1.62V to 3.63V
